Breton - Matrix WM 800 K25PT-MIL-BRE-2003-00001

Name: Breton Matrix WM 800 K25
Brand: Breton
SKU: PT-MIL-BRE-2003-00001
Price: 35000 EUR
Availability: InStock

35,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Breton Matrix WM 800 K25 For Sale | gindumac.com

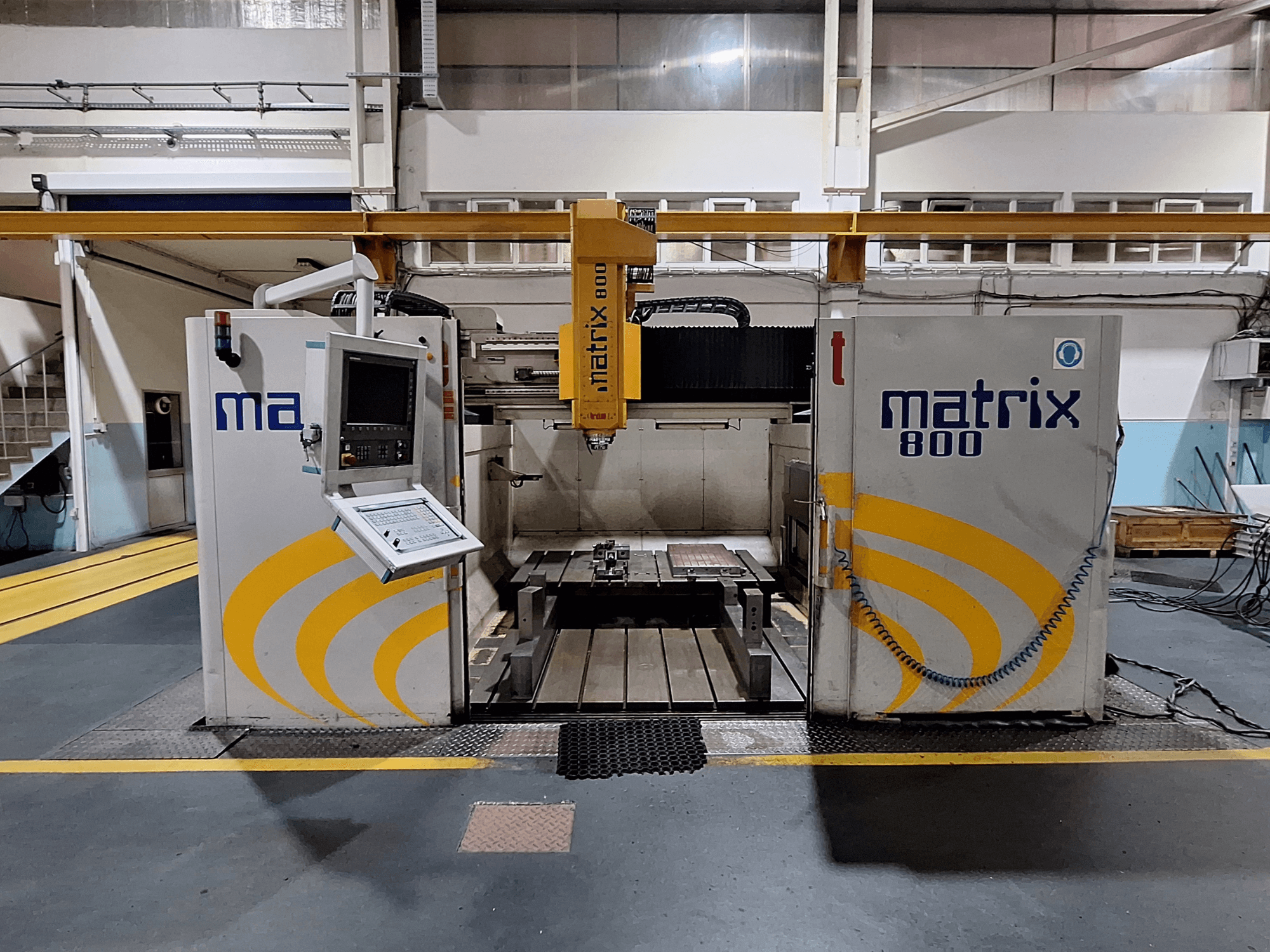

This 5-axis Breton Matrix WM 800 K25 was manufactured in 2003. It features a substantial table dimension of 2000 x 3000 mm and impressive axes strokes of 2000 mm in X, 2500 mm in Y, and 800 mm in Z. The machine has a maximum rotation speed of 24000 rpm and a rapid forward speed of 40 m/min. If you are looking to get high-quality milling capabilities, consider the Breton Matrix WM 800 K25 gantry milling machine we have for sale. Contact us for further details.

Overview

brand: Breton
year: 2003
MODEL: Matrix WM 800 K25
application type: Milling
Location: Portugal
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Breton Matrix WM 800 K25

Control Unit

Control Brand: HEIDENHAIN
Control Model: k25

Dimensions

Machine Height: 4789 mm
Machine Length: 4280 mm
Machine Weight: 30000 kg
Machine Width: 4300 mm
Table Load: 10000 kg

Movement

Number of Axes: 3
X-axis Travel: 2000 mm
Y-axis Travel: 2500 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 45 kW
Spindle Speed: 24000 RPM

Additional Information

Table dimensions (X/Y): 2000 x 3000 mm
Rapid traverse (X/Y/Z): 40 / 40 / 20 m/min
Power: 45 / 20 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
