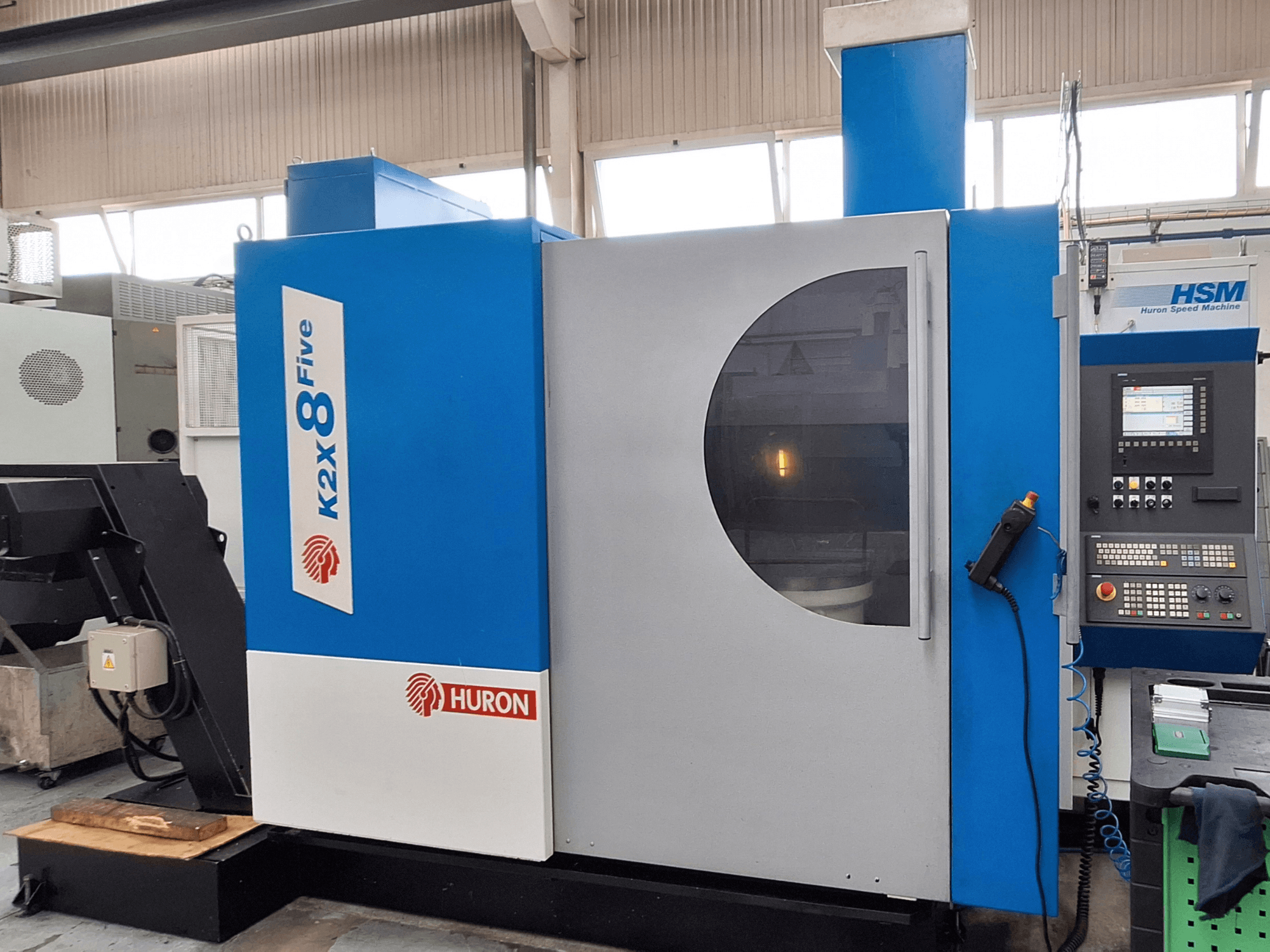

This 5-axis Huron K2X 8 Five gantry milling machine was manufactured in 2006. It features an impressive X-axis travel of 2,000 mm, Y-axis travel of 1,600 mm, and Z-axis travel of 1,100 mm. The machine includes a robust table size of 2,300 × 1,500 mm and a maximum table load of 4,000 kg. If you are looking to get high-quality milling capabilities, consider the Huron K2X 8 Five machine we have for sale. Contact us for further details.
Overview
- brand: Huron
- year: 2006
- MODEL: K2X 8 Five
- application type: Milling
- Location: Portugal
- machine type: Gantry Milling Machine
Technical Information - Huron K2X 8 Five
Dimensions
- Table Load: 4000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 2000 mm
- Y-axis Travel: 1600 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Spindle Power: 30 kW
- Spindle Speed: 18000 RPM
- Tool Stations: 40
Additional Information
Simultaneous 5-axis machining
Rotary axis (B): ±110°
Rotary table axis (C): 360° continuous
Table size: 2,300 × 1,500 mm
Spindle taper: HSK-A63
Through-spindle coolant
Additional equipment
Chip conveyor
Portable MPG handwheel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
