➤ Used HAAS GR-712 - Gantry Mill For Sale | gindumac.com

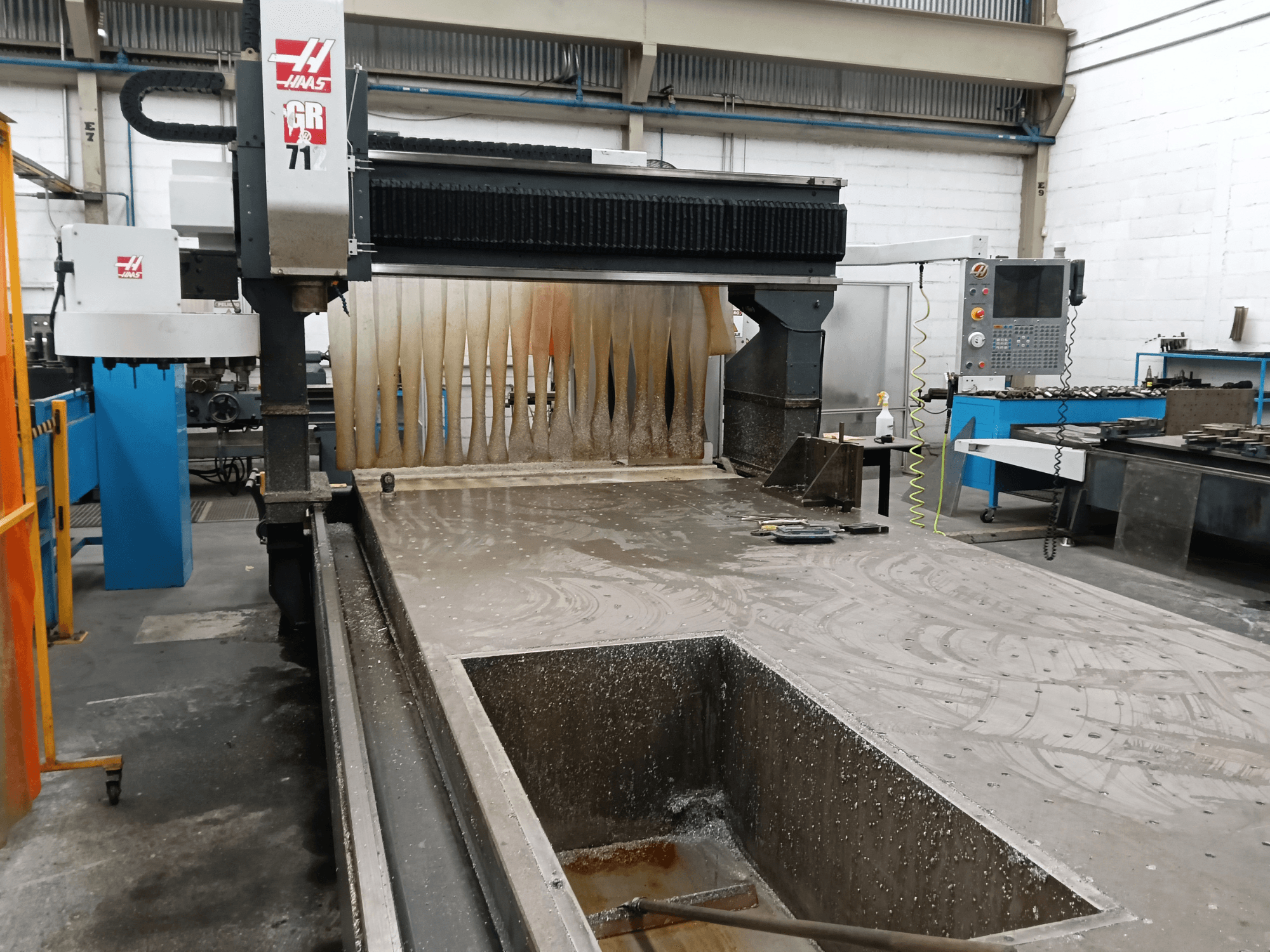

This 3-axis HAAS GR-712 was manufactured in 2010. It features an impressive X-axis travel of 3,683 mm and Y-axis travel of 2,159 mm, providing a robust working area with table dimensions of 3,658 x 1,829 mm. The machine is equipped with a maximum spindle speed of 10,000 rpm and an ATC capacity of 20 stations. If you are looking to get high-quality milling capabilities, consider the HAAS GR-712 gantry milling machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2010
MODEL: GR-712
application type: Milling
Location: Mexico
machine type: Gantry Milling Machine

Technical Information - HAAS GR-712

Dimensions

Machine Weight: 6804 kg
Table Load: 2772 kg

Movement

Number of Axes: 3
X-axis Travel: 3683 mm
Y-axis Travel: 2159 mm
Z-axis Travel: 610 mm

Technical Specification

Spindle Power: 11.2 kW
Spindle Speed: 10000 RPM
Tool Stations: 20

Additional Information

Distance between columns: 2,184 mm (86")
Table dimensions: 3,658 x 1,829 mm (144" x 72")
Table material: 25 mm (1") thick aluminum
Max torque: 23 Nm @ 4,600 rpm
Spindle taper: CT 40
ATC capacity: 20 stations (umbrella type)
Max tool diameter: 89 mm (3.5")
Rapids (X/Y/Z): 20.3 / 53.3 / 27.9 m/min (800 / 2,100 / 1,100 ipm)
Max cutting feedrate: 20.3 m/min (800 ipm)
CNC control: Haas CNC Control
Electrical requirements: 440 VAC

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
