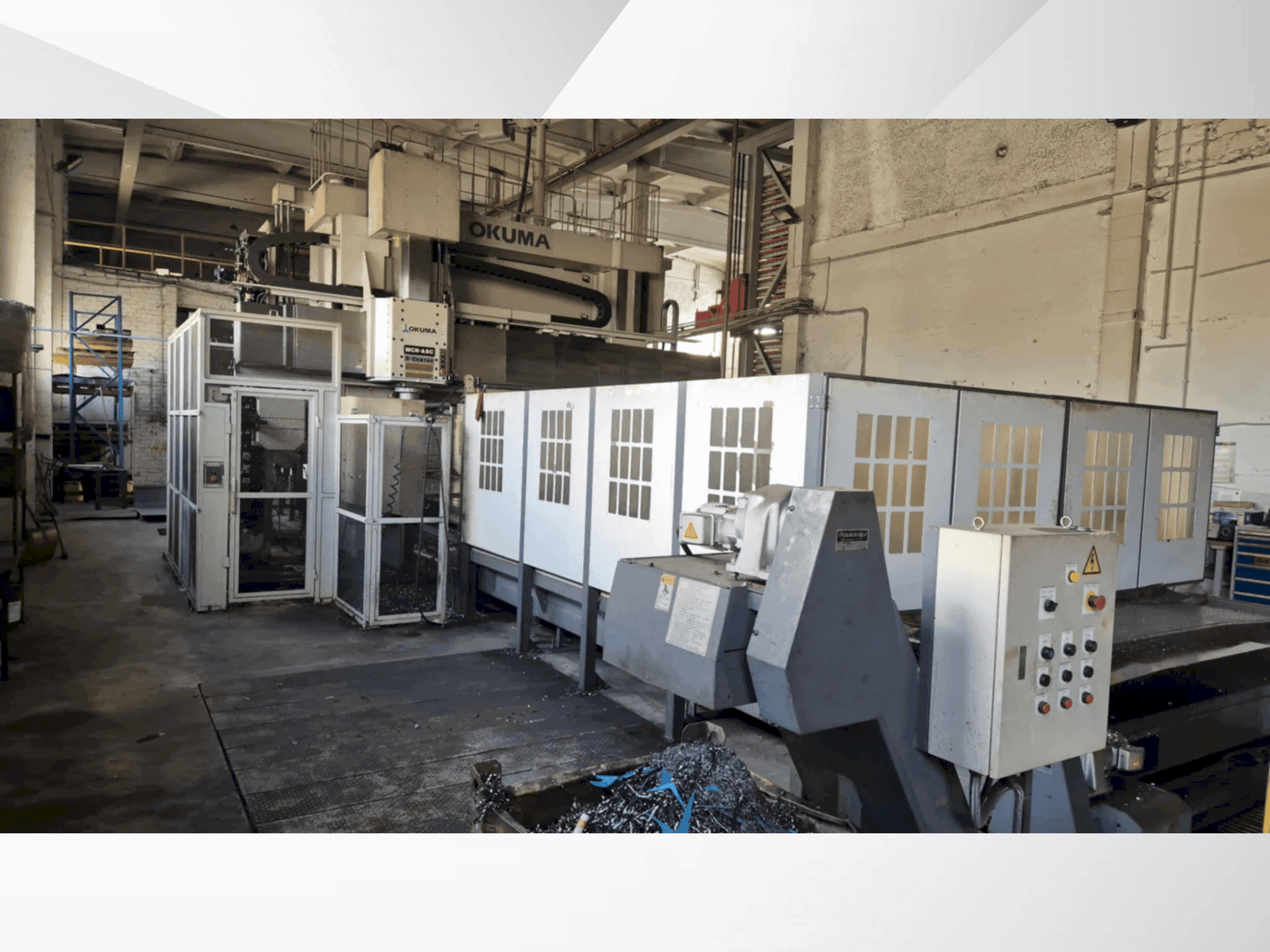

Okuma - MCR-A5C30x65LT-MIL-OKU-2013-00001

Machine Benefits

Technical Machine Benefits

• Dimensions of machine (lxwxh): 2500 mm x 6600 mm x 6350 mm / weight (kg): 59000 kg
• Max workpiece width: 2540 mm / max workpiece length: 5540 mm
• Table size (width × length): 2500 mm × 6300 mm /max load on table: 30000 kg table height from floor: 850 mm /effective width between columns: 3050 mm/ t-slot (width × number): 24h7 × 13
• Cutting feed rate: 1 to 10000 mm/min/ rapid feed rate: 20000 mm/min/ table movement x-axis: 6500 mm /x-axis travel: 6500 mm /y-axis travel: 3500 mm/ z-axis travel: 650 mm
• Tool holder: bt50 + masz type/ tool storage capacity: 50 tools /max tool length: 300 mm
• Power supply: 400v, 3 /phases, 50hz rated capacity: 513 kva /full load current: 741 a /peak current: 117/138 a /short circuit current: 18 ka
• Spindle diameter: 100 mm /spindle speed: 30 to 4000 min⁻¹
• Large table size suitable for heavy loads. /extensive tool storage capacity. /high rapid feed rate for efficient operations.
