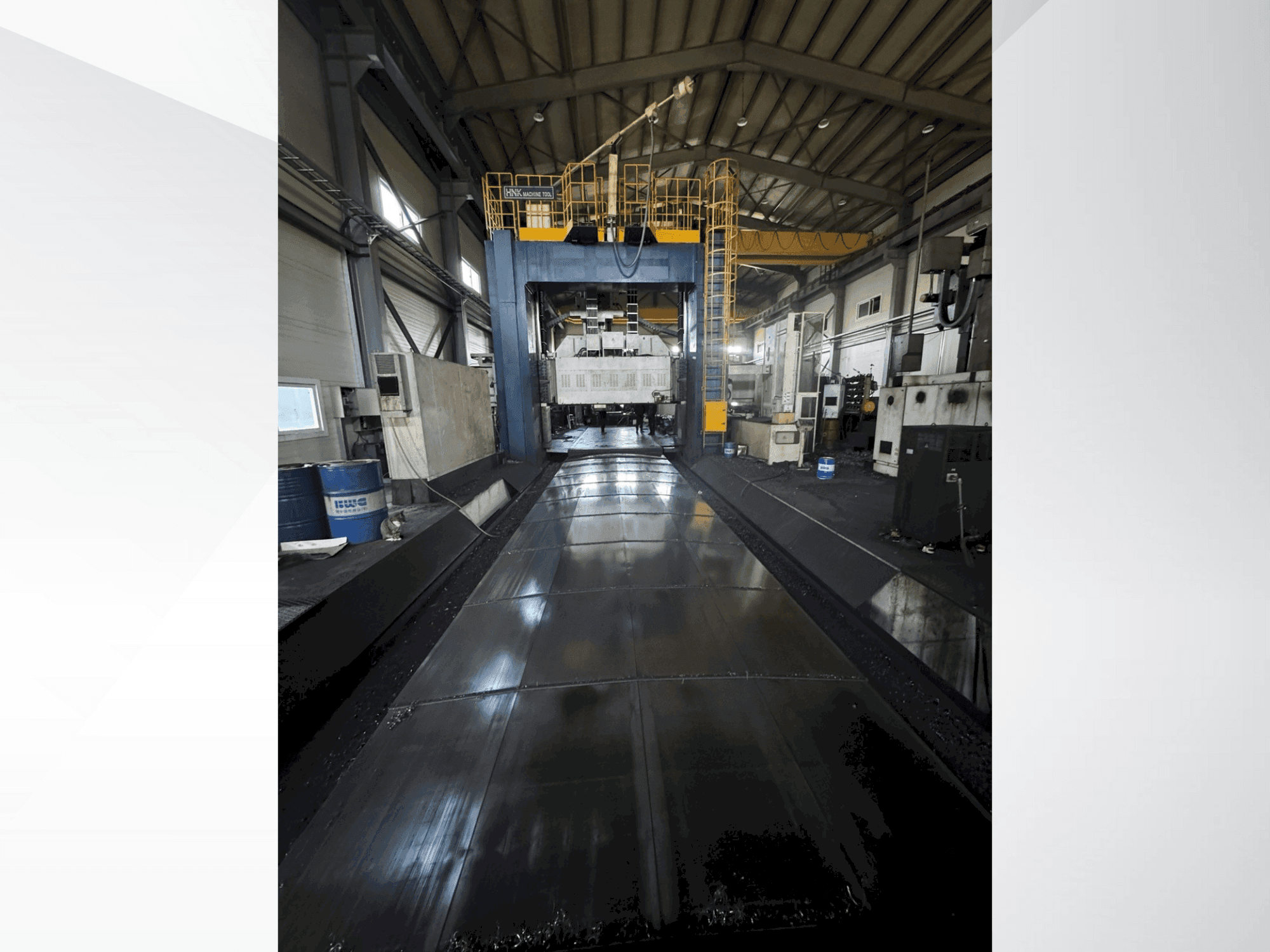

This 5-axis HNK HPM 30M gantry milling machine was manufactured in 2014. Ideal for complex and precise milling tasks, it offers enhanced flexibility and accuracy. Consider the opportunity to buy this HNK HPM 30M gantry milling machine. Contact us for more information about this machine.
Overview
- brand: HNK
- year: 2014
- MODEL: HPM 30M
- application type: Milling
- Location: South Korea
- machine type: Gantry Milling Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - HNK HPM 30M
General Data
- Measurements width: 11484 mm
- Measurements depth: 36500 mm
- Measurements height: 9100 mm
- Machine weight: 172000 kg
Control Unit
- Brand: FANUC
- Model: 31i B
Main drive
- Spindle speed range: 2500 RPM 1/MIN
- Spindle motor power: 37 kW
- Tool taper: BT-50
Media
- Chip conveyor: Yes
Additional Equipment
- - Auto Tool Changer (ATC): 90 Tools / Auto Angle-Head Changer (AAC): 2 Units
- - (2) AAC Units: (1) Extension Head (L = 600 mm)/ (1) 90° Right Angle Head (L = 350 mm, Index = 5°)
- - Hydraulic Pump & Coolant System / Coolant Through Spindle (30 BAR)
- - External Coolant Unit
- - 4-Axis Linear Scales
Additional Information
- Technical Machine Benefits:
- - X-axis stroke: 10250 mm / y-axis stroke: 5000 mm / z-axis stroke (ram): 1000 mm / w-axis stroke (crossrail): 2500 mm
- - Rapid traverse x & y axes: 10000 mm/min /rapid traverse z & w axes: 3000 mm/min/ feed rate x & y axes: 3600 mm/min /feed rate z & w axes: 3000 mm/min
- - Distance between columns: 4000 mm / distance table to ram face: 3550 mm
- - Table size (w x l): 3000 mm x 10300 mm / maximum table load: 50 ton
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
