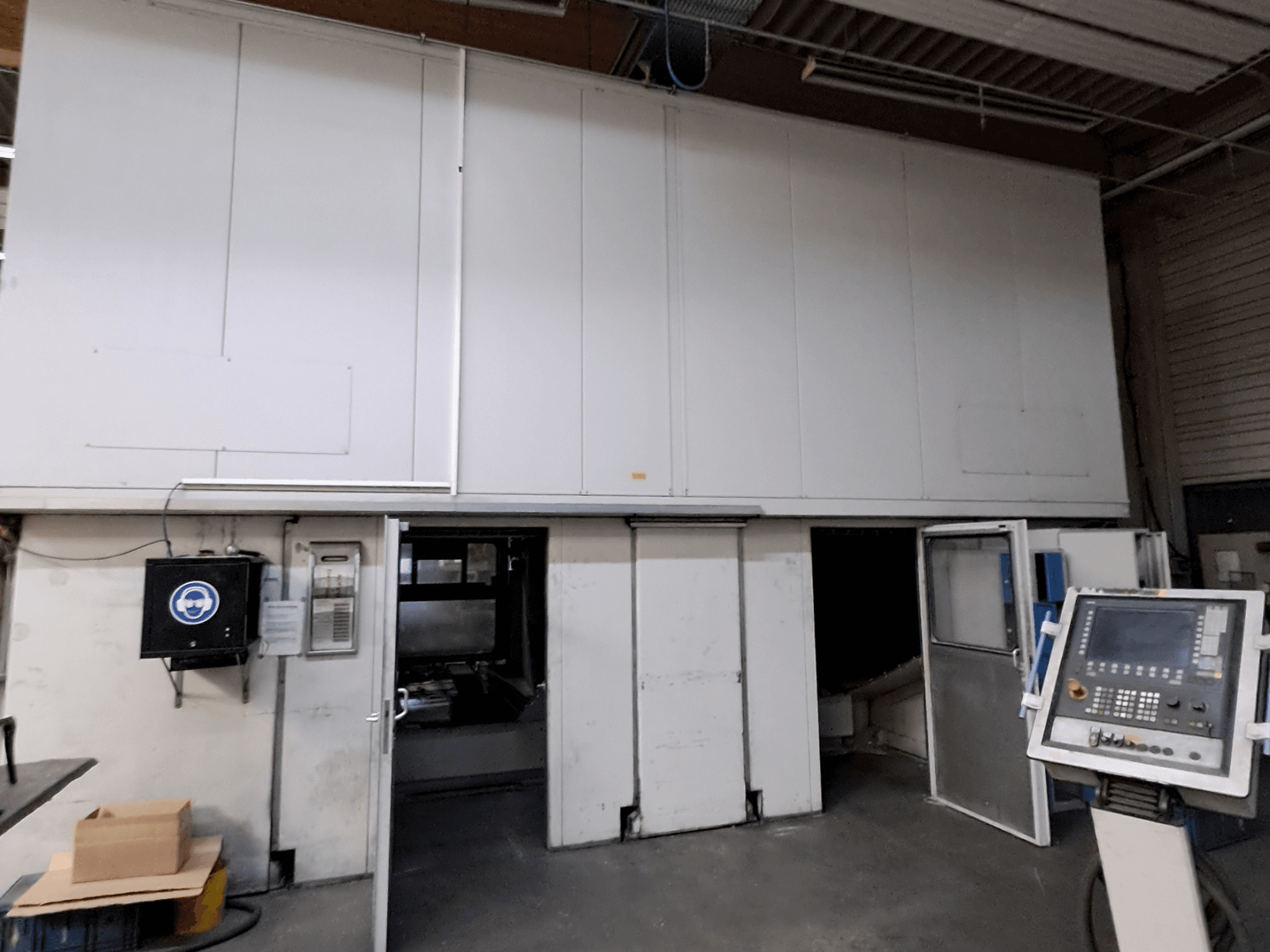

This 5-axis MAKA Moving Beam with 840D was manufactured in 2013. It features a Siemens Sinumerik 840D control unit and a nominal power of 55 kW. With its advanced capabilities, this gantry milling machine is ideal for precision machining tasks. If you are looking to get high-quality milling capabilities, consider the MAKA Moving Beam with 840D machine we have for sale. Contact us for further details.
Overview
- brand: MAKA
- year: 2013
- MODEL: Moving Beam with 840D
- production hours: 82340
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
- control unit brand: SIEMENS
Technical Information - MAKA Moving Beam with 840D
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Movement
- Number of Axes: 5
- X-axis Travel: 2500 mm
- Y-axis Travel: 1300 mm
- Z-axis Travel: 420 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
- 2 units available
- Control Unit: Siemens Sinumerik 840D
- Number of Axes: 5-Axis (X, Y, Z linear axes and A, C rotary/swivel axes)
- Pneumatic Pressure: 6 bar
- Nominal Voltage: 400 V
- Frequency: 50 Hz
- Control Voltage: 24 V
- Nominal Power: 55 kW
- Nominal Current: 145 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
