➤ Used T-Rex Servo-0609 For Sale | gindumac.com

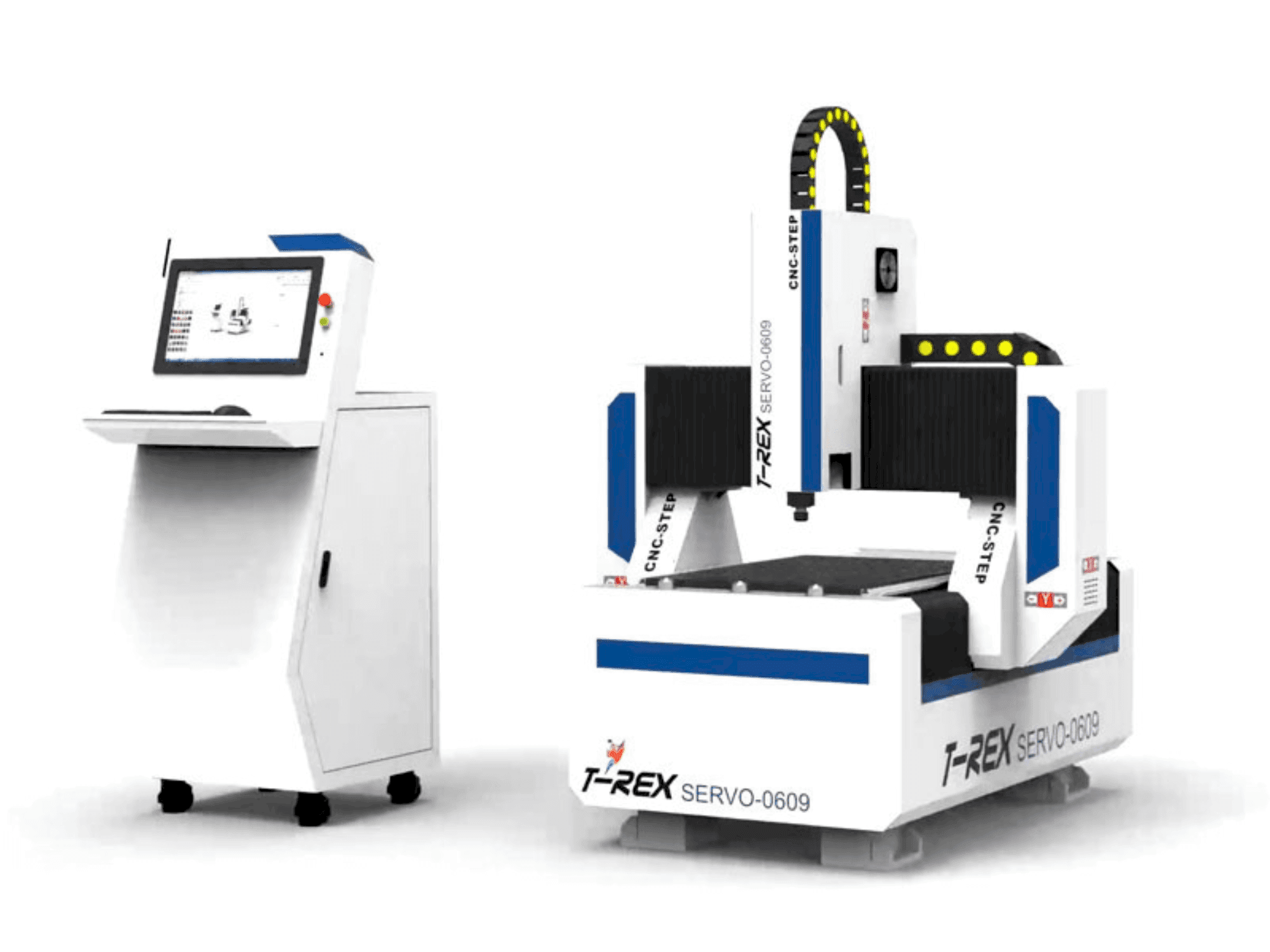

This 3-axis T-Rex Servo-0609 was manufactured in 2023. It features a CNC portal milling machine with a KinetiC-NC control system and PC software. The travel dimensions are 900 mm (X) × 600 mm (Y) × 200 mm (Z). It includes a Hiteco 4.0 kW ATC spindle, air-cooled, with a 24,000 rpm and an automatic 4-fold tool changing station. Consider the opportunity to buy this T-Rex Servo-0609 gantry milling machine. Contact us for more information about this machine.

Overview

brand: T-Rex
year: 2023
MODEL: Servo-0609
application type: Milling
Location: Germany
machine type: Gantry Milling Machine

Technical Information - T-Rex Servo-0609

Dimensions

Machine Weight: 545 kg

Movement

Number of Axes: 3
X-axis Travel: 900 mm
Y-axis Travel: 600 mm
Z-axis Travel: 200 mm

Technical Specification

Spindle Power: 4 kW
Spindle Speed: 24000 RPM

Additional Information

Additional equipment

Accessories: Electronic handwheel, Gigabit network switch (5 ports)

Machine Benefits

Technical Machine Benefits

Drive: servomotors with automatic lubrication
Control: KinetiC-NC with PC software
Clamping system: vacuum plate with t-slot rails
Tool change: 4-fold changing station (iso30), automatic (atc)
Tool holder: 6× sk30/er32 with nuts and tightening bolts
Single collet er32 (3. 175 mm, 0. 0006” concentricity)
Vacuum generation: side channel blower 2. 2 kw (520 mbar, 155 m³/h)
Transportation: box dimensions: 175 × 180 × 200 cm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
