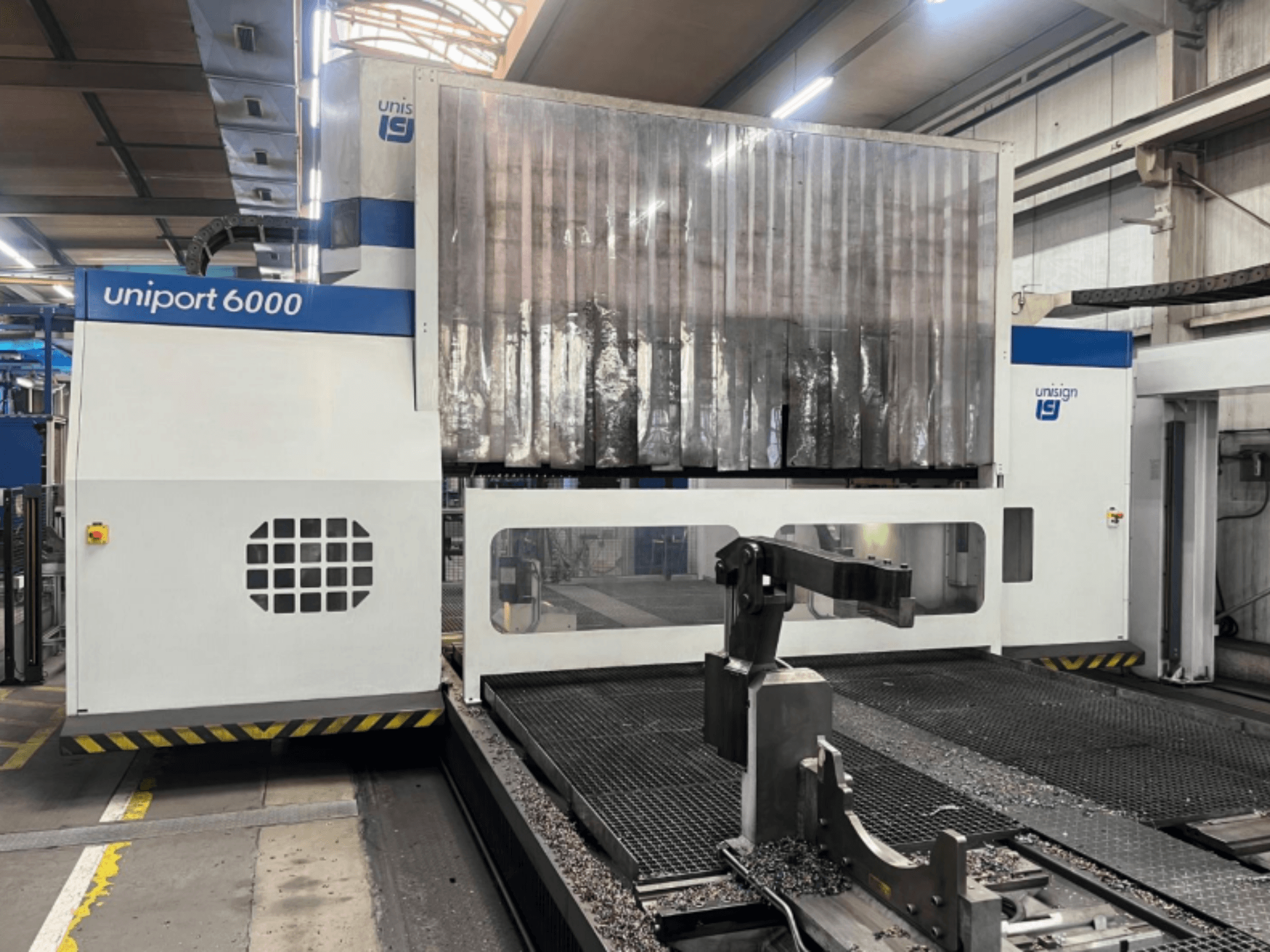

This 3-axis Unisign uniport 6000 gantry milling machine was manufactured in 2010. It features an impressive X-axis travel of 10,000 mm, Y-axis travel of 1,500 mm, and Z-axis travel of 1,000 mm. The machine is equipped with a powerful 36 kW main drive and a 30-pocket automatic tool changer. If you are looking to get high-quality milling capabilities, consider the Unisign uniport 6000 gantry milling machine we have for sale. Contact us for further details.
Overview
- brand: Unisign
- year: 2010
- MODEL: uniport 6000
- production hours: 55000
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
- control unit brand: SIEMENS
Technical Information - Unisign uniport 6000
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840 D
Movement
- Number of Axes: 3
- X-axis Travel: 10000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 36 kW
- Spindle Speed: 6000 RPM
- Taper Size: SK 50
Additional Information
Space requirement: approx. 12 x 11 m
Passage: height 1,000 mm / width 1,500 mm
Max torque: 720 Nm
Gearbox: 2-stage, ratio 1:4
Machining capacities (C45): drilling 120 mm dia / tapping M55 / milling 100 cm³/min
Construction: Gantry design with movable portal bridge and stationary clamping table
Table configuration: Clamping bars in transverse direction with 750 mm spacing (standard plate fields omitted)
Tool changer: Automatic tool change; 30-pocket chain magazine on the portal column (capable of tool change into the angular head)
Operation mode: Pendulum machining capability
Cooling: Machine cooling unit; water-air heat exchanger integrated into the control cabinet
Coolant system: Operated dry; pre-fitted/ready for coolant use
Maintenance status: Tool magazine and X1/X2 ball screws completely overhauled in 2023; last manufacturer maintenance in 2023
Installation: Machine recessed and anchored in a foundation pit
Additional equipment
Angle boring and milling head, 1 unit, 4,000 rpm, SK50, with Hirth coupling for high accuracy and stability; plus 1 spare unit
Probing: RWP20.50-M probe; plus 1 spare Hexagon RWP 20.50-M probe
Hydraulic clamping device with clamping bridges for axis machining, including hydraulic unit
1x T-slot clamping field (2500 x 1200 mm) as an alternative to the hydraulic fixture
Chip conveyor: Hinged belt type
Safety fence with Sick light grids
Makrolon curtains on both sides of the bridge (motorized height adjustment)
Separation wall with viewing window
Setup and leveling elements
Diverse spare parts
Documentation included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
