➤ Used KAOMING KMC-2000 SV For Sale | gindumac.com

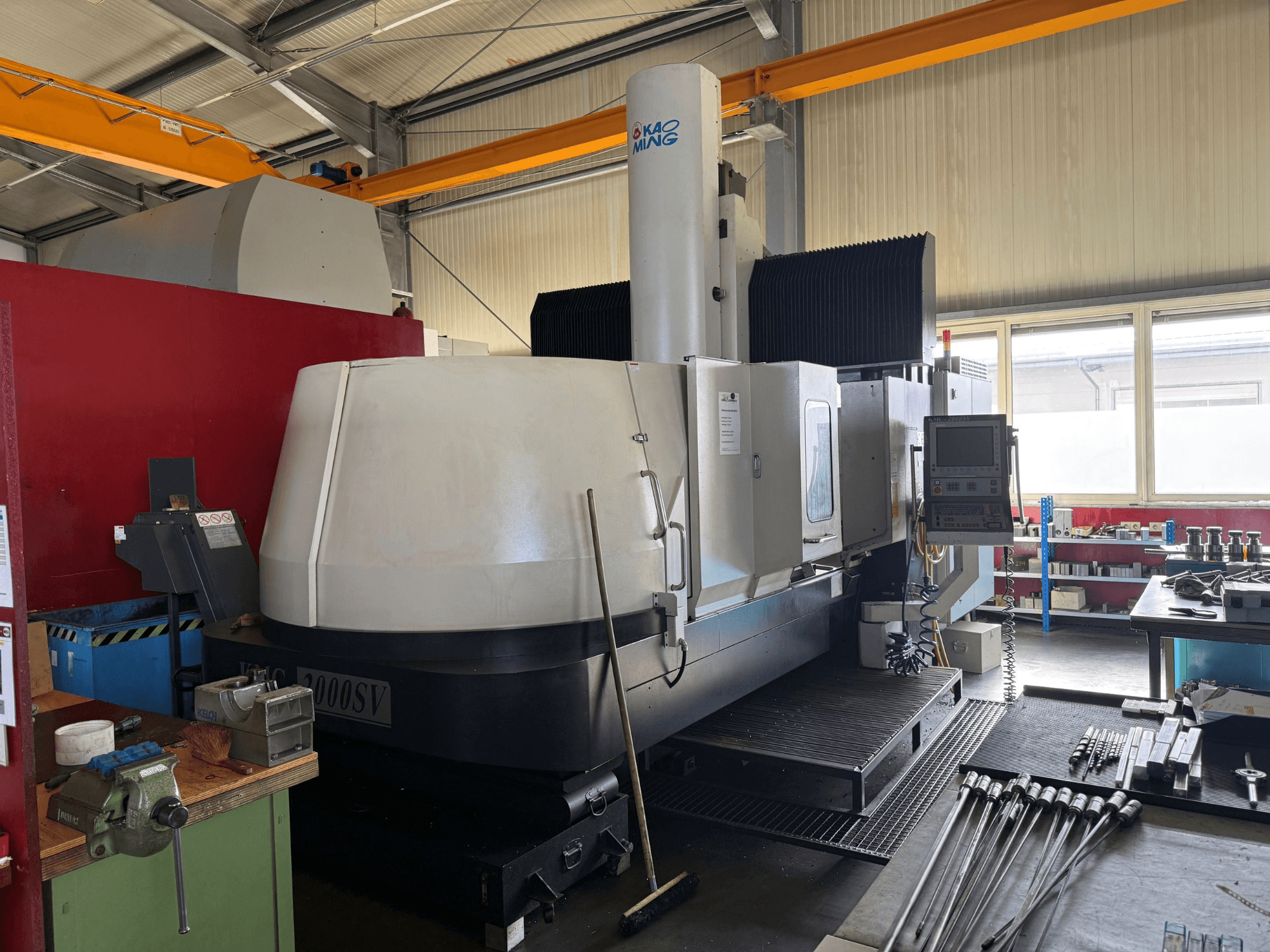

This 3-axis KAOMING KMC-2000 SV gantry milling machine was manufactured in 2008. It features a generous X-axis travel of 2,230 mm, Y-axis travel of 1,700 mm, and Z-axis travel of 850 mm. The machine includes a substantial table size of 2,000 x 1,650 mm and a maximum table load of 6,000 kg. If you are looking to get high-quality milling capabilities, consider the KAOMING KMC-2000 SV machine we have for sale. Contact us for further details.

Overview

brand: KAOMING
year: 2008
MODEL: KMC-2000 SV
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - KAOMING KMC-2000 SV

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Weight: 19500 kg
Table Length: 2000 mm
Table Load: 6000 kg
Table Width: 1650 mm

Movement

Number of Axes: 3
X-axis Travel: 2230 mm
Y-axis Travel: 1700 mm
Z-axis Travel: 850 mm

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

- Tool Taper: SK50

- Tool Changer Positions: 30 slots

- Control On Hours: 30,233 h (as of end of 2025)

- Program Run Hours: 17,814 h (as of end of 2025)

- Optional Equipment: Integrated magnetic/clamping plates on table, chip conveyor, internal/external coolant nozzles, remote handwheel control unit, electrical cabinet with cooling/air conditioning unit.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
