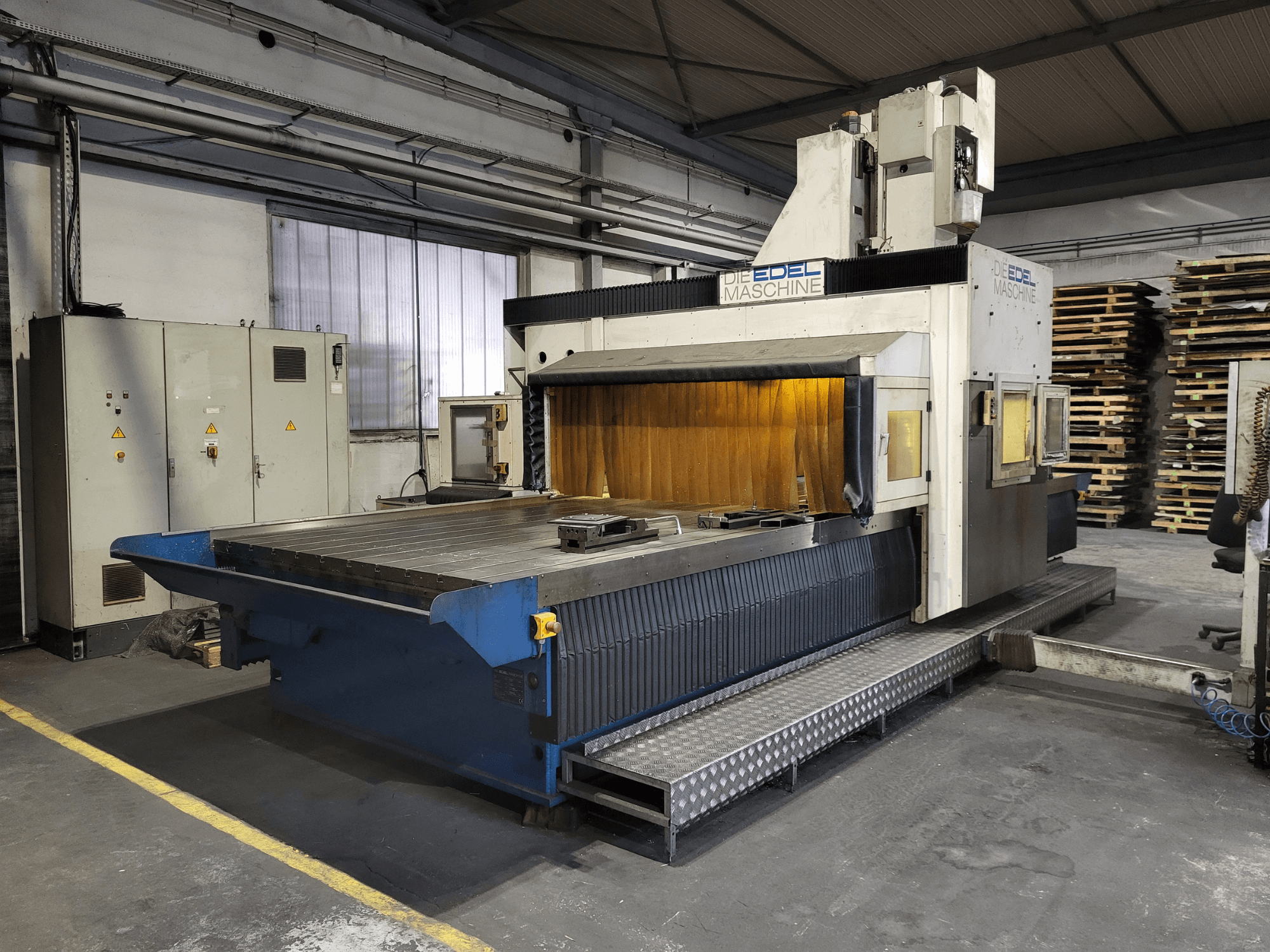

This 4-axis EDEL Koordimatic XL 4020 gantry milling machine was manufactured in 2003. It features a substantial working area of 4000 x 2000 mm and a maximum spindle speed of 10,000 rpm. The machine is equipped with a powerful 30 kW electrospindle and has a travel distance of 760 mm in the Z-axis. If you are looking to get high-quality milling capabilities, consider the EDEL Koordimatic XL 4020 machine we have for sale. Contact us for further details.
Overview
- brand: EDEL
- year: 2003
- MODEL: Koordimatic XL 4020
- application type: Milling
- Location: Poland
- machine type: Gantry Milling Machine
- control unit brand: FANUC
Technical Information - EDEL Koordimatic XL 4020
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-MB
Dimensions
- Machine Weight: 26000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 4000 mm
- Y-axis Travel: 2000 mm
- Z-axis Travel: 760 mm
Technical Specification
- Max. Tool Weight: 15 kg
- Spindle Power: 30 kW
- Spindle Speed: 10000 RPM
- Taper Size: SK 50
Additional Information
Condition: Refurbished (used)
Functionality: Limited functionality
Power: 30 kW (40.79 HP); electrospindle after full regeneration (new bearings and clamping system)
Working area: 4000 x 2000 mm
Rapid traverse X/Y/Z: 20 / 20 / 15 m/min
Rotational speed (max): 300 rpm
Tool magazine: 36 positions (damaged – no changer arm)
Distance table to spindle center: 150 mm
Mount diameter: 50 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
