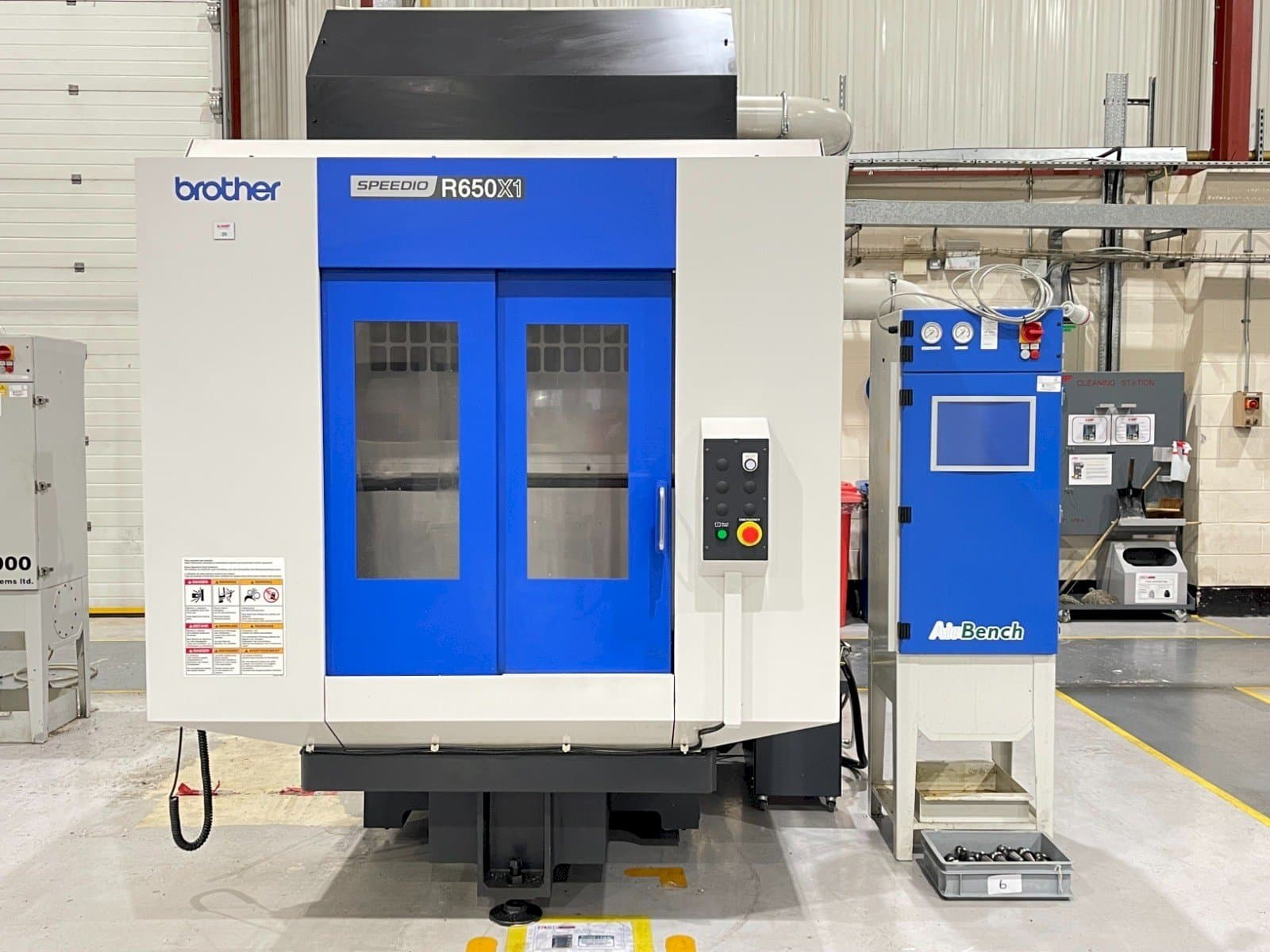

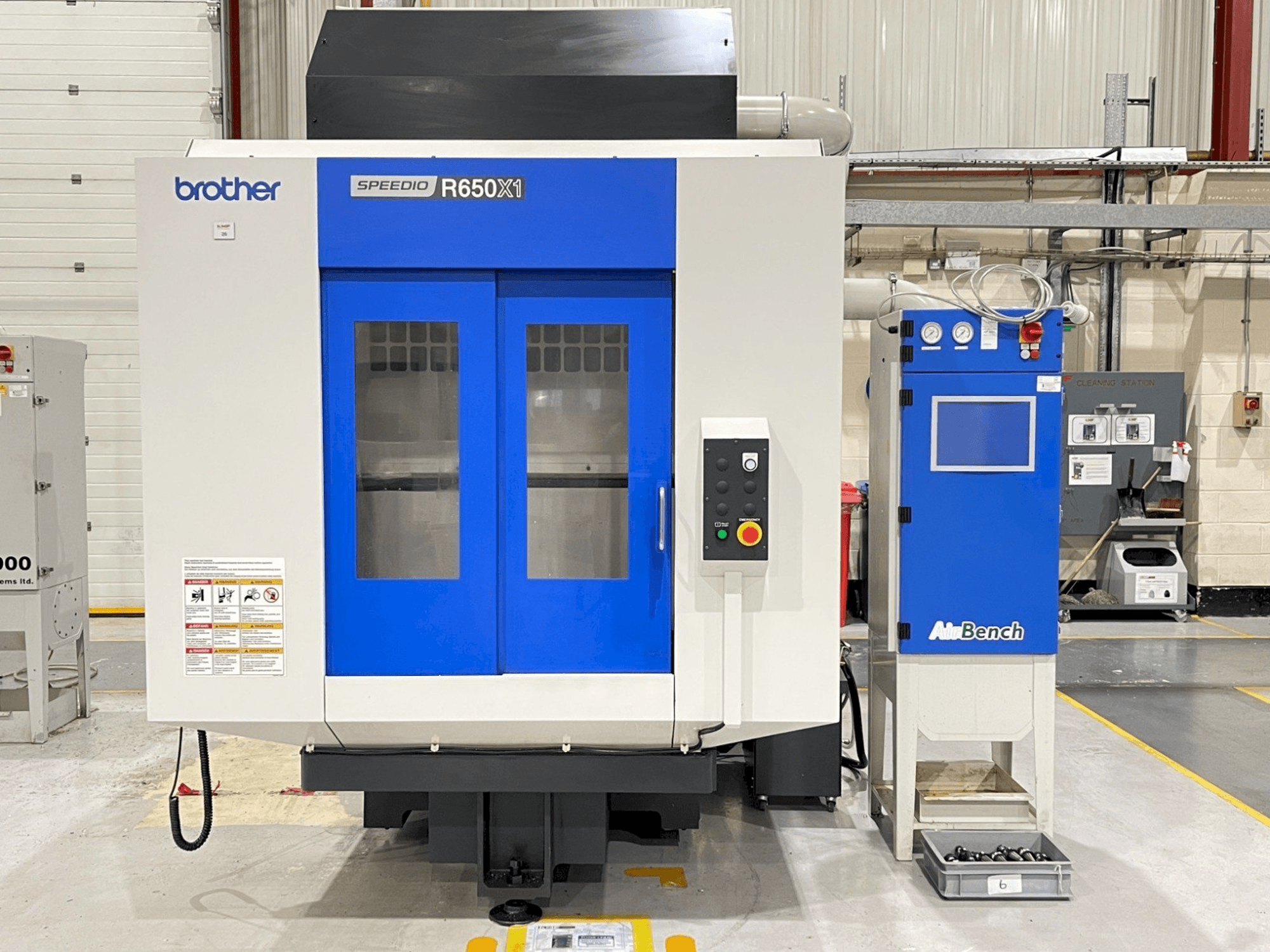

Front view of Brother SPEEDIO R650X1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Brother SPEEDIO R650X1

Brother - SPEEDIO R650X1IT-MIL-BRO-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
BROTHER SPEEDIO R650X1 Vertical Machining center

This BROTHER SPEEDIO R650X1 Vertical Machining Center was manufactured in the year 2018 in Germany and has 3197 hours. It is equipped with a BROTHER C00 control unit and has 3 axis. The machine has a spindle speed of 16000 rpm, is in very good condition, and is well maintained.

Overview

brand: Brother
year: 2018
MODEL: SPEEDIO R650X1
production hours: 3197
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother SPEEDIO R650X1

General Data

Measurements width: 1837 mm
Measurements depth: 3248 MM
Measurements height: 2696 MM

Control Unit

Model: C00
Brand: BROTHER

Main drive

Spindle speed range: 16000 1/MIN
Tool taper: BT 30
Number of axis: 3

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 305 MM

Table

Outer length: 800 mm
Outer width: 400 mm
Table load: 200 KG

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose distance table top 250 – 555 mm
- - Rigid tapping 6. 000 rpm/min.
- - Rapid 50/mt. /1'
- - Atc 22 random seats
- - Max dia. Tool 80mm.
- - Max tool weight 3 kg.
- - Through spindle coolant
- - Chips conveyor
- - Rotating joint on pallet center
- - Machine like new! Excellent condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
