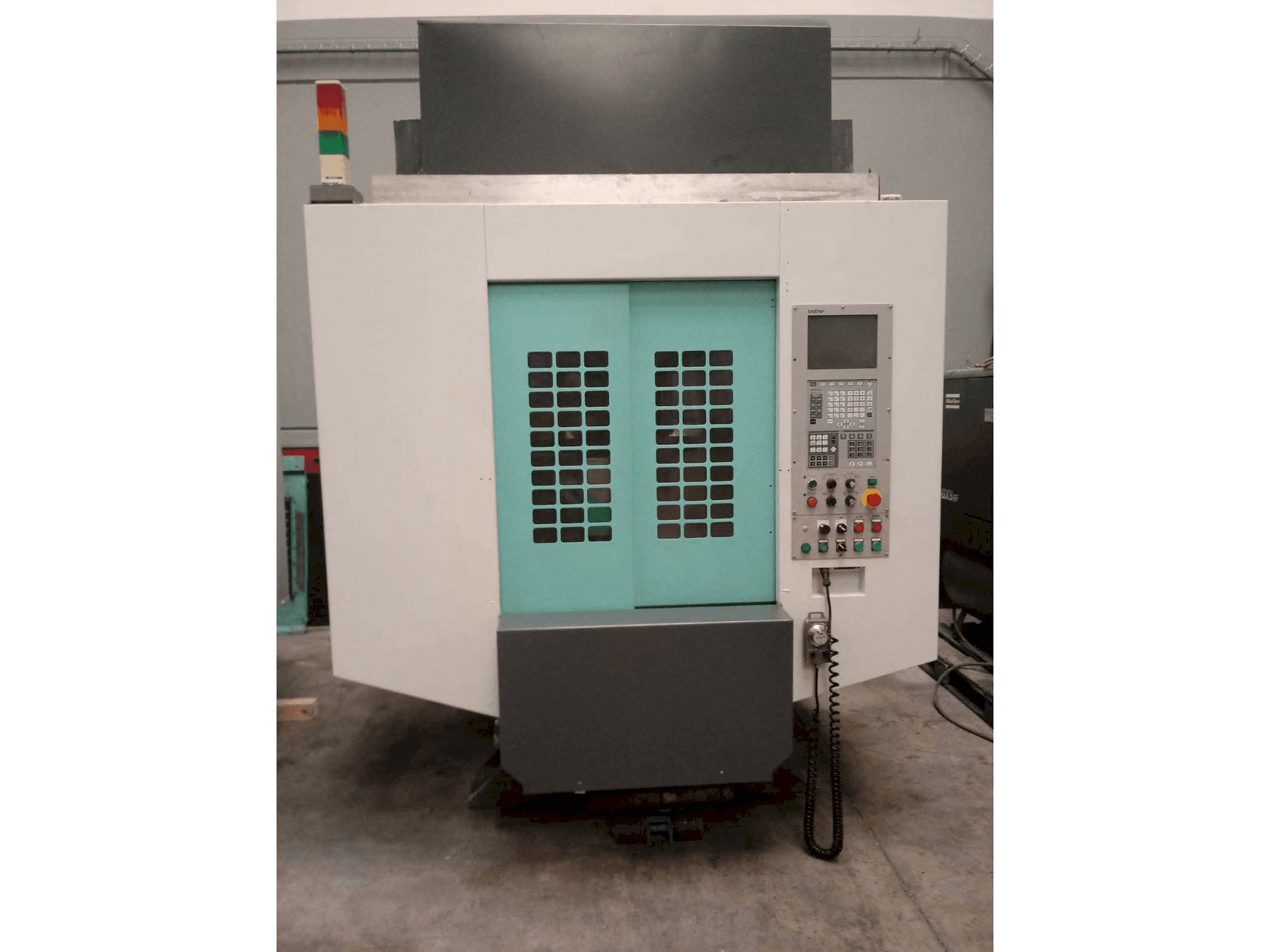

- Brother TC-S2DN-O Vertical Machining center
This Brother TC-S2DN-O Vertical Machining center was manufactured in the year 2005. It is equipped with a BROTHER A00 control unit and has 4 axis. The machine has spindle speed of 16000 rpm.
Overview
- brand: Brother
- year: 2005
- MODEL: TC-S2DN-O
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: BROTHER
Technical Information - Brother TC-S2DN-O
General Data
- Machine weight: 2000 Kg
Control Unit
- Brand: BROTHER
- Model: A00
Main drive
- Spindle speed range: 16000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 700 mm
- X-AXIS Rapid traverse: 50 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 50 m/min
- Z-AXIS Movement: 320 mm
- Z-AXIS Rapid traverse: 50 m/min
Table
- Outer length: 800 mm
- Outer width: 320 mm
Additional Information
- Technical Machine Benefits:
- - Max tools length : 200 m/m
- - Maximum table load kg: 400kg
- - Distance from head to table: 360 mm
- - Maximum tool weight: 2. 7 kg
- - Number of tools: 21
- - Tool change time: 1. 1 sec
- - Time between chips: 1. 8 sec
- - Head type bt 30
- - Air cooling/external drill
- - 4th axis + rotary joint ddr
- Qualitative Machine Benefits:
- - Probe renishaw ts27r
- - Auto/manual door
- - Robot interface: yes
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
