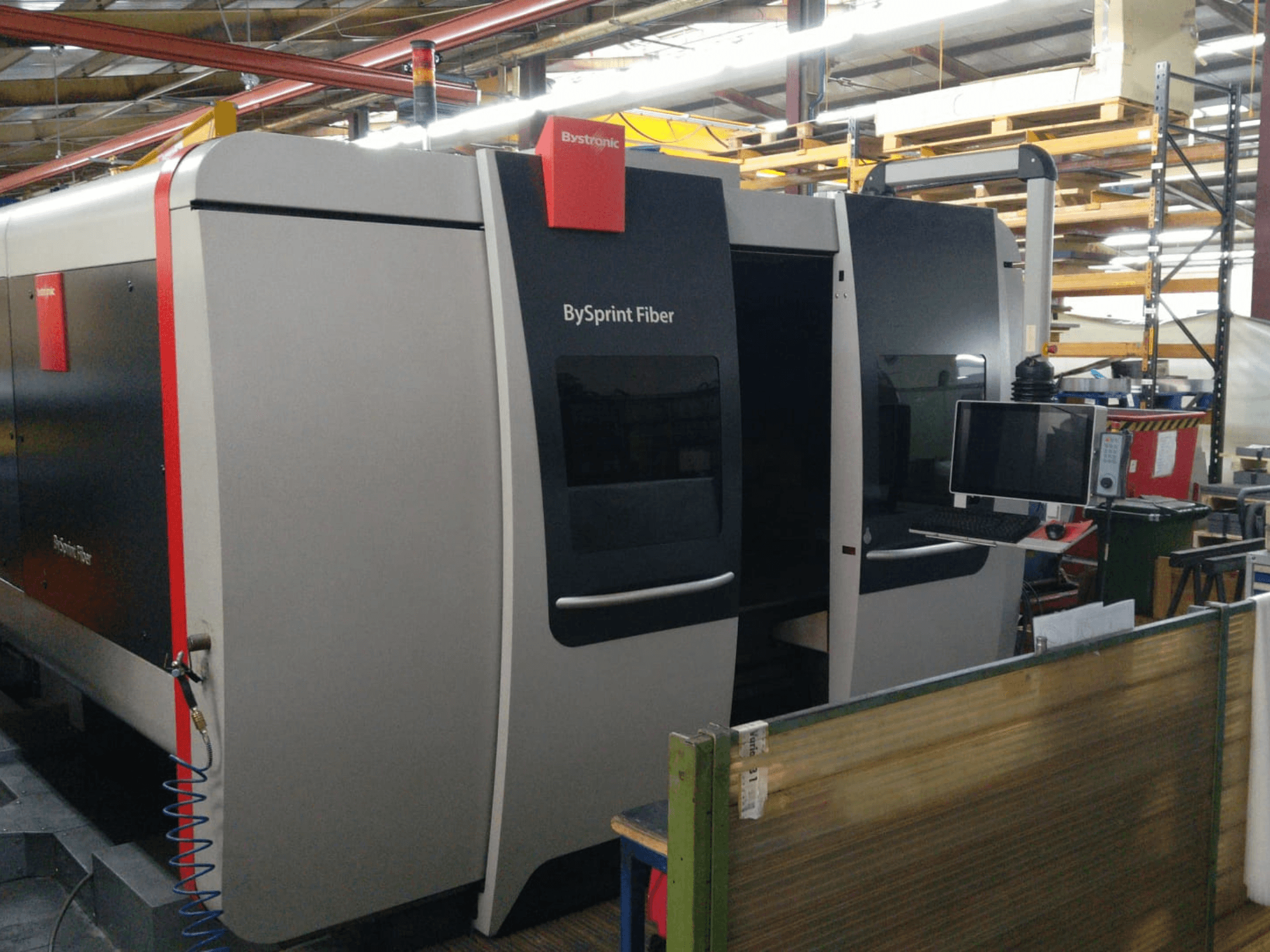

Bystronic BySprint Fiber laser cutter, front view with control panel, visible details include two doors and a monitor on the side.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic BySprint Fiber 3015

Photo Gallery

Bystronic - BySprint Fiber 3015DE-CUT-BYS-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Bystronic BySprint Fiber 3015 | Fiber Laser Cutter

This 3-axis Bystronic BySprint Fiber 3015 was manufactured in 2016, designed for precision fiber laser cutting. It handles a nominal sheet size of 3000 x 1500 mm and supports a maximum workpiece weight of 890 kg. The machine dimensions are 11,000 mm in length, 6,050 mm in width, and 2,565 mm in height. If you are looking to get high-quality cutting capabilities consider the Bystronic BySprint Fiber 3015 machine we have for sale. Contact us for more information.

Overview

brand: Bystronic
year: 2016
MODEL: BySprint Fiber 3015
production hours: 11070
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine

Technical Information - Bystronic BySprint Fiber 3015

Dimensions

Machine Height: 2565 mm
Machine Length: 11000 mm
Machine Weight: 12000 kg

Movement

Number of Axes: 3

Additional Information

Nominal sheet size: 3000 x 1500 mm
Cutting area (travel): X 3048 mm, Y 1524 mm, Z 70 mm
Maximum positioning speed: Parallel (X,Y) 100 m/min; Simultaneous 140 m/min
Accuracy: Positioning accuracy ±0.1 mm; Repeatability ±0.05 mm
Maximum workpiece weight 890 kg
Cut Control Fiber
Detection Eye
Automatic nozzle changer (40 positions)
Parts and cross conveyors in the cutting area
Dust extraction system with 200-liter drum adapter
Only one module is faulty

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
