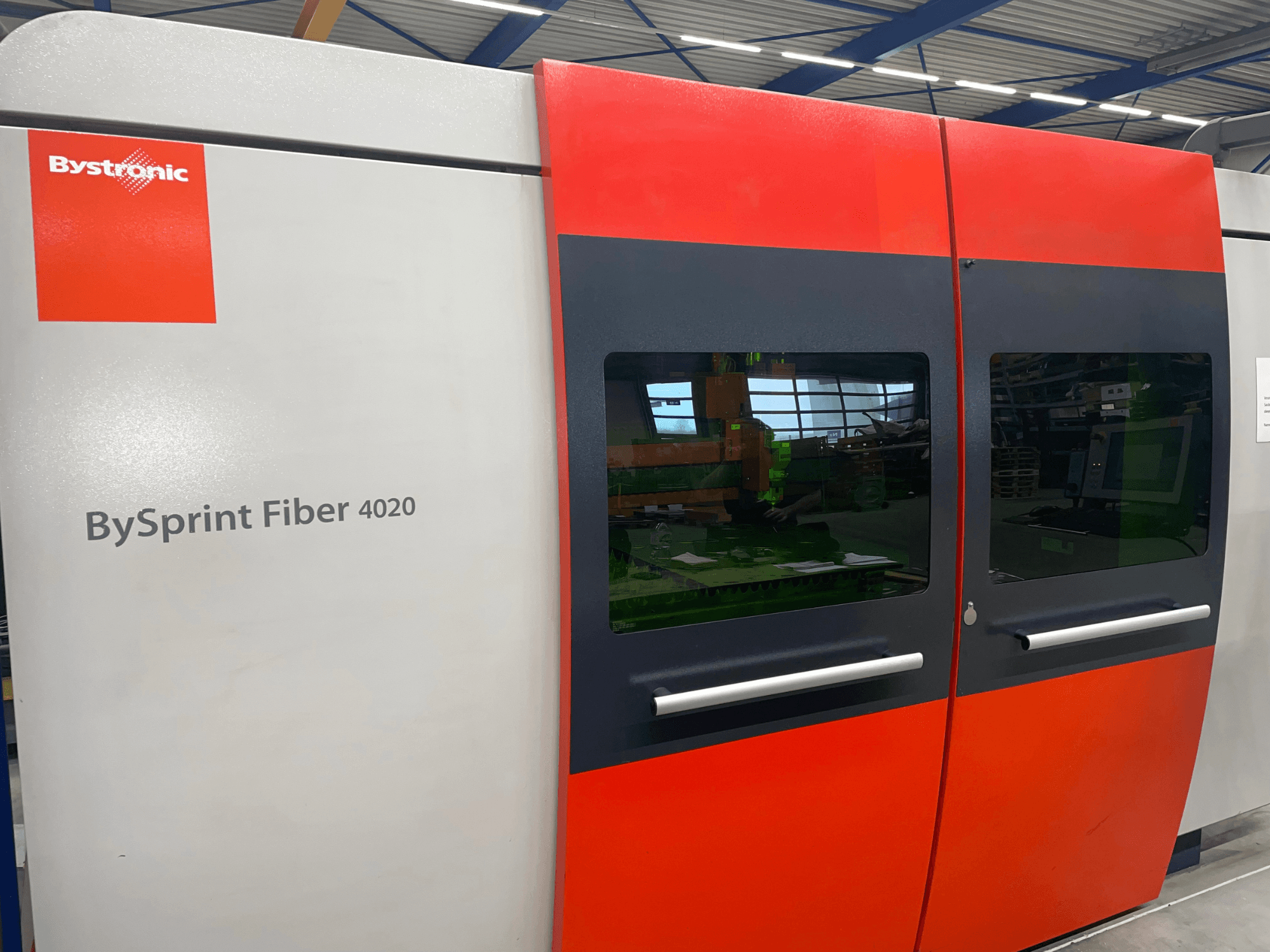

➤ Used Bystronic Bysprint Fiber 4020 | Fiber Laser Cutter

This Bystronic Bysprint Fiber 4020 was manufactured in 2014. It features a large cutting area with dimensions up to 4064 mm by 2032 mm and a maximum cutting thickness of 20 mm for steel. The machine supports a fiber laser source with 6000 W power, ensuring precise and efficient cutting. Consider the opportunity to buy this Bystronic Bysprint Fiber 4020 fiber laser cutting machine. Contact us for more information.

Overview

brand: Bystronic
year: 2014
MODEL: Bysprint Fiber 4020
production hours: 40236
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine
Available from: 31/03/2026

Technical Information - Bystronic Bysprint Fiber 4020

Dimensions

Machine Height: 2500 mm
Machine Length: 12900 mm
Machine Weight: 15000 kg

Additional Information

Sheet size: X 4000 mm; Y 2000 mm
Cutting range: X 4064 mm; Y 2032 mm; Z 70 mm
Maximum simultaneous positioning speed: 140 m/min
Maximum parallel positioning speed (X/Y): 100 m/min
Maximum axis acceleration: 12 m/s²
Positioning variation Ps (VDI/DGQ 3441): 0.05 mm
Positioning deviation Pa (VDI/DGQ 3441): 0.1 mm
Edge detection accuracy: 0.5 mm
Maximum workpiece weight: 1270 kg
Table changeover time: 35 s
Laser source: Fiber, 6000 W
Pulse frequency: 1–2500 Hz
Control range: 600–6000 W
Wavelength: 1 µm
Max cutting thickness: steel 20 mm; stainless steel 15 mm; aluminum 15 mm; brass 10 mm; copper 10 mm
Electrical consumption (with extraction, cooling unit): 31 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
