➤ Used Bystronic Xpert 40/1030 For Sale | gindumac.com

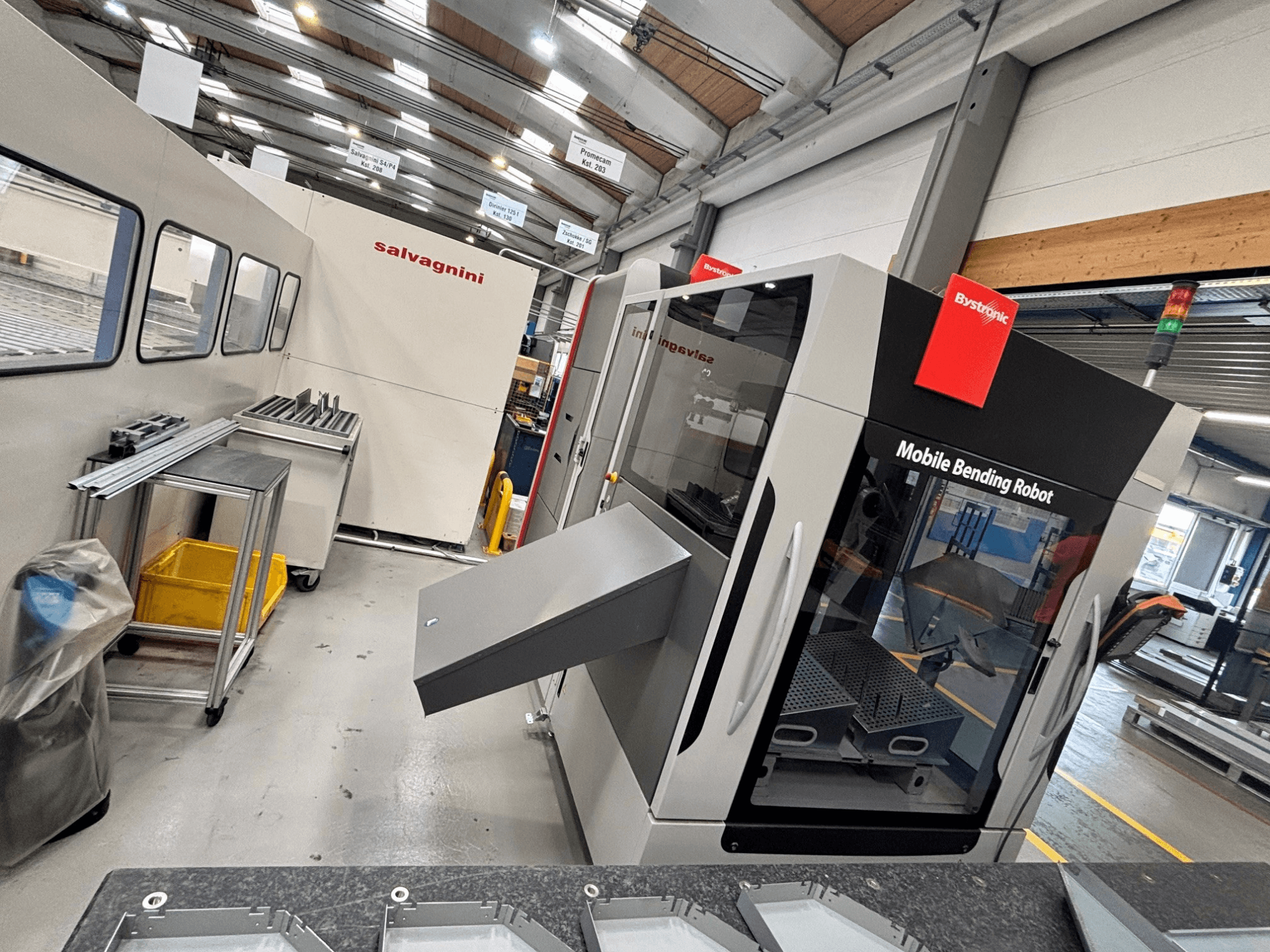

This 6-axis Bystronic Xpert 40/1030 was manufactured in 2022. It features a working length of 1030 mm and a maximum press force of 400 kN, making it suitable for various bending applications. The machine has a maximum stroke of 200 mm and weighs 4000 kg. If you are looking to get high-quality bending capabilities, consider the Bystronic Xpert 40/1030 press brake we have for sale. Contact us for further details.

Overview

brand: Bystronic
year: 2022
MODEL: Xpert 40/1030
application type: Bending
Location: Austria
machine type: Press Brake

Technical Information - Bystronic Xpert 40/1030

Dimensions

Machine Weight: 4000 kg

Technical Specification

Bending Length: 1030 mm
Pressing Force: 400 Kn

Additional Information

- Max. Stroke: 200 mm

- Main Motor Power: 7.5 kW

- Total Connected Load : 12 kW

- Operating Voltage: 3 PH 400 V AC

- Frequency: 50 Hz

- Control Voltage: 24 V DC

- Rated Current Fuse: 32 A

- Max. Pneumatic Operating Pressure: 8 bar

- Max. Hydraulic Operating Pressure: 320 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
