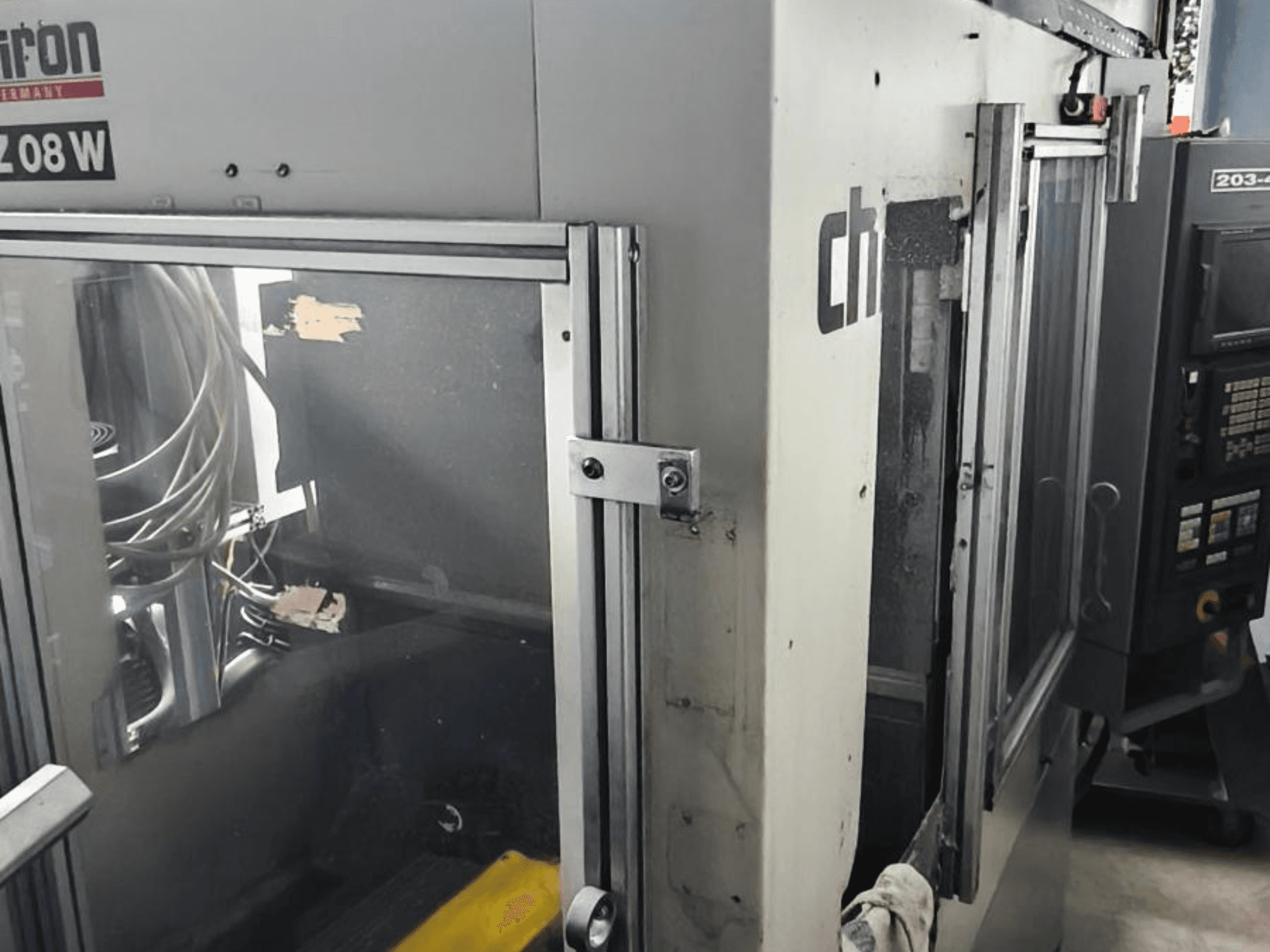

Vertical Machining Centre CHIRON FZ 08 W, front view showing control panel and partially open doors, with visible internal components.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHIRON FZ 08 W

Photo Gallery

CHIRON - FZ 08 WDE-MIL-CHI-2001-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ 08 W For Sale | gindumac.com

This 3-axis CHIRON FZ 08 W was manufactured in 2001. It features a maximum spindle speed of 18,000 rpm and a robust tool interface with HSK-A40. The machine includes integrated pallet changer for efficient workpiece handling. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08 W vertical machining centre we have for sale. Contact us for further details regarding this machine.

Overview

brand: CHIRON
year: 2001
MODEL: FZ 08 W
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - CHIRON FZ 08 W

Control Unit

Control Brand: FANUC
Control Model: Series 21i-M

Movement

Number of Axes: 3
X-axis Travel: 450 mm
Y-axis Travel: 270 mm
Z-axis Travel: 310 mm

Technical Specification

Spindle Speed: 18000 RPM

Additional Information

Condition: Machine is no longer functional and can only be used as a supplier of spare parts

Electrical data

Kind of current: 3/N/PE ~ 50/60 Hz
Working voltage: 400 V
Control voltage: 230/24 V
Rating: 12 kVA
Rated current: 17 A
Fuse: 20 A

Spindle

Spindle type: Water-cooled motor spindle
Max. torque: approx. 15 Nm

Other machine details

Workpiece changing system: Integrated pallet changer (W-type)
Maintenance intervals noted: 8h, 50h, 200h, 500h, 2000h, 6000h
Lubrication requirements: INSK K11 / ALKANIA 2 (Shell)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
