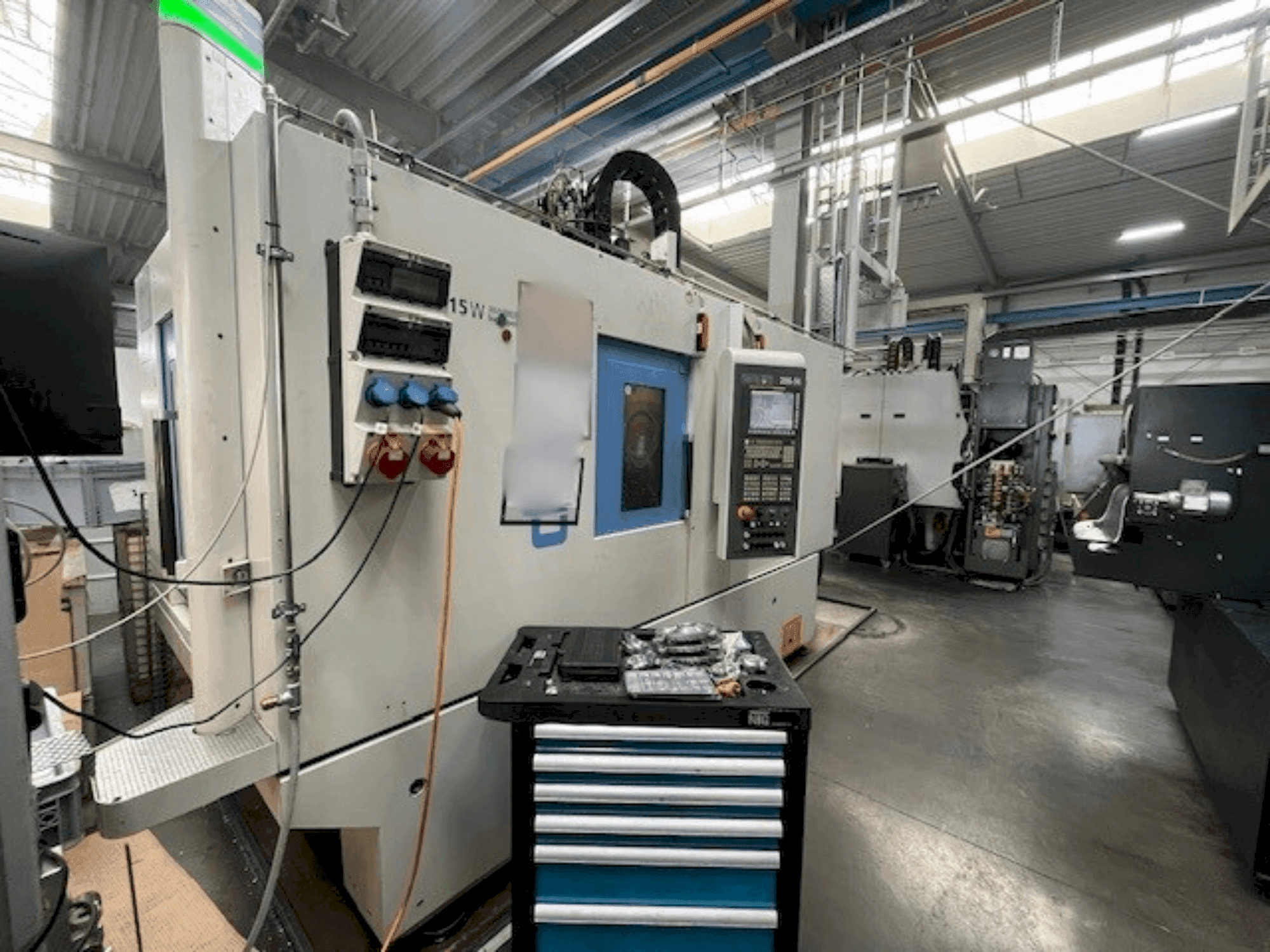

This 4-axis CHIRON FZ 15 W Magnum HS vertical machining center was manufactured in 2014. Ideal for precision machining, it offers robust construction and reliability. Consider the opportunity to buy this CHIRON FZ 15 W Magnum HS vertical machining center. Contact us for more information.
Overview
- brand: CHIRON
- year: 2014
- MODEL: FZ 15 W Magnum HS
- production hours: 24209
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: FANUC
Technical Information - CHIRON FZ 15 W Magnum HS
Control Unit
- Brand: FANUC
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 7.5-15 kW
- Number of axis: 4
Movement
- X-AXIS Movement: 730 mm
- X-AXIS Rapid traverse: 75 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 75 m/min
- Z-AXIS Movement: 360 mm
- Z-AXIS Rapid traverse: 75 m/min
Additional Information
- Technical Machine Benefits:
- - Number of tools per spindle: 48
- - Tool holder: hsk-a 63
- - Main spindle max. Torque: 95 nm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
