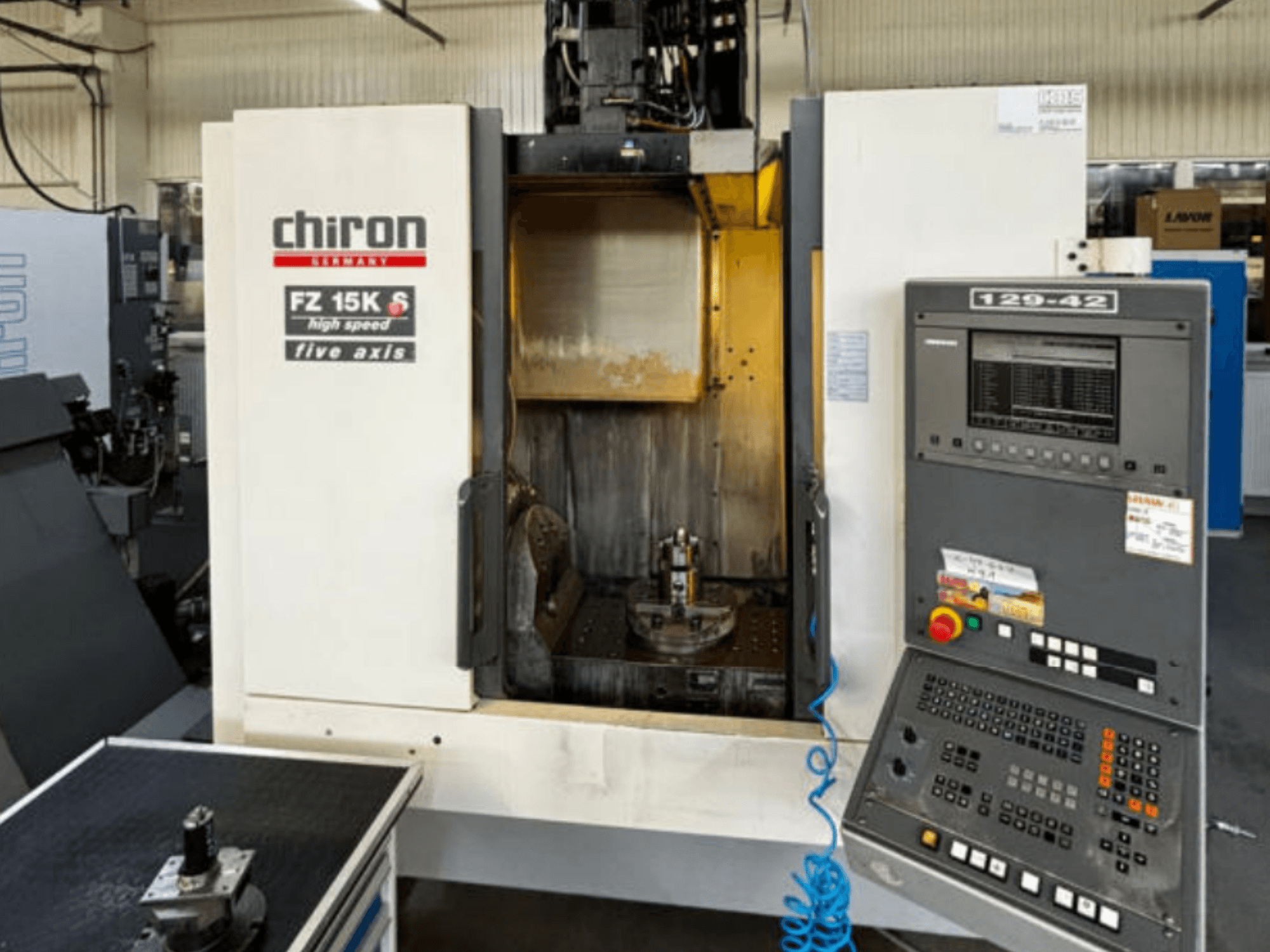

This 5-axis CHIRON FZ 15K S was manufactured in 2001. It features a spindle speed of 12,000 rpm and a tool magazine with 48 positions, providing efficient machining capabilities. The machine is equipped with a Peiseler swivel rotary table and an internal through-spindle cooling system. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 15K S vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: CHIRON
- year: 2001
- MODEL: FZ 15K S
- production hours: 94204
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- Available from: 03/12/2026
- control unit brand: HEIDENHAIN
Technical Information - CHIRON FZ 15K S
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 426
Dimensions
- Machine Weight: 8700 kg
Movement
- Number of Axes: 5
- X-axis Travel: 550 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: HSK 100
- Through-spindle Coolant: Yes
- Tool Stations: 48
Additional Information
- Number of Axes: 5-axis (3+2 configuration)
- Axis Table: Peiseler swivel rotary table equipped with HSK 100 clamping / LANG clamping system
- Cooling: Internal through-spindle cooling system (IKZ)
- Chip Management: Chip conveyor system
- Workpiece Measuring: Renishaw probe
- Working Voltage: 400 V
- Control Voltage: 230 / 24 V
- Power Rating: 47 kVA
- Rated Current: 67 A
- Fuse: 80 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
