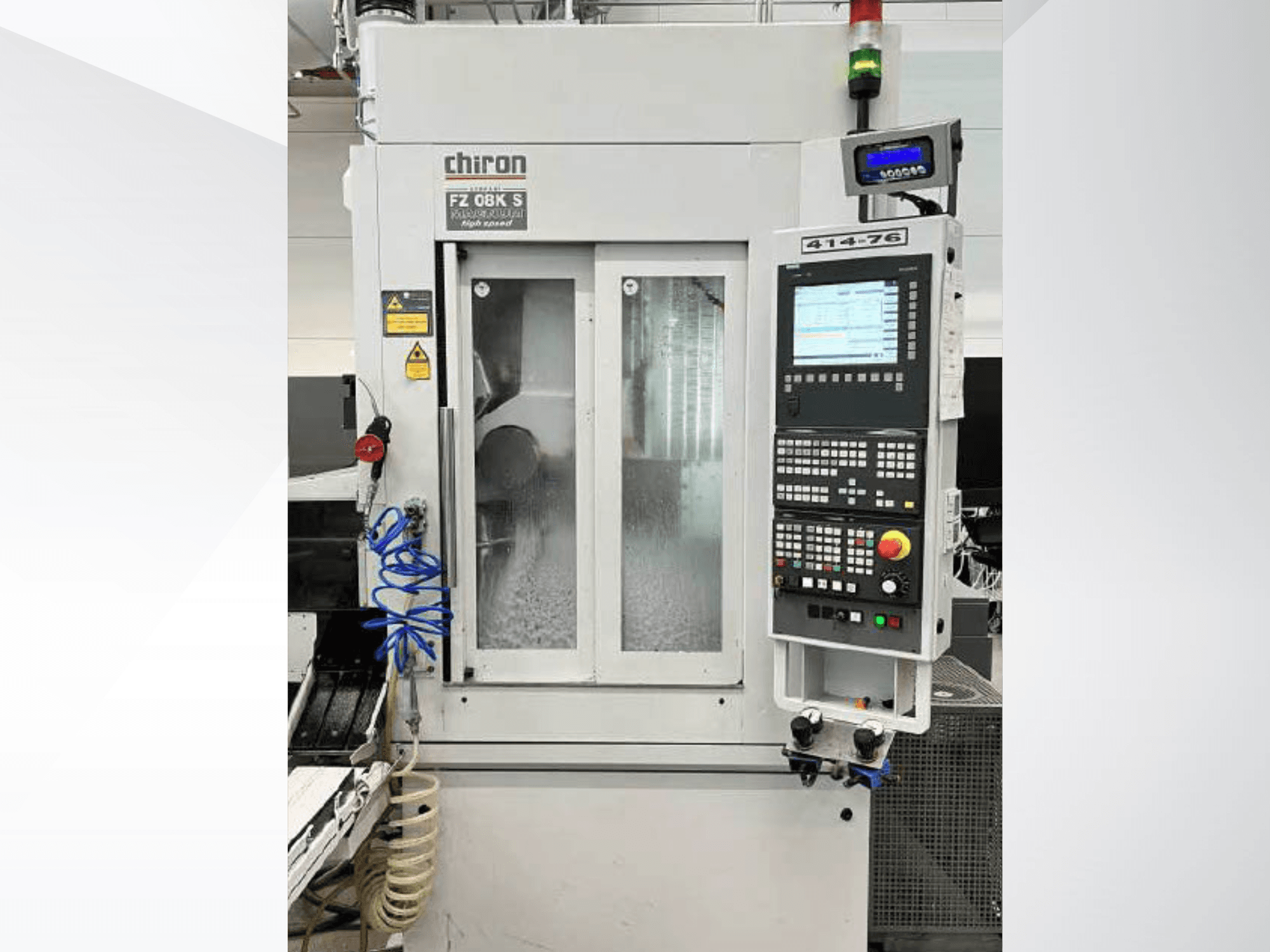

CHIRON - FZ 08K S Magnum SKDE-MIL-CHI-2007-00005

• Overhaul: Factory overhauled and technically updated by Chiron (CMS) in 2017

• Last Spindle Replacement: September 2025

• Last Maintenance: Major annual service (4,000 h) performed in October 2025

• NC Swivel Head Range: −20° / +115°

• Rapid Feed X/Y/Z: 75 m/min

• Acceleration X/Y/Z: 1g / 1.5g / 2g

• Tool Changer: 40 positions, HSK-A40

• Chip-to-Chip Time: 2.6 s (vertical)

• Rotary Table: AWU 160 with D105 mm positioning axis

• Operating Hours: Approximately 22,500 h

Additional equipment

• Clamping: Hainbuch Spanntop D100 collet chuck

• Bar Loader: IRCO SiMag 100.1-3000 for round and profile material

• High Pressure Coolant: 70 bar with Vario valve

• Coolant Filtration: Knoll VRF, 400-liter vacuum rotation filter

• Chip Conveyor: Scraper belt, 1,050 mm discharge height

• Measurement/Monitoring: Renishaw TS27R 3D touch probe; tool life monitoring; tool breakage control

• Collision Monitoring: Brankamp Marposs CMS 100

• Guide Channel Sets: Breuning IRCO sets included (by arrangement)

• Collets: Hainbuch collets included (by arrangement)

• Tool Holders: Approximately 500 pieces HSK-A40

• Spare Parts: Included for this machine type

• Operating Materials: Specific operating fluids/materials included
