CHIRON FZ 12 S

Photo Gallery

CHIRON - FZ 12 SPT-MIL-CHI-1995-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

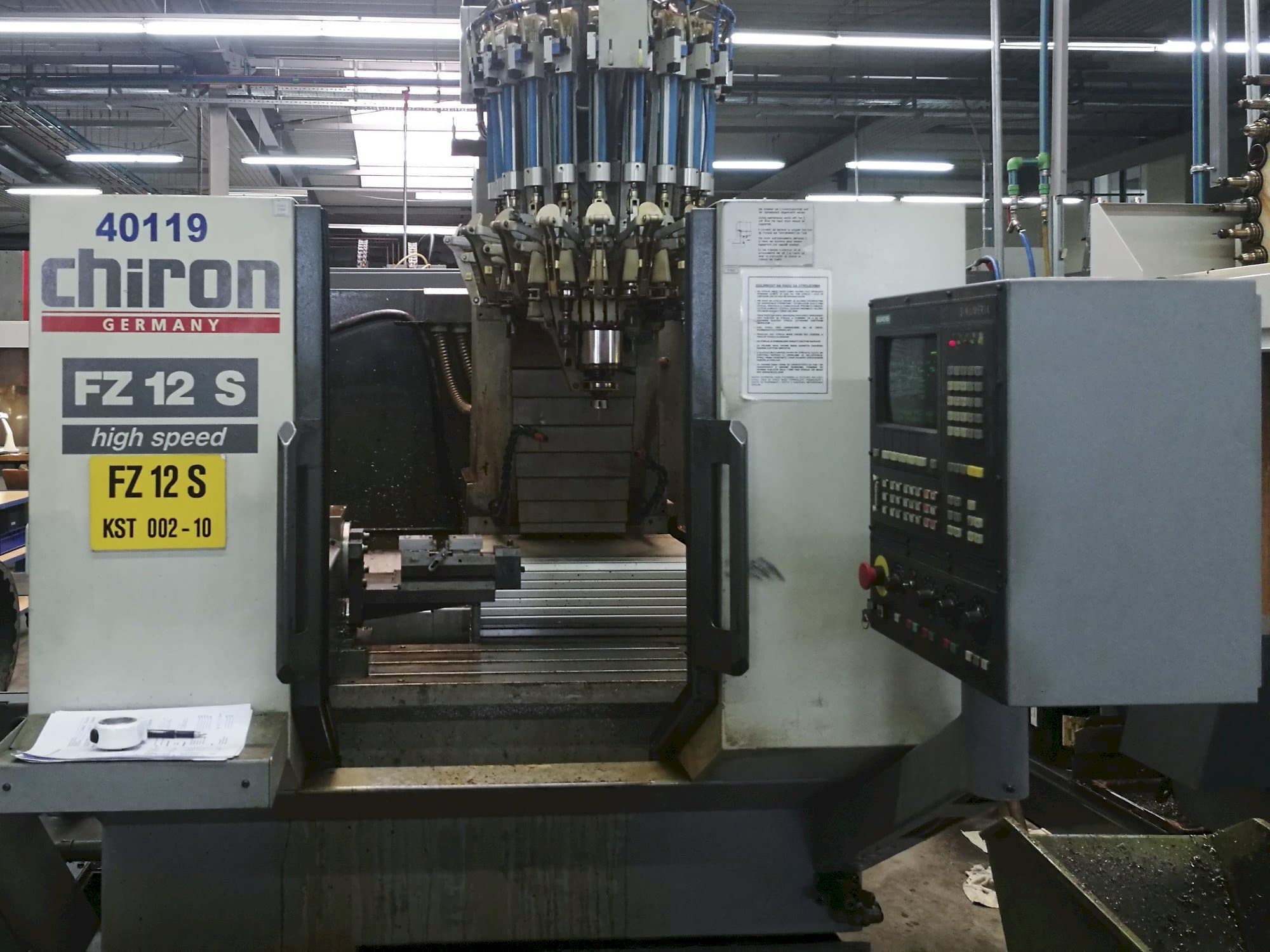

This CHIRON FZ 12 S Vertical Machining Center was built in Germany in 1995. It is equipped with a SIEMENS SINUMERIK 810M control unit. This 3 axis machine works with a spindle speed up to 10500 rpm. It has been regularly maintained and has mainly worked with aluminium during the past. Several additional facilities, like an automatic tool changer and tool holder, are included in the price.

Overview

brand: CHIRON
year: 1995
MODEL: FZ 12 S
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 S

General Data

Measurements width: 2530 MM
Measurements depth: 3150 MM
Measurements height: 2900 MM
Machine weight: 3300 KG

Control Unit

Model: SINUMERIK 810M
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 550 MM
Y-AXIS Movement: 300 MM
Z-AXIS Movement: 425 MM

Table

Outer length: 950 MM
Outer width: 360 MM

Media

Main electronic connection: 400 V
Power consumption: 13 KVA
Chip conveyor: Yes

Additional Equipment

- AUTOMATIC TOOL CHANGER WITH 20 TOOL SLOTS
- 6X TOOL HOLDER SK30
- 4TH AXIS ROTARY UNIT 360°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
