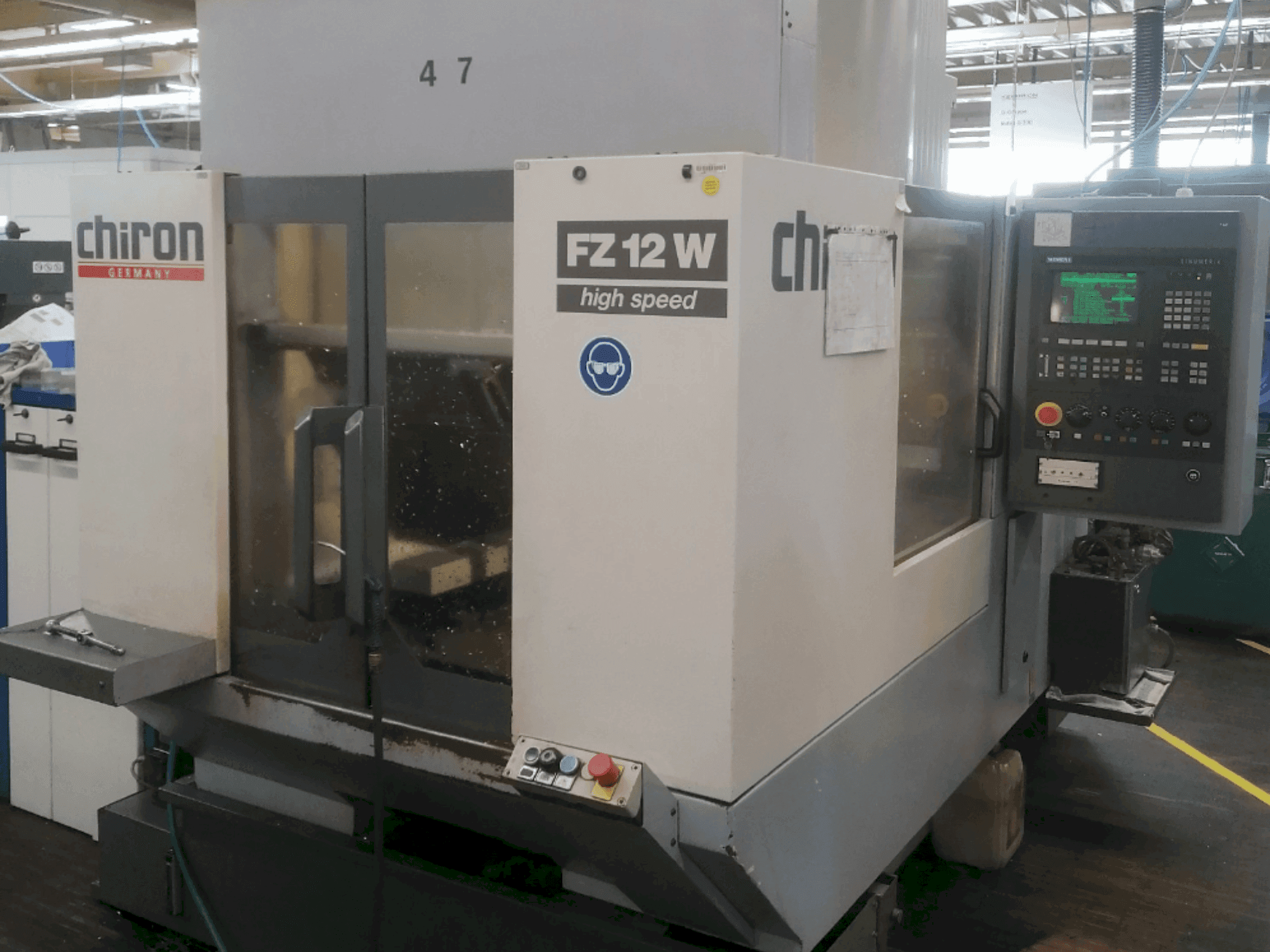

Front view of CHIRON FZ 12 W  machine

CHIRON - FZ 12 WDE-MIL-CHI-1995-00002

9,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp

This CHIRON FZ 12 W was manufactured in 1995. A vertical machining center featuring a SK30 spindle mount, maximum spindle speed of 10,000 rpm, and a tool magazine with 12 positions. It includes a Sinumerik 810D control system and rapid traverse rates up to 40 m/min. Table size measures 660 x 350 mm. Consider the opportunity to buy this CHIRON FZ 12 W vertical machining center. Contact us for more information.

Overview

  • brand: CHIRON
  • year: 1995
  • MODEL: FZ 12 W
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W

Control Unit

  • Brand: SIEMENS
  • Model: Sinumerik 810D

Main drive

  • Spindle speed range: 10000 rpm 1/MIN
  • Spindle motor power: 95 kW
  • Number of axis: 2

Movement

  • X-AXIS Movement: 550 mm
  • Y-AXIS Movement: 300 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Control voltage: 230v / 24v
      • - Power supply: 3x 400v, 50/60 hz
      • - Rated power: 16 kva
      • - Rated current: 34a
      • - Rapid traverse (xyz): up to 40 m/min
      • - Table size: 660 x 350 mm
      • - Tool magazine: 12 positions
      • - Tool changeover time: approx. 2 seconds

    Extra information

    • - When milling with an 80 mm diameter cutter, slight noise was audible in the spindle area.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
