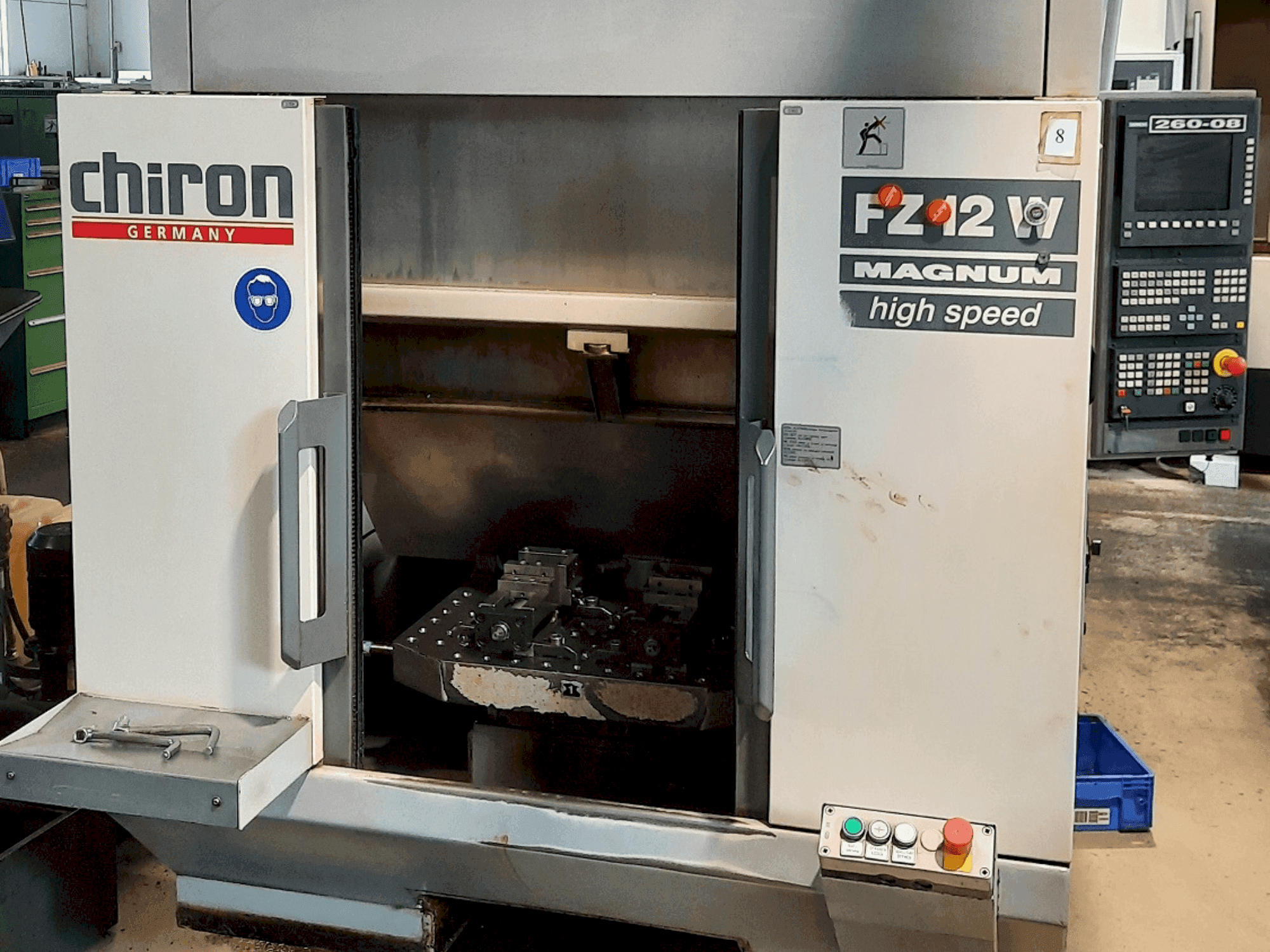

CHIRON FZ 12 W

Photo Gallery

CHIRON - FZ 12 WDE-MIL-CHI-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ 12 W For Sale | gindumac.com

This 3-axis CHIRON FZ 12 W was manufactured in 2003. It features a reinforced spindle drive with 10 kW at 100% and 18 kW at 25%, achieving speeds of 20-10,500 rpm. The machine includes a 20-tool automatic changer and a travel path of x=550, y=300, z=425 mm. It operates with a Sinumerik 840 D control system and has a chip container capacity of 125 liters. For more information about this machine, please reach out to us.

Overview

brand: CHIRON
year: 2003
MODEL: FZ 12 W
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W

Control Unit

Control Brand: SIEMENS

Movement

Number of Axes: 3
X-axis Travel: 550 mm
Y-axis Travel: 300 mm
Z-axis Travel: 425 mm

Technical Specification

Spindle Power: 10 kW
Spindle Speed: 10500 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Reinforced spindle drive
Nc memory expansion: 512 kb up to 1. 5 mb
Chip container capacity: 125 liters
Pump output: 150 liters/min at 1. 3 bar
Automatic tool changer: 20 tools; din 69871
Special features: operating hours and workpiece counter on the screen
Feed drive: ac motor; 40 m/min
Torque: 140 nm
Shuttle table (pallet)

Extra Information

Machine preparation for internal polarity Raised splash guard Control cabinet cooler as door-mounted device
