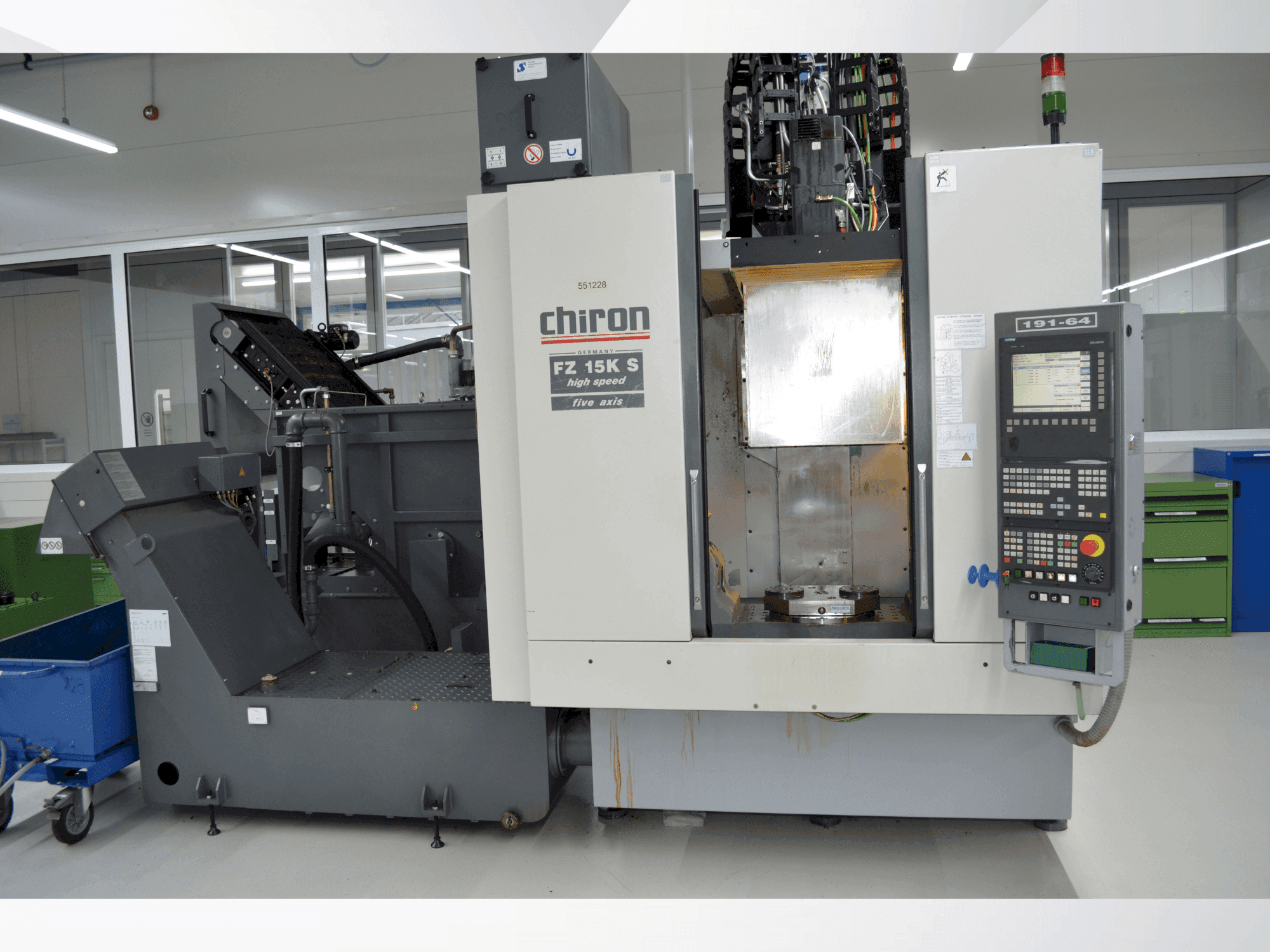

Front view of CHIRON FZ 15KS five axis high speed  machine

CHIRON - FZ 15KS five axis high speedDE-MIL-CHI-2008-00003

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis CHIRON FZ 15KS five axis high speed was manufactured in 2008. It features a main spindle drive with up to 14 kW power, a 48-tool magazine with HSK A63 tooling, and a rapid traverse rate of 60m/min. Travel distances are X 550mm, Y 400mm, Z 360mm. Currently operates as a 4-axis due to a deselected C-axis. If you are looking to get high quality milling capabilities consider the CHIRON FZ 15KS machine we have for sale. Contact us for more information.

Overview

  • brand: CHIRON
  • year: 2008
  • MODEL: FZ 15KS five axis high speed
  • production hours: 55000
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - CHIRON FZ 15KS five axis high speed

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK 840D

Main drive

  • Main motor power: 9.5 kW (100% ED), 14 kW (15% ED)
  • Number of axis: 5

Movement

  • X-AXIS Movement: 550 mm
  • X-AXIS Feed Force: 0.5g
  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Feed Force: 1.0g
  • Y-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Movement: 360 mm
  • Z-AXIS Feed Force: 1.2g
  • Z-AXIS Rapid traverse: 60 m/min

Turret

  • Tool taper: HSK A63

Tools

  • Slots in storage: 48
  • Max weight: 5 kg
  • Max tool diameter: 82 mm
  • Max tool length: 125 mm

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Coolant system HL 450 / 900
    • - Internal cooling package with suction unit

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle drive ac motor
        • - Drilling capacity in st 60: diameter 30mm
        • - Thread cutting: m 24
        • - Milling capacity in st 60: 300 cm³/min
        • - 2-axis swivel device zas 280 - swivel angle: ±110° partial accuracy: ±6'' max. Transmittable torque: 1100 nm max. Speed: 30 min^-1 holding torque: 3800 nm
        • - Nc round disk face plate - diameter: 280mm max. Transport load: 320kg max. Transmittable torque: 700 nm holding torque: 2800 nm max. Speed: 45 min^-1
        • - Chiron lasercontrol single f500 transmitter-receiver distance: 1000mm
        • - Min. Tool diameter: >1mm
        • - Ejection height: 1050mm
        • - Container capacity: 150l
      • Qualitative Machine Benefits:
        • - C-axis is defective and has been deselected
        • - Machine is ready for use and is used in 4-axis operation
        • - Without base plate on the c-axis
        • - Lifting pump max. : 300l/min at 1. 3 bar

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
