- Chiron FZ 18 S Vertical Machining Center

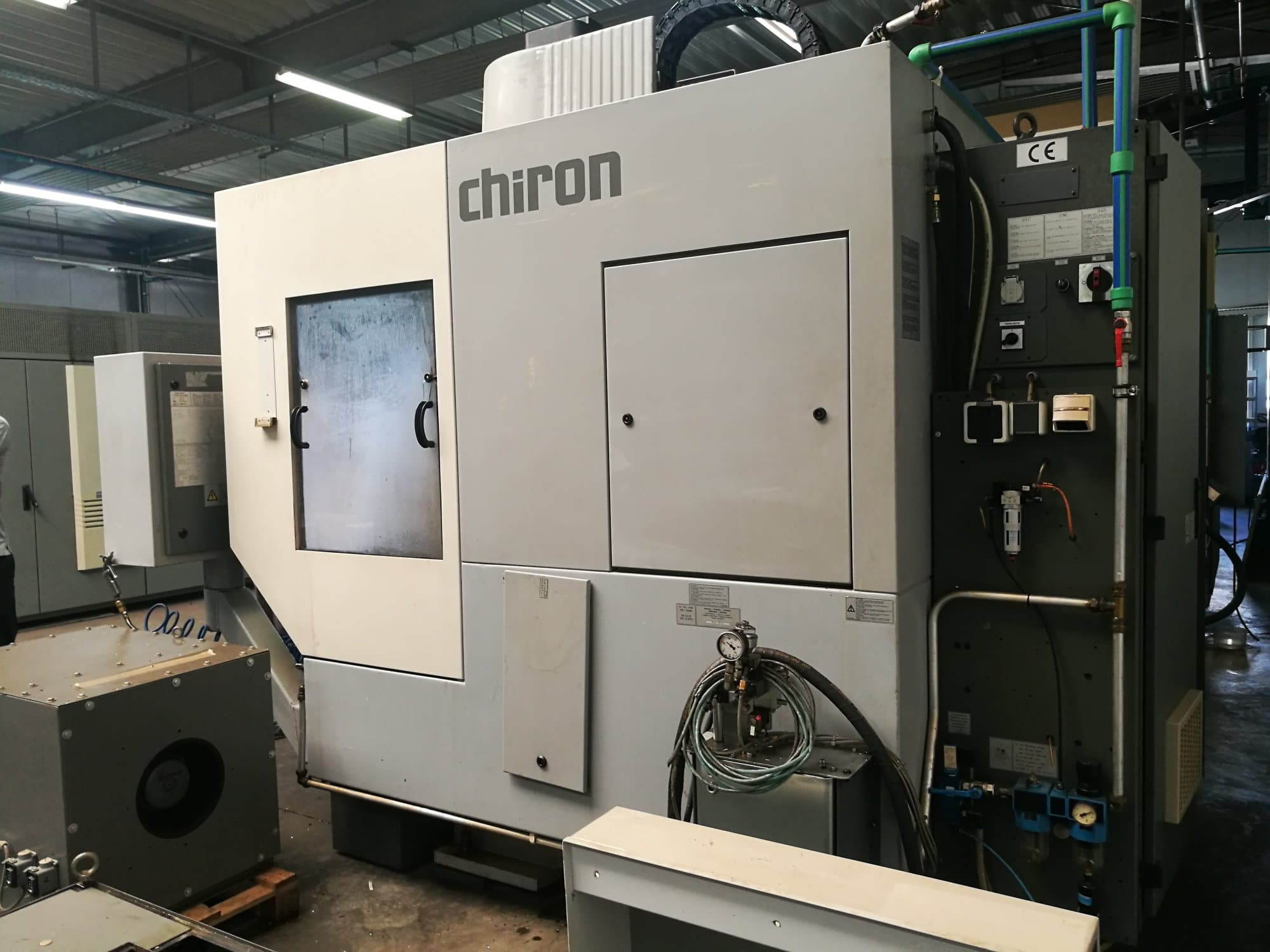

This Chiron FZ 18 S Vertical Machining Center from 1997 was manufactured in Germany and counts a production time of approximately 54000 working hours since then. Operated through a SIEMENS SINUMERIK 810M Control unit, this precise and well maintained machine has mainly worked with steel and aluminium parts during the past, producing ZEISS components.
Overview
- brand: CHIRON
- year: 1997
- MODEL: FZ 18 S
- production hours: 54000
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON FZ 18 S
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 810M
Dimensions
- Machine Depth: 3360 mm
- Machine Height: 3000 mm
- Machine Weight: 5500 kg
- Table Length: 1150 mm
- Table Width: 460 mm
Movement
- X-axis Travel: 750 mm
- Y-axis Travel: 430 mm
- Z-axis Travel: 425 mm
Technical Specification
- Spindle Speed: 10500 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Automatic Tool Changer with 20 Tool slots SK40
- 4th Axis rotary unit 360°
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
