CHIRON FZ08S

Photo Gallery

CHIRON - FZ08SHR-MIL-CHI-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

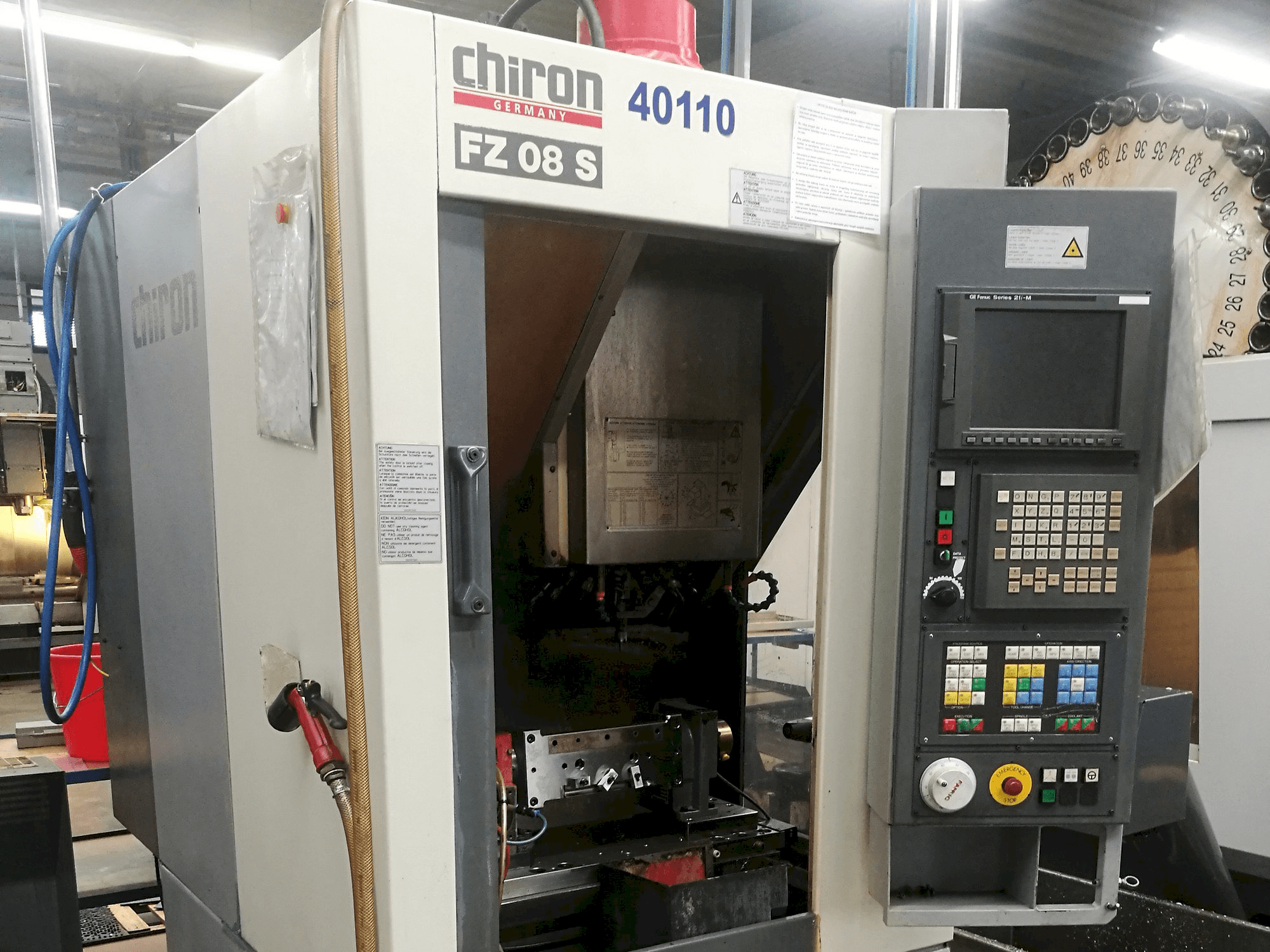

CHIRON FZ08S Vertical Machining Center

This CHIRON FZ08S Vertical Machining Center was made in 1999 in Germany and has been operative for 43000 hours. Equipped with a FANUC 21 iM Control unit, this machine can work with a spindle speed range up to 10500 rpm. Must be noted that it has a malfunction on the rotary unit Peiseler (4th axis), but machine can work normally with 3 axis.

Overview

brand: CHIRON
year: 1999
MODEL: FZ08S
production hours: 43000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - CHIRON FZ08S

General Data

Measurements width: 1000 mm
Measurements depth: 2000 mm
Measurements height: 2350 mm
Machine weight: 1820 kg

Control Unit

Model: 21 iM
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10500 rpm 1/MIN

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 425 mm
B-AXIS Movement: 360° MM

Table

Outer length: 620 mm
Outer width: 260 mm

Tools

Slots in storage: 12
Max tool diameter: 63 mm
Max tool length: 160 mm
Type of tool holder: HSK32

Media

Main electronic connection: 380 V
Power consumption: 19 kVA

Additional Information

Machine history

Material type: Aluminium
End product: Medical instruments parts
Industries: Medical industry

Machine Benefits

Technical Machine Benefits:
- - 4 axis rotary unit (with malfunction)
- - Small space required
- - Fast spindle
Qualitative Machine Benefits:
- - Regulary maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
