CHIRON - FZ18WDE-MIL-CHI-1990-00002

Name: CHIRON FZ18W
Brand: CHIRON
SKU: DE-MIL-CHI-1990-00002
Price: 7000 EUR
Availability: InStock

7,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ18W For Sale | gindumac.com

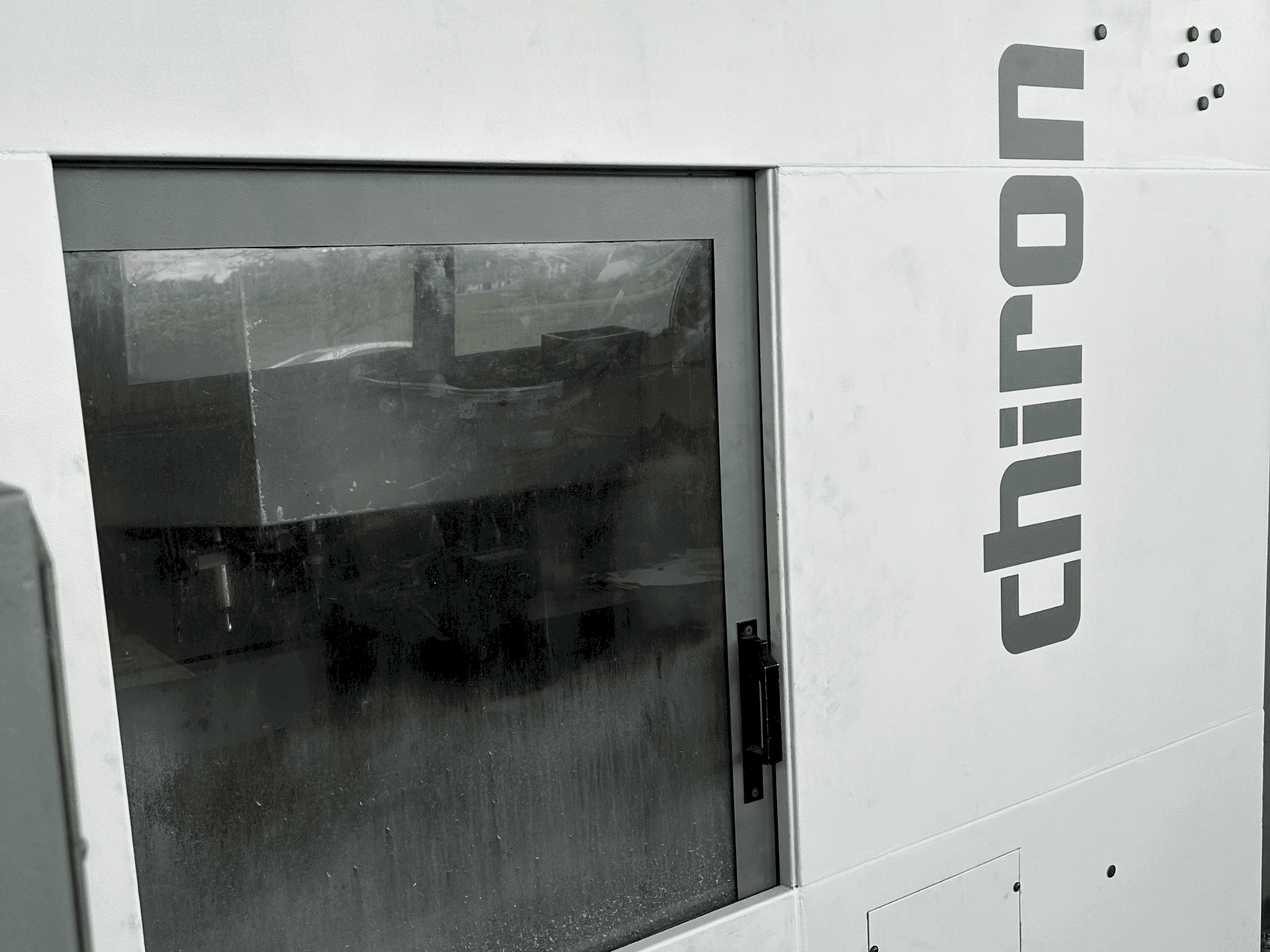

This 3-axis CHIRON FZ18W vertical machining center was manufactured in 1990. It features a SIEMENS SINUMERIK 810M control system, a spindle with a 70mm diameter in front bearing, and a SK40 tool holder. The machine has a rotary table diameter of 1050mm and can handle a maximum workpiece weight of 200 kg. If you are looking to get high-quality milling capabilities, consider the CHIRON FZ18W machine we have for sale. Contact us for more information about this machine.

Overview

brand: CHIRON
year: 1990
MODEL: FZ18W
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ18W

General Data

Measurements width: 1800 MM
Measurements depth: 2800 mm
Measurements height: 2900 mm
Machine weight: 3600 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 810M

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 425 mm

Workpiece

Workpiece weight: 2 x 100 kg

Tools

Type of tool holder: SK40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Geometry was overhauled 2 years ago and official protocol is available
Machine is particularly suitable for centring, drilling, reaming, threading, milling, spindling
A service module has been added to the control system from the last operation to enable diagnostics and data to and from the machine via the network
Documents such as all circuit diagrams are provided
Training documents are provided

Technical Machine Benefits

Rotary table diameter: 1050 mm
Clamping surface: length 950 mm x width 660 mm
Table height above floor: approx. 900 mm
Spindle diameter in front bearing: 70 mm
Spindle arrangement: vertical
Max. Torque: 60 nm
Total connected load: approx. 25 kva
Voltage: 380 v

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
