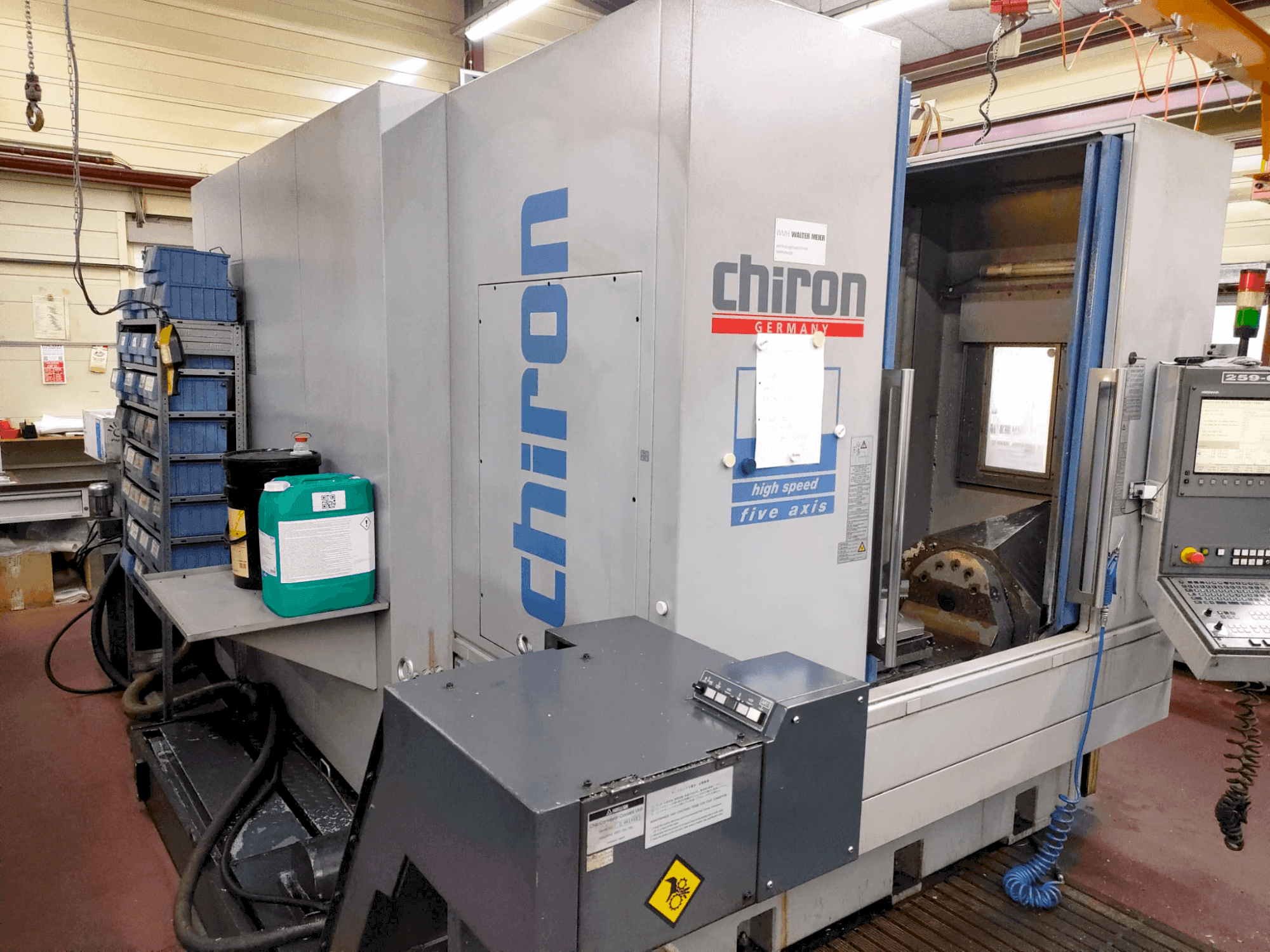

Front view of CHIRON Mill 800  machine

CHIRON - Mill 800CH-MIL-CHI-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis Chiron Mill 800 was manufactured in 2005. It features a spindle revised in September 2022, capable of 20000 rpm and a robust Heidenhain iTNC-530 control. The machine handles up to 380kg on its table with a tool capacity of 40. It has comprehensive cooling options and a full panelling setup. A significant opportunity to buy this Chiron Mill 800 vertical machining centre. Contact us for more information.

Overview

  • brand: CHIRON
  • year: 2005
  • MODEL: Mill 800
  • production hours: 41276
  • application type: Milling
  • Location: Switzerland
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: Heidenhain

Technical Information - CHIRON Mill 800

General Data

  • Measurements width: 3500 mm
  • Measurements depth: 6000 mm
  • Measurements height: 3300 mm
  • Machine weight: 11000 kg

Control Unit

  • Brand: Heidenhain
  • Model: iTNC-530

Main drive

  • Number of spindles: 1
  • Spindle speed range: 20000 1/MIN
  • Tool taper: HSK 63
  • Number of axis: 5

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 640 mm
  • Z-AXIS Movement: 550 mm

Table

  • Outer width: 380 mm
  • TSlots size: ISO 299
  • Distance between: 80mm

    Additional Equipment

    • - High Speed plus package
    • - Glass scales
    • - Manual control unit
    • - Renishaw OP-40 radio button
    • - Chiron-Lasercontrol
    • - KOWAP belt filter system 40 bar
    • - Bio-alcohol cooling
    • - Blow-off gun
    • - Full panelling
    • - Hydraulic and pneumatic rotary feedthroughs

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High-speed capabilities, precision enhancements
      • Qualitative Machine Benefits:
        • - High precision and advanced monitoring features

      Extra information

      • - Model year might be inferred as the year it is described as a vertical machining center

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
