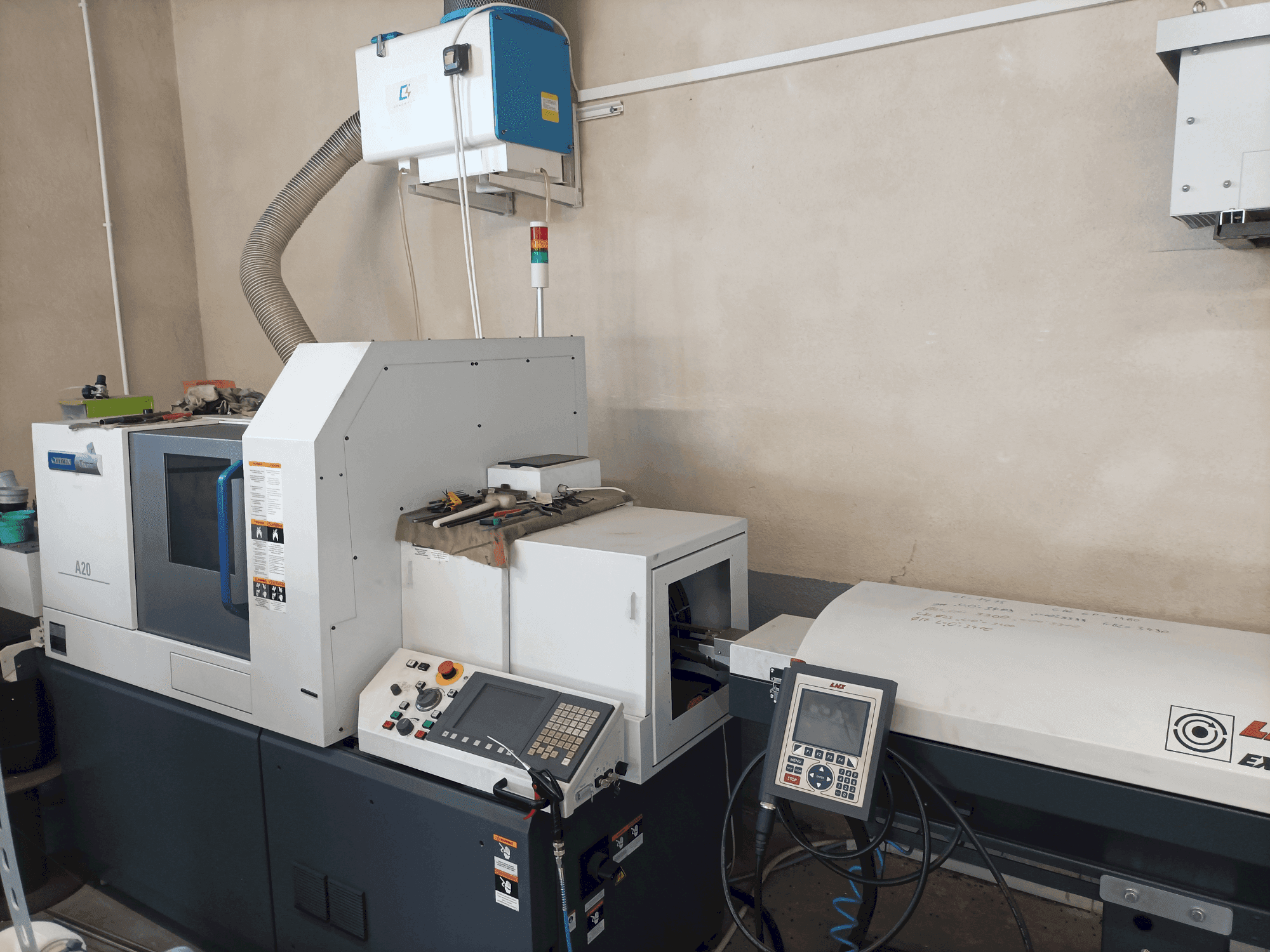

This 6-axis Citizen Cincom A20 was manufactured in 2018 and features a main spindle with a maximum bar diameter of 20 mm and a speed range up to 10,000 rpm. It includes a sub spindle and driven tools with a tool system supporting up to 21 tools. The machine offers rapid traverse rates up to 32 m/min and comes with an LNS Express 220 bar feeder. Consider the opportunity to buy this Citizen Cincom A20 swiss type turning machine. Contact us for more information.
Overview
- brand: Citizen
- year: 2018
- MODEL: Cincom A20
- application type: Turning
- Location: Poland
- machine type: Swiss Type Turning Machine
- control unit brand: CINCOM
Technical Information - Citizen Cincom A20
Control Unit
- Control Brand: CINCOM
Dimensions
- Machine Depth: 2120 mm
- Machine Height: 1750 mm
- Machine Weight: 2300 kg
Movement
- Number of Axes: 6
Technical Specification
- Spindle Power: 37 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- Bar feeder with magazine for bars up to 3 m
- Diameter range: 2–20 mm
- Automatic bar change system
- Other accessories
Machine Benefits
Technical Machine Benefits
- Rapid traverse: axis x1: 18 m/min axes y1, z1, x2, z2: 32 m/min
Extra Information
Workpiece Main Spindle: Max bar diameter: 20 mm Max machining length: 200 mm Main spindle drive power: 37 kW Spindle speed range: 10000 rpm Spindle indexing – C-axis: 0001 ° Sub Spindle: Max bar diameter: 20 mm Max pick-off length: 80 mm Sub spindle drive power: 15 kW Spindle speed range: 8000 rpm Spindle indexing – C-axis: 0001 ° Tools Driven Tools: Number of tools: 4 Speed range: 6000 rpm Drive power: 075 kW Tool System: Max number of tools: 21 For turning: 5 For drilling (fixed): 4 front / 8 rear
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
