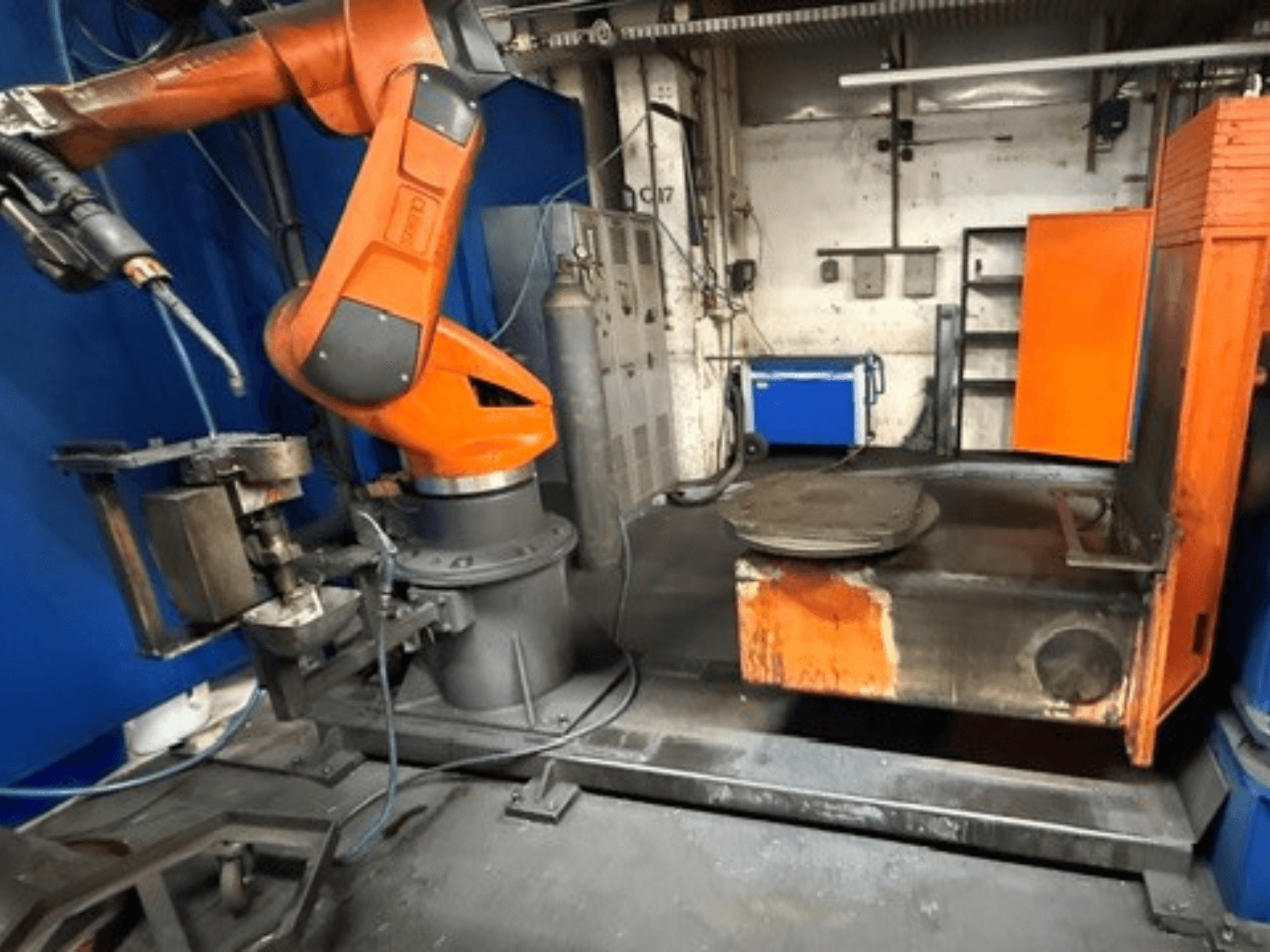

CLOOS C50 welding robot in a front view, featuring an orange robotic arm and a metal work table.

CLOOS C50 welding cell

Photo Gallery

Video gallery

16,000 €

gindumac price

(Ex works)

Get an official quote

CLOOS - C50 welding cellDE-WEL-CLO-2012-00001

Name: CLOOS C50 welding cell
Brand: CLOOS
SKU: DE-WEL-CLO-2012-00001
Price: 16000 EUR
Availability: InStock

16,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used CLOOS C50 welding cell For Sale | gindumac.com

Welding robot manufactured in 2012. This CLOOS C50 welding cell features a QRC 350 robot model and includes a Qineo Pulse 450 welding power source. The system is equipped with a linear track axis configuration, mechanical torch cleaning station, and dual-station components. It also has protective safety enclosure fencing and rotatable workpiece positioners. If you are looking to get high-quality welding capabilities, consider the CLOOS C50 welding cell we have for sale. Contact us for further details.

Overview

brand: CLOOS
year: 2012
MODEL: C50 welding cell
application type: Welding
Location: Germany
machine type: Welding Robot

Technical Information - CLOOS C50 welding cell

Movement

Number of Axes: 10

Additional Information

- Robot Model: QRC 350 (girOX QRC 350)

- Control Version: QC6

- Welding Power Source: Qineo Pulse 450 (CAN)

- Power Supply: 400 V / AC, 3-Phase, 50 Hz

- Connected Load: 12 kVA (System Sheet specifies 45 kVA max system load capability)

- Back-up Fuse Required: 25 A (System Circuitry specifies max 63 A)

- Control Cabinet Dimensions: 800 mm x 1900 mm x 600 mm

- Control Cabinet Weight: 300 kg

- Peripheral Components Included:

* Linear track axis configuration

* Mechanical torch cleaning station

* Dual-station components (Station 1 & Station 2 Manax operating pendants)

* Dual safety light curtains (Leuze MLD310 / 0-8 Meter)

* Protective safety enclosure fencing with automated swing doors

* Rotatable/tiltable workpiece positioners (Positioner 1 Axis 8/9 & Positioner 2 Axis 10/11)

* Grounding cable assembly: 95 mm²

* Potential equalization wiring: 50 mm²

- Pneumatic Requirements: Compressed air supply approx. 6 bar, integrated regulator set to 5.5 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
