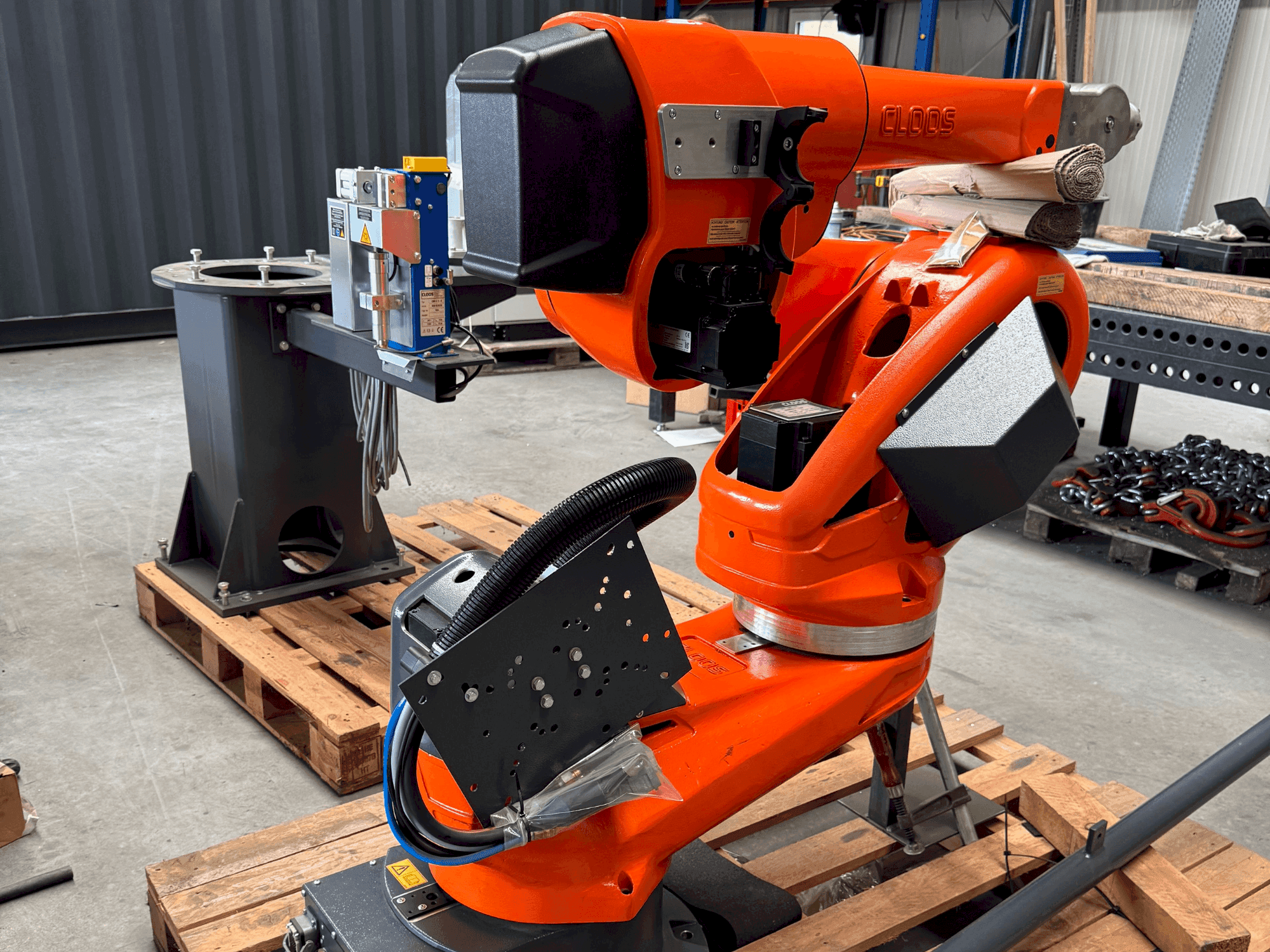

CLOOS - QIROX QRC 350-EDE-WEL-CLO-2019-00001

Extra Information

Robotics and Control Unit Max. payload: 15 kg Working range: 0–4500 mm Digital inputs/outputs: 16 Serial interface: Yes CAN bus: Yes USB interfaces: 2 Flash memory: 8 GB Buffer module: 24 V Expandable to up to 12 axes Welding Technology Power source: Included Welding interface: Integrated Welding and function test: Included Torch cleaning: CMR-8-C torch cleaning device, upright Robotic welding torch: Included Sensors Tactile sensor: Yes Arc sensor: Included Technical Data of Workpiece Positioner Load capacity: 10 kN Nominal torque: max. 1600 Nm Tilting moment: max. 8800 Nm Mass moment of inertia: 900 kgm² Rotation range: +,- 360° Swivel range: 370° Welding Fume Extraction Extraction capacity: 3000 - 4320 m³/h Motor power: 5.5 kW Connection voltage: 3 x 400V/50 Hz Noise level: 65 dB(A) Weight: 640 kg Dimensions (W x D x H): 1413 x 1413 x 2110 mm
