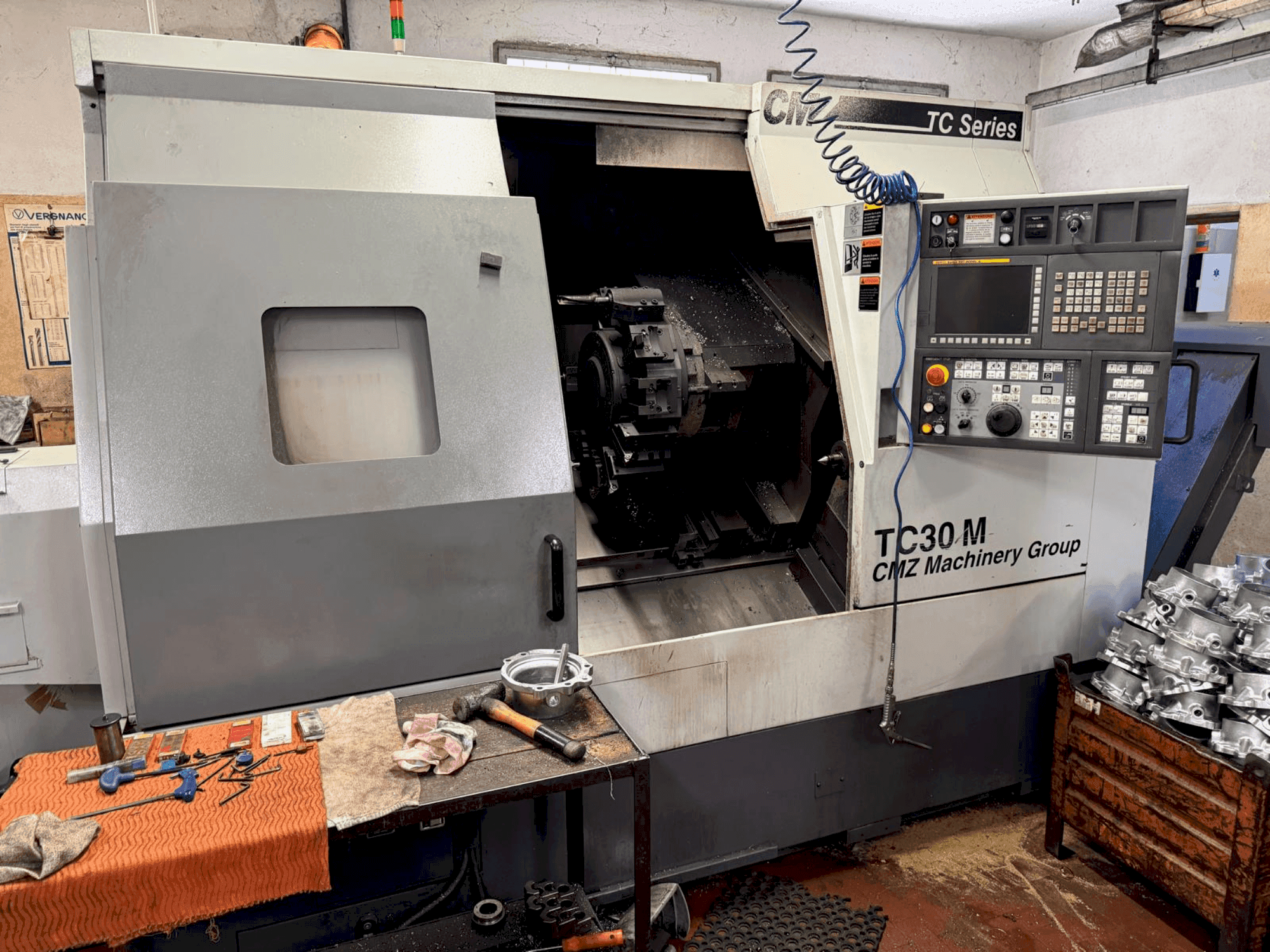

Front view of CMZ TC30M  machine

CMZ - TC30MIT-TUR-CMZ-2015-00001

70,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis CMZ TC30M lathe was manufactured in 2015. It features a Fanuc 32I-T control, a maximum turning diameter of 512mm, and a bar capacity of 77mm. The spindle operates at speeds up to 3500rpm with a power of 27KW. Includes a 12-tool turret with live tools capable of 4000rpm. With 5080 working hours, the CMZ TC30M machine we have for sale represents a robust addition to any machining fleet. Contact us for further details.

Overview

  • brand: CMZ
  • year: 2015
  • MODEL: TC30M
  • production hours: 5080
  • application type: Turning
  • Location: Italy
  • machine type: Turn-Mill Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - CMZ TC30M

General Data

  • Measurements width: 2200 MM
  • Measurements depth: 4450 MM
  • Measurements height: 2100 MM
  • Machine weight: 7100 KG

Control Unit

  • Model: 32I-T
  • Brand: FANUC

Main drive

  • Spindle speed range: 3500 1/MIN
  • Spindle motor power: 27 kw

Movement

  • X-AXIS Movement: 315 mm
  • Z-AXIS Movement: 800 mm

    Additional Equipment

    • - 12 tools on the turret with live tooling capability

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max turning diameter: 512 mm
        • - Spindle nose: asa8
        • - High spindle speed and power, live tooling capabilities.
        • - Max bar diameter: 77mm
        • - Speed of live tools: 4000rpm
      • Qualitative Machine Benefits:
        • - Precision with fanuc control, increased productivity with versatile tooling options.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
