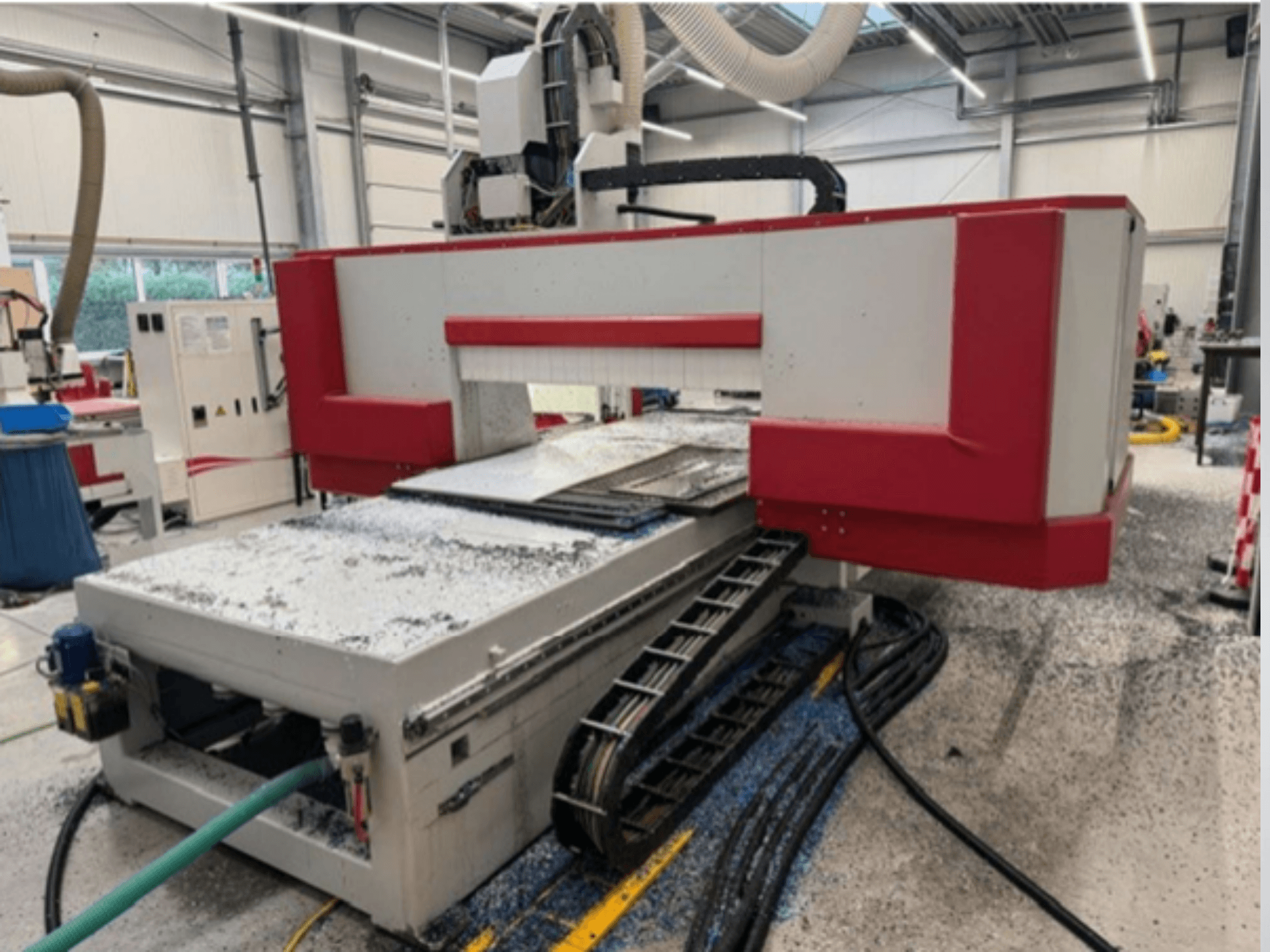

Red and gray CNC machine in a workshop, side view showing material table, coolant hose, and sawdust on the floor.
Red and gray CNC machine in a workshop, side view showing material table, coolant hose, and sawdust on the floor.

COSMEC - Conquest 515 5-AXIX-500DE-CNC-COS-2020-00001

110,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis COSMEC Conquest 515 5-AXIX-500 was manufactured in 2020. It features a robust welded steel construction for high rigidity and dual gantry motorization for precise X-axis control. Equipped with a 5-axis spindle, liquid cooling, and a 12-station tool changer, it excels in machining wood, wood-based materials, and plastics. Consider the opportunity to buy this COSMEC Conquest 515 5-AXIX-500 CNC processing center. Contact us for more information about this machine.

Overview

  • brand: COSMEC
  • year: 2020
  • MODEL: Conquest 515 5-AXIX-500
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Processing Center

Additional Information

  • Max. travel speed X-axis: 60 m/min

  • Max. travel speed Y-axis: 60 m/min

  • Max. travel speed Z-axis: 24 m/min

  • Vector speed: 80 m/min

  • 5-axis fork head Z 700:

  • Maximum rotation speed: 750°/2 sec

  • C-axis rotation: +/- 360°

  • Swivel axis: +/- 110°

  • Machining area: 4210 x 1605 mm (enlarged working area)

  • Max. workpiece height: 500 mm

  • Comec Designed work table: Phenolic resin table, grid size 50 x 50 mm, divided into two working areas

  • 18 kW main spindle, liquid cooling, HSK 63 F tool holder

  • Spindle speed: 500 - 24000 rpm

  • 2

    • x Tool Changers:

    • Integrated 12-station tool changer for HSK 63 F tool interface

    • Max. tool diameter 150 mm if adjacent station is free

    • Max. tool diameter 120 mm if adjacent station is occupied

    • Max. tool weight: 6 kg

    • Max. weight of tool and holder: 40 kg

    • Tool Length Measurement: Station for automatic length measurement of the tool

  • Compressed Air Supply: 7 bar

  • Extraction Capacity: Min. 2200 m³/h

  • Extraction Speed: Min. 28 m/s

  • Suction Connection: Ø 160 mm

  • Latest Version of Software: 5-axis simultaneous machining software through maintenance contract

  • Vacuum System: Vacuum system for pendulum machining with constant suction power in both working areas

  • Vacuum Pump: 250/300 m³/h (50/60 Hz), power: 5.5 kW

  • Dust-Protected Control Cabinet: Includes air conditioning unit, mobile control panel

  • The technical data and descriptions are for informational purposes only and not binding.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
