➤ Used Crippa BASIC 42.1 For Sale | gindumac.com

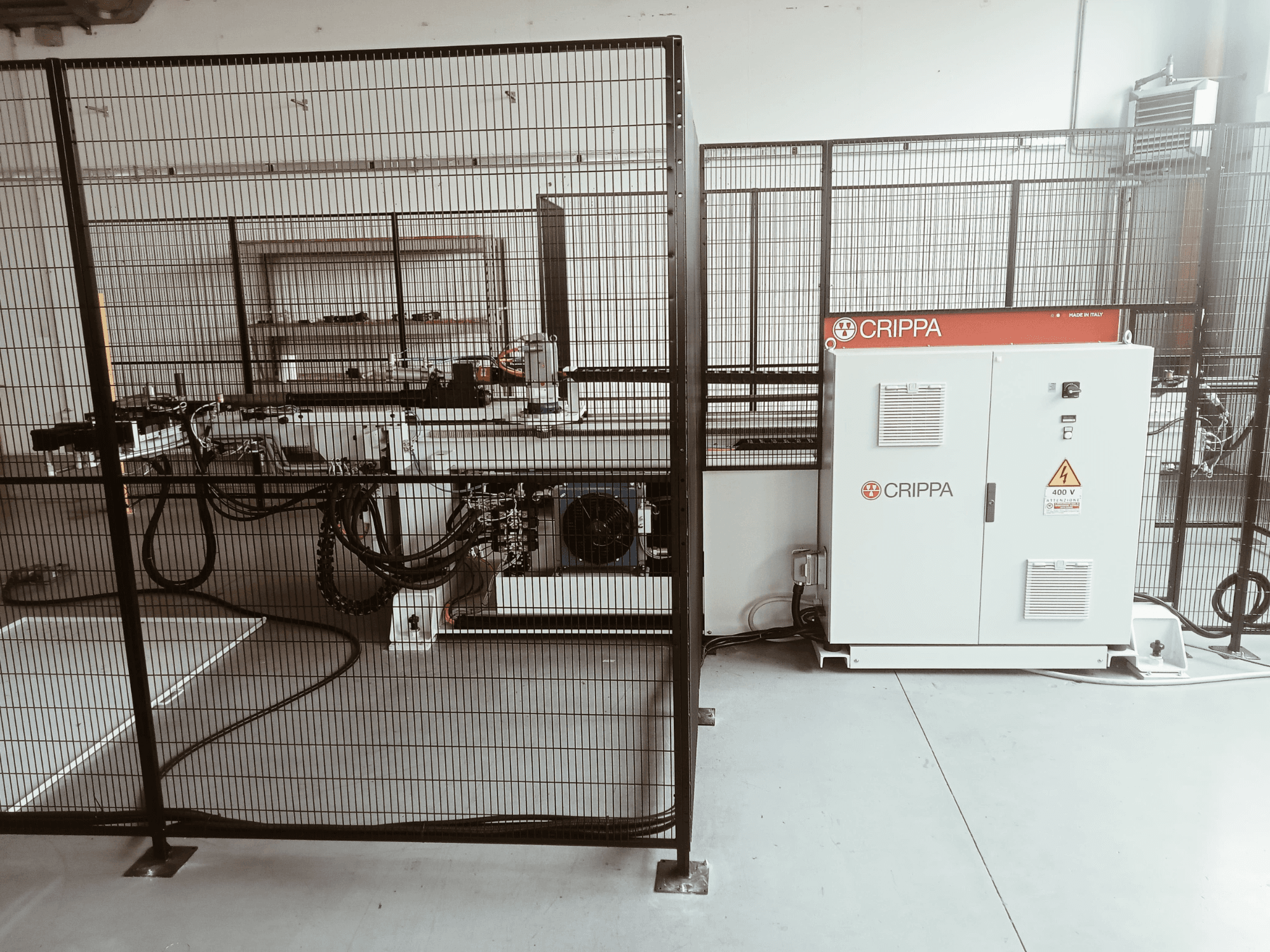

This Crippa BASIC 42.1 was manufactured in 2024. It is a robust tube bending machine capable of handling steel tubes up to 40x1.5 mm and aluminum, copper, or other tubes up to 42x2.5 mm. It features a maximum bending radius of 170 mm and can accommodate tube lengths up to 4650 mm. Consider the opportunity to buy this Crippa BASIC 42.1 tube bending machine. Contact us for more information about this machine.

Overview

brand: Crippa
year: 2024
MODEL: BASIC 42.1
production hours: 150
application type: Other Sheet Metal Machinery
Location: Italy
machine type: Sheet Metal Machine

Technical Information - Crippa BASIC 42.1

Additional Information

Flexural strength (Rs=250 N/mm2): 42x2 mm
Max tube diameter (Steel): 40x1.5 mm
Max diameter for Al Cu Ot tube: 42x2.5 mm
Max bending radius: 170 mm
Useful length of standard tube in clamp / through: 3000 / 4650 mm
Max passage diameter inside the carriage: 42 mm
Maximum height between the bend / overall dimensions of the equipment: 80 / 150 mm
Equivalent sound pressure level in operator position OP: 75.54 dB(A)
Sound power level: 95.78 dB(A)
Peak sound power level in operator position OP: 100.00 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
