➤ Used DAEWOO PUMA 2000 SY For Sale | gindumac.com

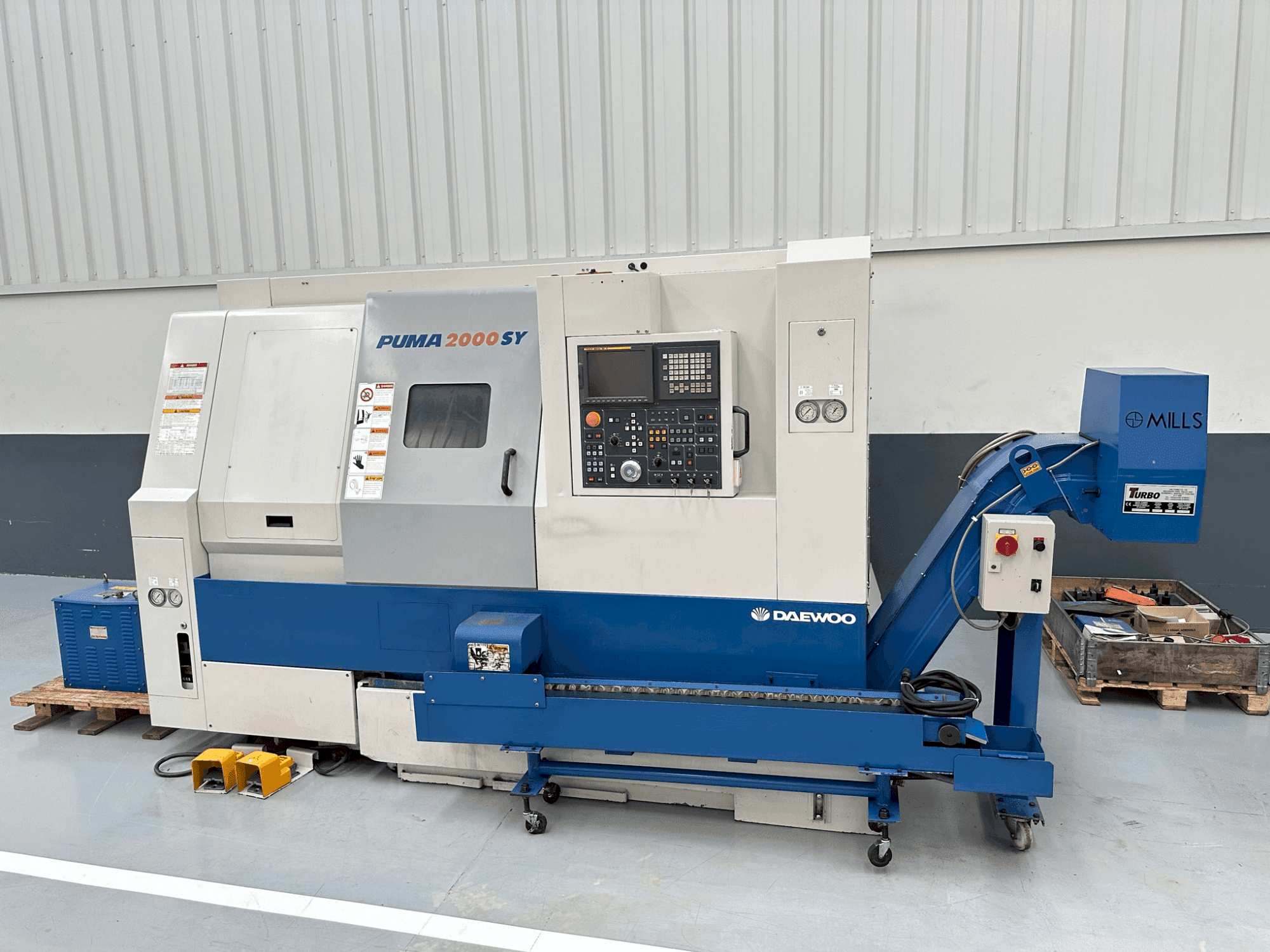

This 5-axis DAEWOO PUMA 2000 SY turn-mill centre was manufactured in 2003. It features a max turning diameter of 330 mm, length of 510 mm, and rapid feeds up to 24,000 mm/min. Includes main and sub-spindle capabilities, both with C-axis, and a 12-station turret with live tooling. Consider the opportunity to buy this DAEWOO PUMA 2000 SY turn-mill centre. Contact us for more information about this machine.

Overview

brand: DAEWOO
year: 2003
MODEL: PUMA 2000 SY
application type: Turning
Location: Spain
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DAEWOO PUMA 2000 SY

Control Unit

Control Brand: FANUC

Movement

X-axis Travel: 250 mm
Y-axis Travel: 50 mm
Z-axis Travel: 580 mm

Additional Information

Machine Benefits

Technical machine benefits:

X Axis Traverse: 250 mm
Z Axis Traverse: 580 mm
Y Axis Traverse: ±50 mm
B Axis Traverse: 580 mm
Rapid Feed X Axis: 20000 mm/min
Rapid Feed Z Axis: 24000 mm/min
Rapid Feed Y Axis: 7500 mm/min
Rapid Feed B Axis: 20000 mm/min
Max. Swing Over Bed: 600 mm
Max. Swing Over Saddle: 550 mm
Max. Turning Diameter: 330 mm
Max. Turning Length: 510 mm
Dimensions of Machine (L×W×H): 3118 × 1705 × 2076 mm
Weight (kg): 4850 kg
Total Installed Power: 50.7 kVA

Additional equipment

Living Tool Speed: 5000 rpm
Rotary Tool Spindle Motor Power: 5.5 kW
2 Axial Live Tool Holders: Included
2 Radial Live Tool Holders: Included
High Pressure Cutting Oil Pump (7 Bar): Included
Automatic Parts Catcher: Included
External Parts Conveyor: Included
Chip Conveyor: Included
Tool Presetter: Included

Extra information

Main Spindle Through Hole Diameter: 76 mm
Main Spindle Nose: A2#6
Main Spindle Speed: Up to 4500 rpm
Main Spindle Motor Power: 15 kW
Sub-Spindle Through Hole Diameter: 45 mm
Sub-Spindle Speed: Up to 6000 rpm
Sub-Spindle Motor Power: 7.5 kW
Main Spindle Chuck Diameter: 210 mm
Turret Stations: 12
Tool Size: 25 mm
Turret Indexing Time: 0.1 s
Sub-Spindle Chuck Diameter: 160 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
