DAEWOO PUMA 400

Photo Gallery

DAEWOO - PUMA 400ES-TUR-DAE-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

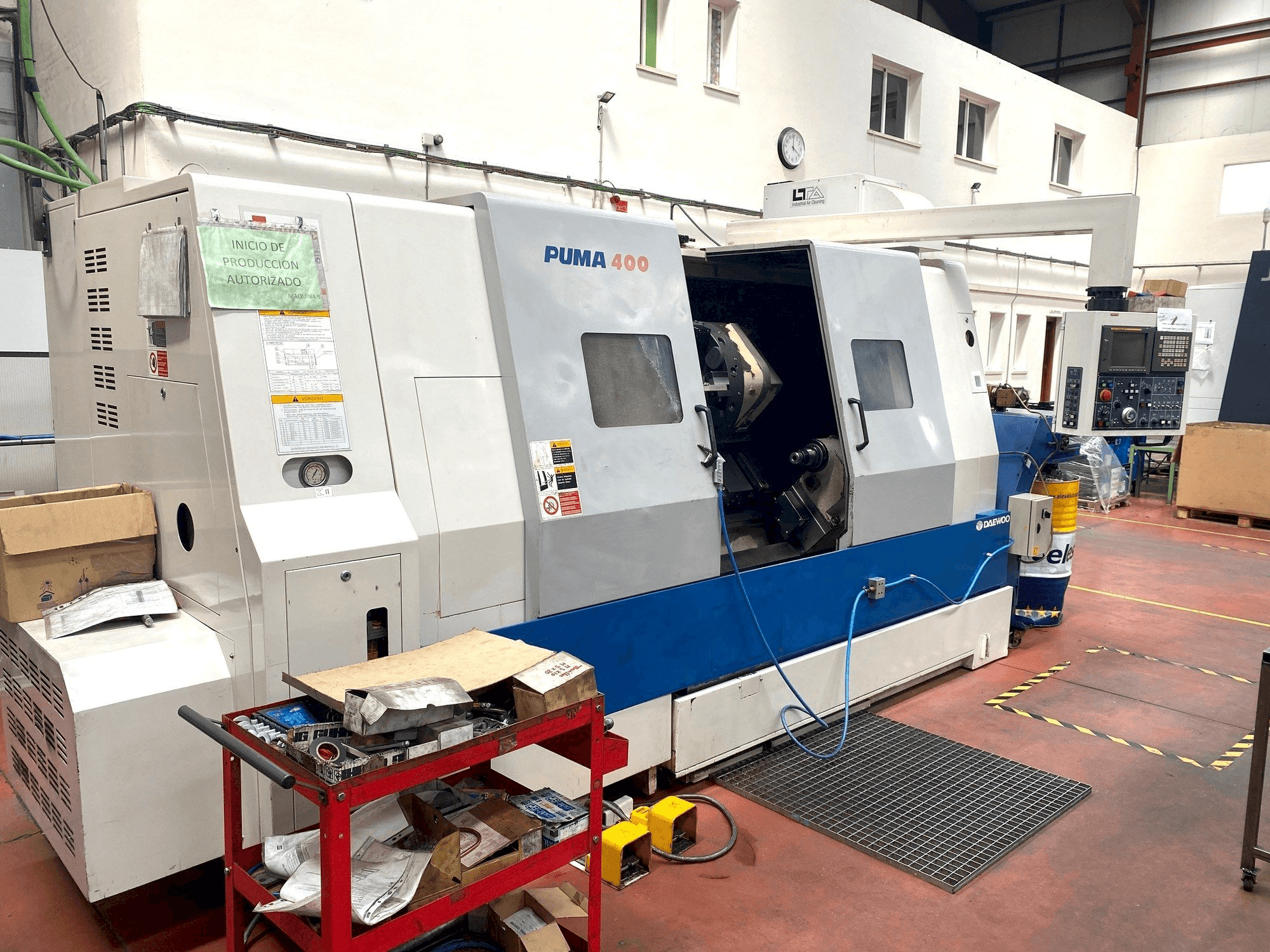

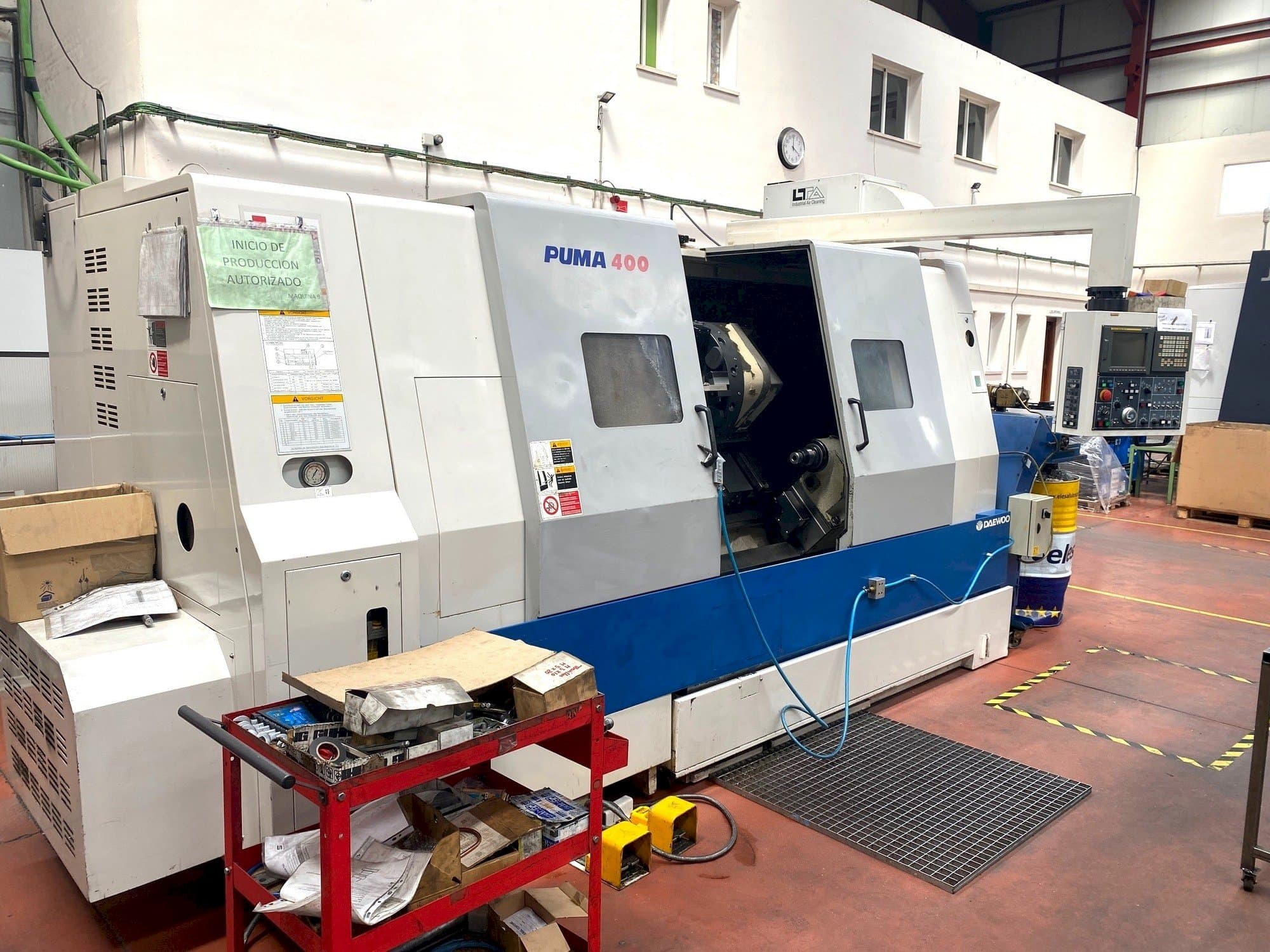

This DAEWOO PUMA 400 Lathe was built in the year 2002. It is operated through a FANUC Series 18i-T control unit. This 2 axis machine incorporates a spindle speed up to 2000 rpm and a turning length 1050 mm. It includes an hydraulic bi-directional turret and a platter opening and closing pedal. This machine is in good condition.

Overview

brand: DAEWOO
year: 2002
MODEL: PUMA 400
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DAEWOO PUMA 400

Control Unit

Control Brand: FANUC
Control Model: Series 18i-T

Dimensions

Machine Depth: 2387 mm
Machine Height: 2260 mm
Machine Weight: 9750 kg

Movement

Number of Axes: 2

Technical Specification

Max. Workpiece Diameter: 560 mm
Number of Tools: 12
Spindle Power: 26 kW
Spindle Speed: 2000 RPM

Additional Information

Additional equipment

Platter opening and closing pedal
Hydraulic bi-directional turret

Machine Benefits

Qualitative Machine Benefits

Good condition

Technical Machine Benefits

Turning diameter max. : 560 mm
Turning length max. : 1050 mm
Distance between centers: 117 mm
Turning diameter max. : 480 mm
Turning diameter over bed: 700 mm
Plate diameter: 362 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
