- Dah Lih MCV 1020 BA Vertical Machining center

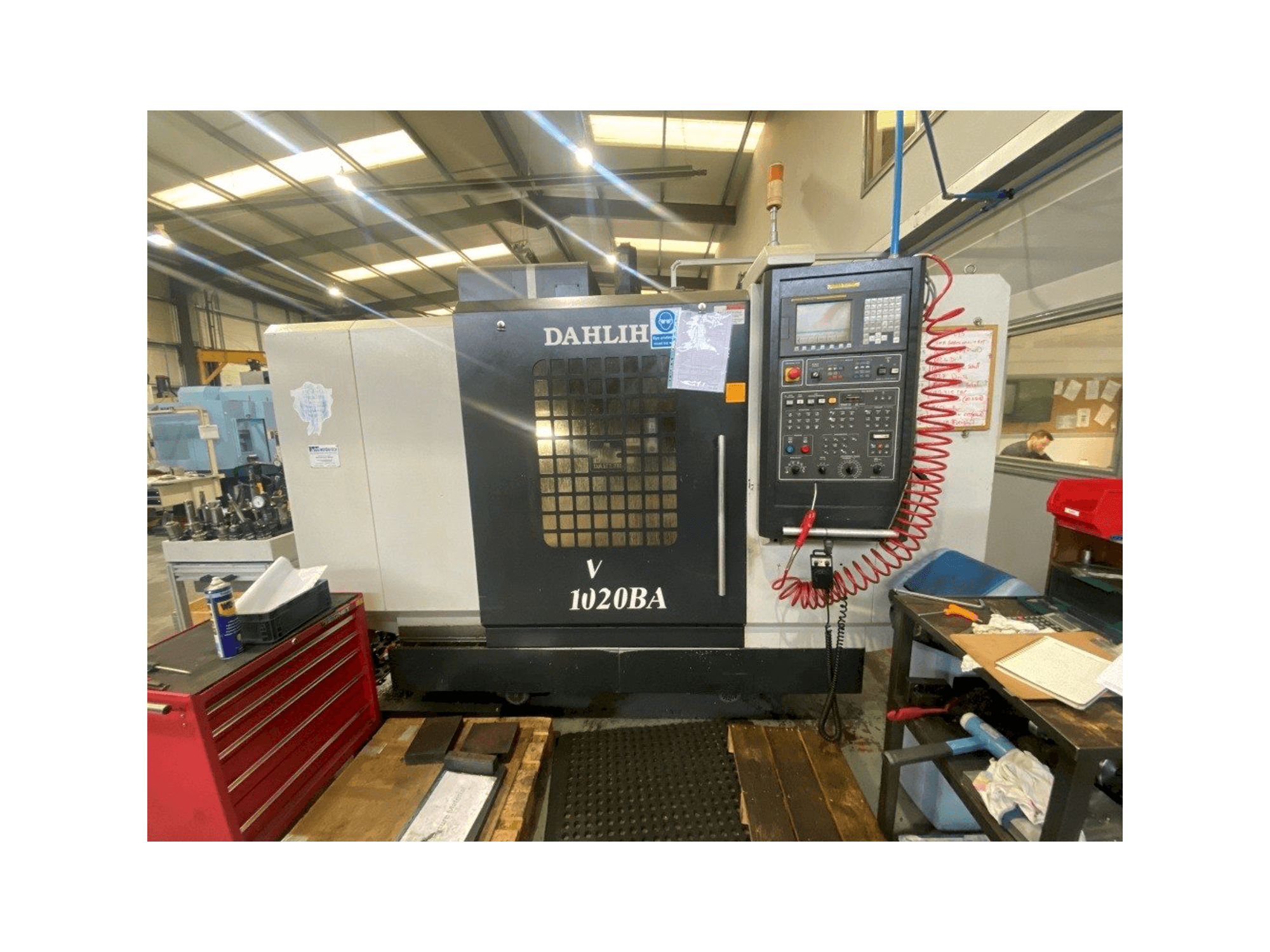

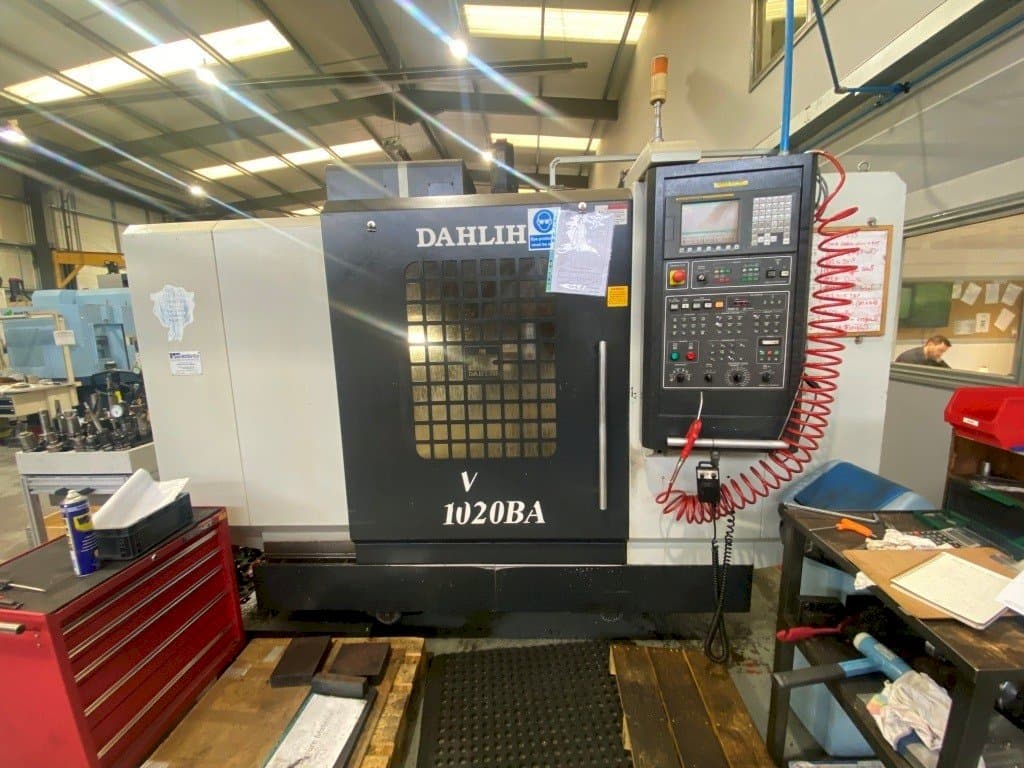

This Dah Lih MCV 1020 BA Vertical Machining center was manufactured in the year 2007 in Taiwan. It is equipped with a Fanuc Oi-MC control unit and has 4 axis. The machine has a spindle speed of 8000 rpm, is in very good condition and well maintained.
Overview
- brand: DAH LIH
- year: 2007
- MODEL: MCV 1020 BA
- application type: Milling
- Location: Ireland
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Fanuc
- GINDUMAC ID: IE-MIL-DAH-2007-00002
Technical Information
General Data
- Measurements width: 3260 mm
- Measurements depth: 3060 mm
- Measurements height: 2665 mm
- Machine weight: 6010 kg
Control Unit
- Brand: Fanuc
- Model: Oi-MC
- CNC main language: English
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 1/MIN
Movement
- X-AXIS Movement: 1020 mm
- Y-AXIS Movement: 550 mm
- Z-AXIS Movement: 560 mm
- A-AXIS Movement: 360 mm
Table
- Outer length: 1300 mm
- Outer width: 660 mm
- TSlots size: 5
Tools
- Slots in storage: 24
- Max weight: 7 kg
- Max tool diameter: 127 mm
- Max tool length: 300 mm
- Type of tool holder: BT 40
Media
- Main electronic connection: 380 V
Additional Equipment
- - 4th Axis with Chuck
Additional Information
- Industries: Sub contract machining
- Qualitative Machine Benefits:
- - Very good condition
Machine history
Machine Benefits
