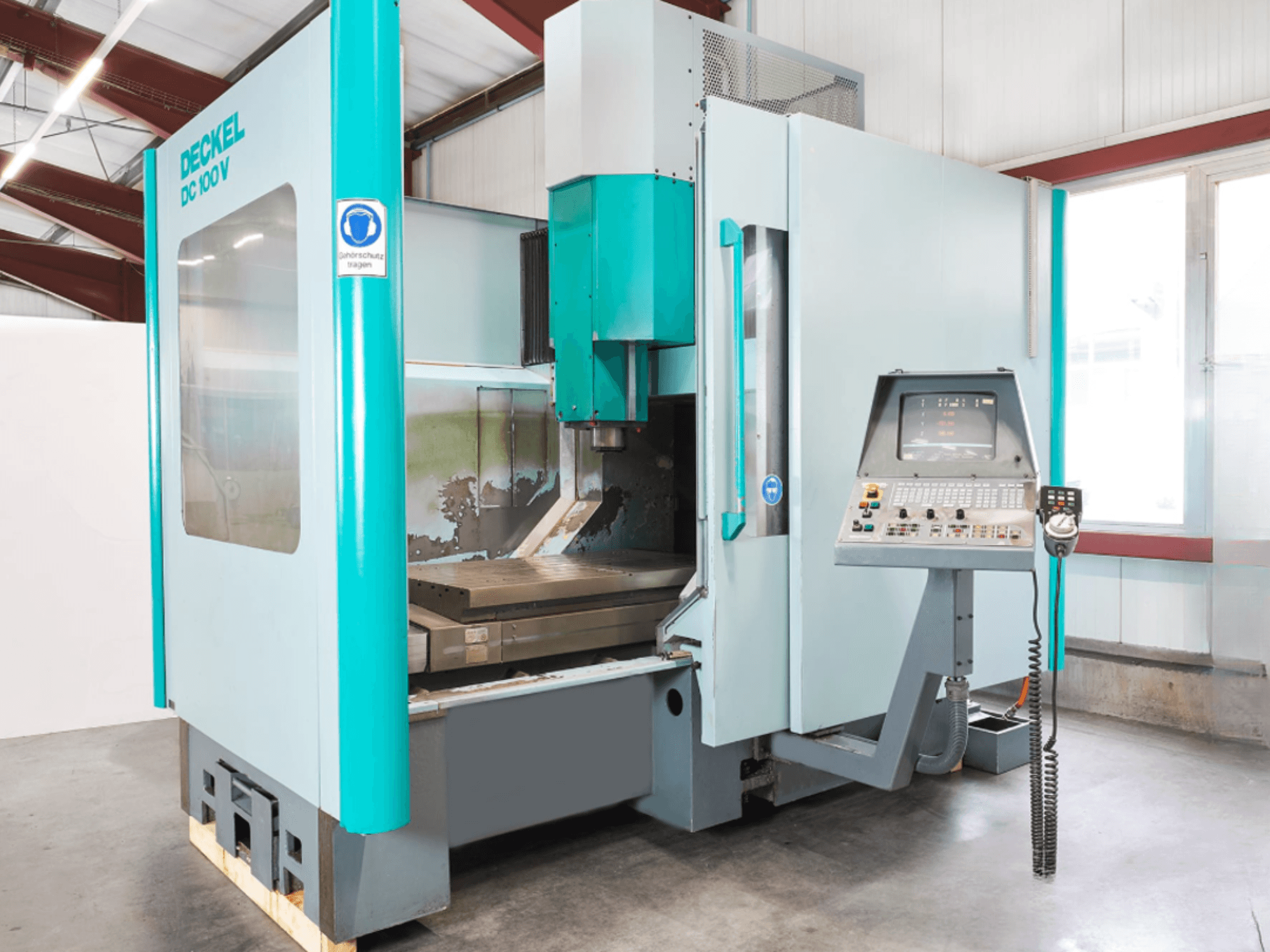

This 3-axis DECKEL DC 100V vertical machining centre was manufactured in 1994. It features a Dialog 112 control, a worktable of 1,250 x 800 mm, and a tool magazine with an automatic changer holding approximately 30 positions. The spindle operates at up to 8,000 rpm. Consider the opportunity to buy this DECKEL DC 100V vertical machining centre. Contact us for more information about this machine.
Overview
- brand: DECKEL
- year: 1994
- MODEL: DC 100V
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - DECKEL DC 100V
Dimensions
- Machine Height: 3000 mm
- Machine Length: 3700 mm
- Machine Weight: 9100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1000 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 8000 RPM
- Taper Size: SK 40
Additional Information
Control: Dialog 112
Worktable: 1,250 x 800 mm
Feed: X, Y, Z 1 – 10,000 rpm
Tool magazine: Automatic changer, approx. 30 positions
Dimensions: 3.7 x 3.7 x 3.0 m
Condition: Used, functional
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
