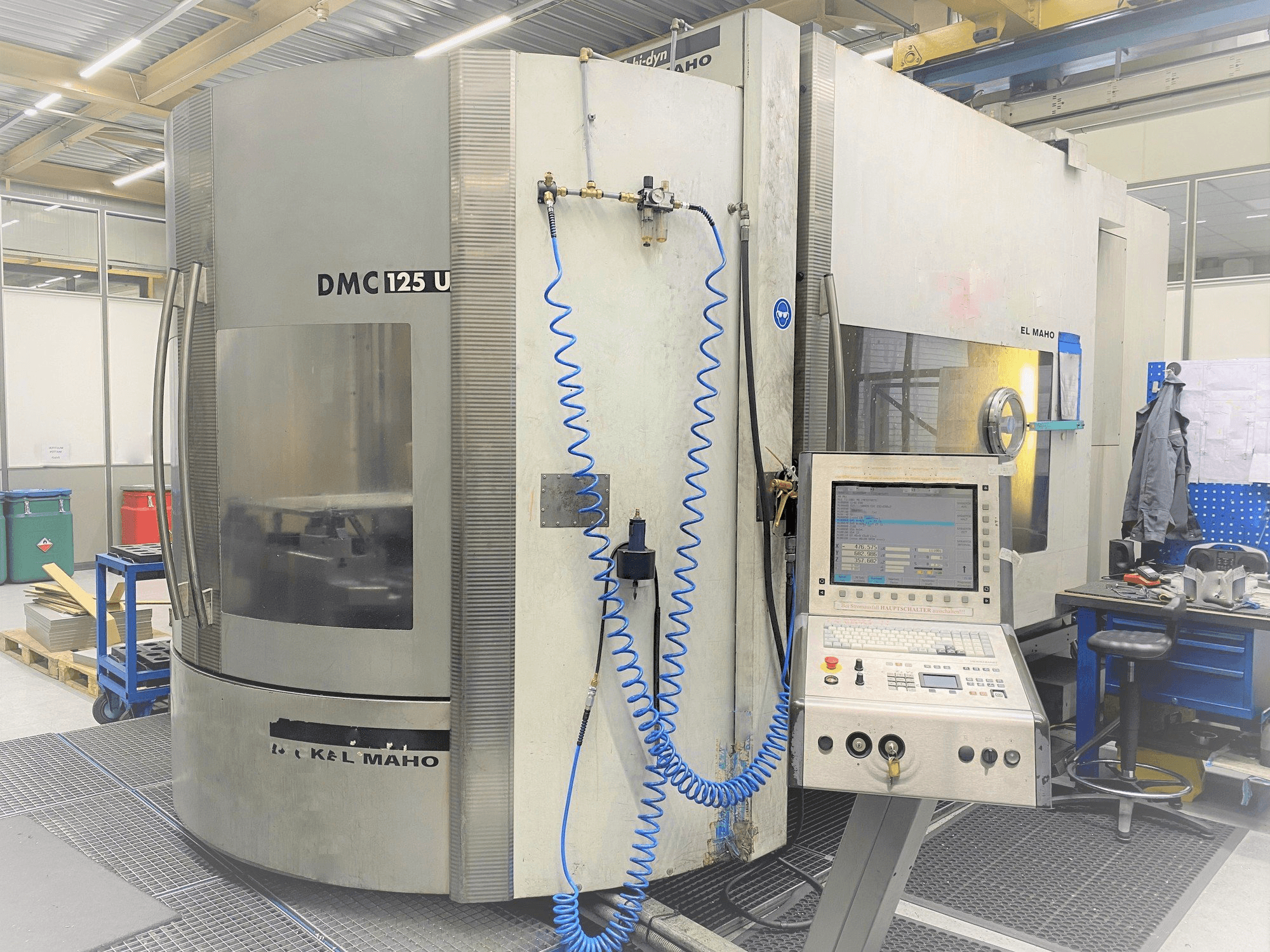

Front view of DECKEL MAHO DMC 125U hi-dyn machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMC 125U hi-dyn

Photo Gallery

DECKEL MAHO - DMC 125U hi-dynDE-MIL-DEC-2004-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMC 125U hi-dyn Universal Machining Center

This DECKEL MAHO DMC 125U hi-dyn Universal Machining Center was built in the year 2004. It has 89500 operating hours, of which 32000 are spindle hours. It is equipped with a Heidenhain MillPlus IT 3D path control unit. This 5 axis machine can works with a spindle speed range between 20 - 12000 rpm. It comes with 2 pallets, an automatic swivel milling head and a turntable changer. Complete documentation is available.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMC 125U hi-dyn
production hours: 32000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 125U hi-dyn

Control Unit

Control Brand: HEIDENHAIN
Control Model: MillPlus IT 3D path

Dimensions

Machine Depth: 3000 mm
Machine Height: 3100 mm
Machine Weight: 14300 kg
Table Length: 800 mm
Table Width: 630 mm

Movement

Number of Axes: 5
X-axis Travel: 1250 mm
Y-axis Travel: 880 mm
Z-axis Travel: 800 mm

Technical Specification

Number of Tools: 60
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Electronic handwheel MillPlus IT
Universal milling head with controlled B-axis SK50
Tool changer with pallet: 60 tool places
Coolant / band filter system
Tool holder: SK50 according to DIN 69871
NC rotary table with pallet carrier

Machine Benefits

Qualitative Machine Benefits

Complete documentation is available

Technical Machine Benefits

Main drive: integrated motor spindle sk50
Weight of tool magazine: 1400 kg
Tool changing device horizontal double gripper
Automatic swivel milling head
Transport dimension tool magazine (lxwxh): 2650 x 2000 x 2500 mm
Turntable changer
2 pallets: 1000 x 800 mm
Coolant tank: 900 liter
Coolant pressure ikz form through spindle center (ad)
Rotating inspection window
