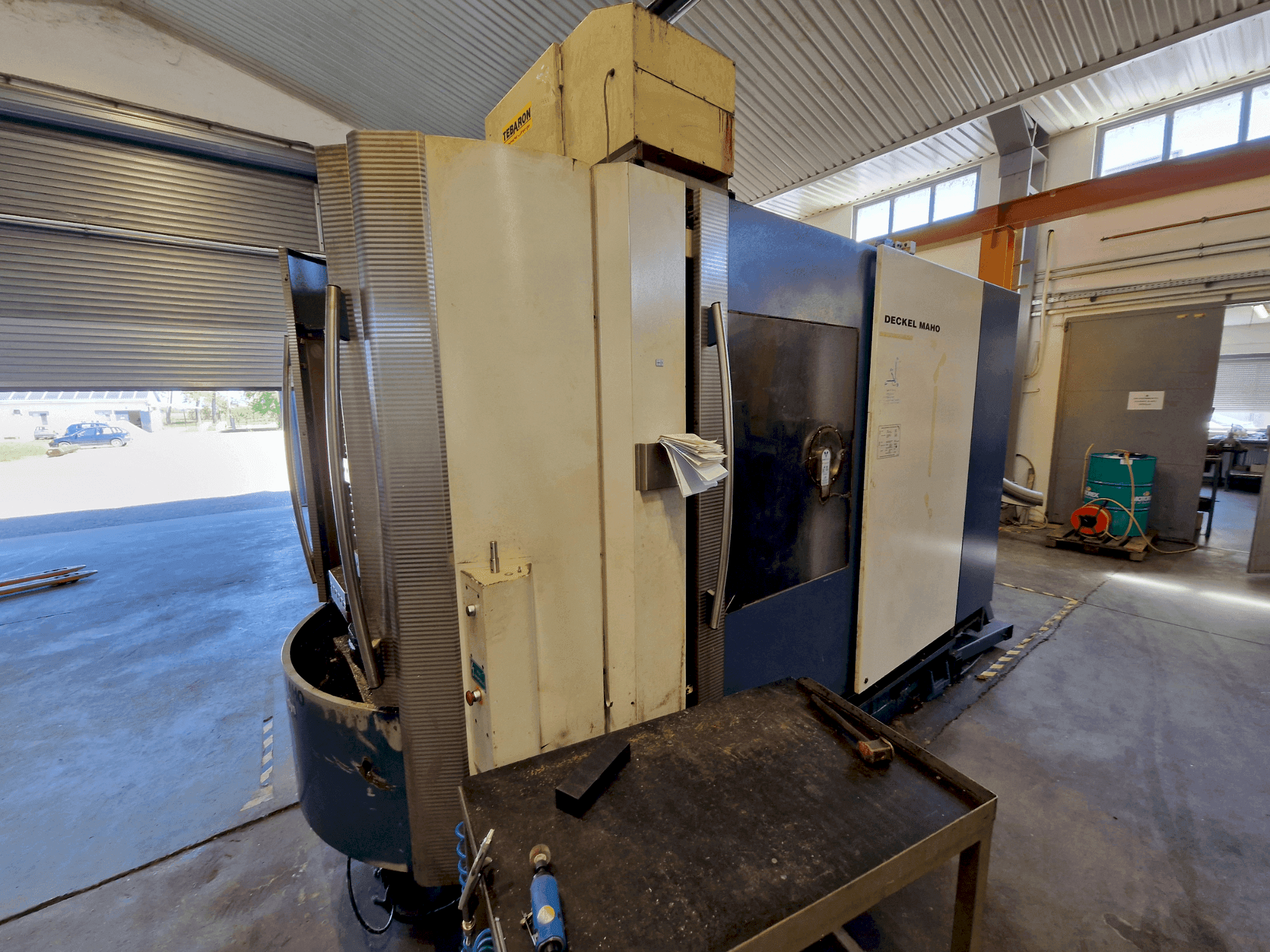

Front view of DECKEL MAHO DMC 60 H Hy Din  machine

DECKEL MAHO - DMC 60 H Hy DinHU-MIL-DEC-2001-00003

11,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis DECKEL MAHO DMC 60 H Hy Din horizontal machining center was manufactured in 2001. It features a robust direct drive motor with speeds up to 15,000 rpm and a torque of up to 191 Nm. The machine includes a versatile tool magazine with capacities ranging from 40 to 180 tools and a maximum tool weight of 12 kg. Ideal for complex machining tasks, the DECKEL MAHO DMC 60 H Hy Din machine we have for sale. Contact us for further details.

Overview

  • brand: DECKEL MAHO
  • year: 2001
  • MODEL: DMC 60 H Hy Din
  • production hours: 28815
  • application type: Milling
  • Location: Hungary
  • machine type: Horizontal Machining Centre
  • availability: Immediately

Technical Information - DECKEL MAHO DMC 60 H Hy Din

Main drive

  • Spindle speed range: 8000 (standard), 15000 (optional) 1/MIN
  • Spindle motor power: 13 kW (S1), 20 kW (S6)
  • Tool taper: SK 40, HSK 63

Movement

  • X-AXIS Movement: 600 mm
  • Y-AXIS Movement: 560 mm
  • Z-AXIS Movement: 560 mm
  • AXIS 1 Movement: 360 °

Table

  • Outer length: 400 MM
  • Outer width: 500 MM
  • TSlots size: x 14H12 mm
  • Table load: 350/600 kg

    Additional Equipment

    • - Multiple tool magazine options
    • - Advanced tool handling and balancing features
    • - High-precision measurement system
    • - Efficient internal coolant supply (optional)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Torque: 124 nm (s1), 191 nm (s6)
        • - Speed max. : 25. 7 rpm
        • - Pallet clamping force: 80,000 n
        • - Tilting moment max. : 8000 nm
        • - Tangential moment (clamped max. ): 6000 nm
        • - Tangential moment (released max. ): 2600 nm
        • - Number of pallets: 2
        • - Guide slot (number x width): 1 x 14h7 mm
        • - Precision movement: infinitely programmable feed speeds ensure precise control.
        • - Tool handling versatility: various tool magazine configurations cater to extensive tooling needs.
      • Qualitative Machine Benefits:
        • - Tool balancing: meets din iso 1940 standards for reduced vibration and increased precision.
        • - Coolant system: optional internal coolant setup enhances tool performance and longevity.
        • - Accurate measurement: high-resolution systems ensure precise machining results.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
