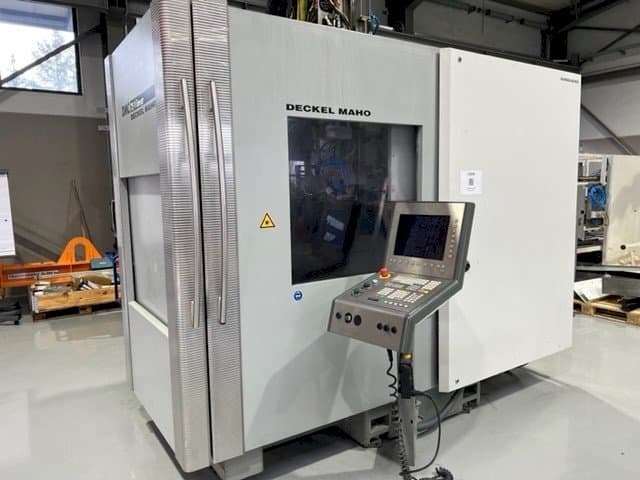

Front view of DECKEL MAHO DMC 75 V linear  machine

DECKEL MAHO DMC 75 V linear

DECKEL MAHO - DMC 75 V linear

2006

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DECKEL MAHO DMC 75 V linear machine center was made in the year 2006 in Germany and has 55043 hours, of which 23747 are spindle hours. It is controlled by a Siemens 840D Powerline control unit and has 5 axis simultaneously. The machine has a spindle speed of 28000 rpm and the machine is completely serviced and in very good condition.

Overview

  • brand: DECKEL MAHO
  • year: 2006
  • MODEL: DMC 75 V linear
  • production hours: 55043
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: Sold
  • control unit brand: Siemens
  • GINDUMAC ID: DE-MIL-DEC-2006-00003

Technical Information

General Data

  • Measurements width: 4500 mm
  • Measurements depth: 3300 mm
  • Measurements height: 3180 mm
  • Machine weight: 10000 kg

Control Unit

  • Brand: Siemens
  • Model: 840D Powerline

Main drive

  • Spindle speed range: 28000 1/MIN
  • Number of axis: 5 axis simultaneous

Movement

  • X-AXIS Movement: 750 mm
  • X-AXIS Rapid traverse: 90 m/min
  • Y-AXIS Movement: 600 mm
  • Y-AXIS Rapid traverse: 90 m/min
  • Z-AXIS Movement: 560 mm
  • Z-AXIS Rapid traverse: 90 m/min
  • B-AXIS Movement: controlled B-axis: -10° to +110° controlled MM
  • C-AXIS Movement: 360 ° MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Motor spindle 28. 000 rpm / hsk 63 (overhauled) - automatic tool changer
      • - Handwheel
      • - Operating mode 4
      • - Heidenhain measuring probe
      • - Belt filter system with ikz
      • - Chip conveyor
      • - Number of magazine places: 30
      • - Nc rotary table clamping surface d 750 mm
      • - Full cab
      • - Nc swivel head
    • Qualitative Machine Benefits:
      • - Machine completely serviced and in very good condition
      • - Kessler motor spindle overhauled by manufacturer
      • - Coolant device
      • - Documentation
      • - Rotoclear
      • - Rinsing gun

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
