- DECKEL MAHO DMU 50 Vertical Machine Center

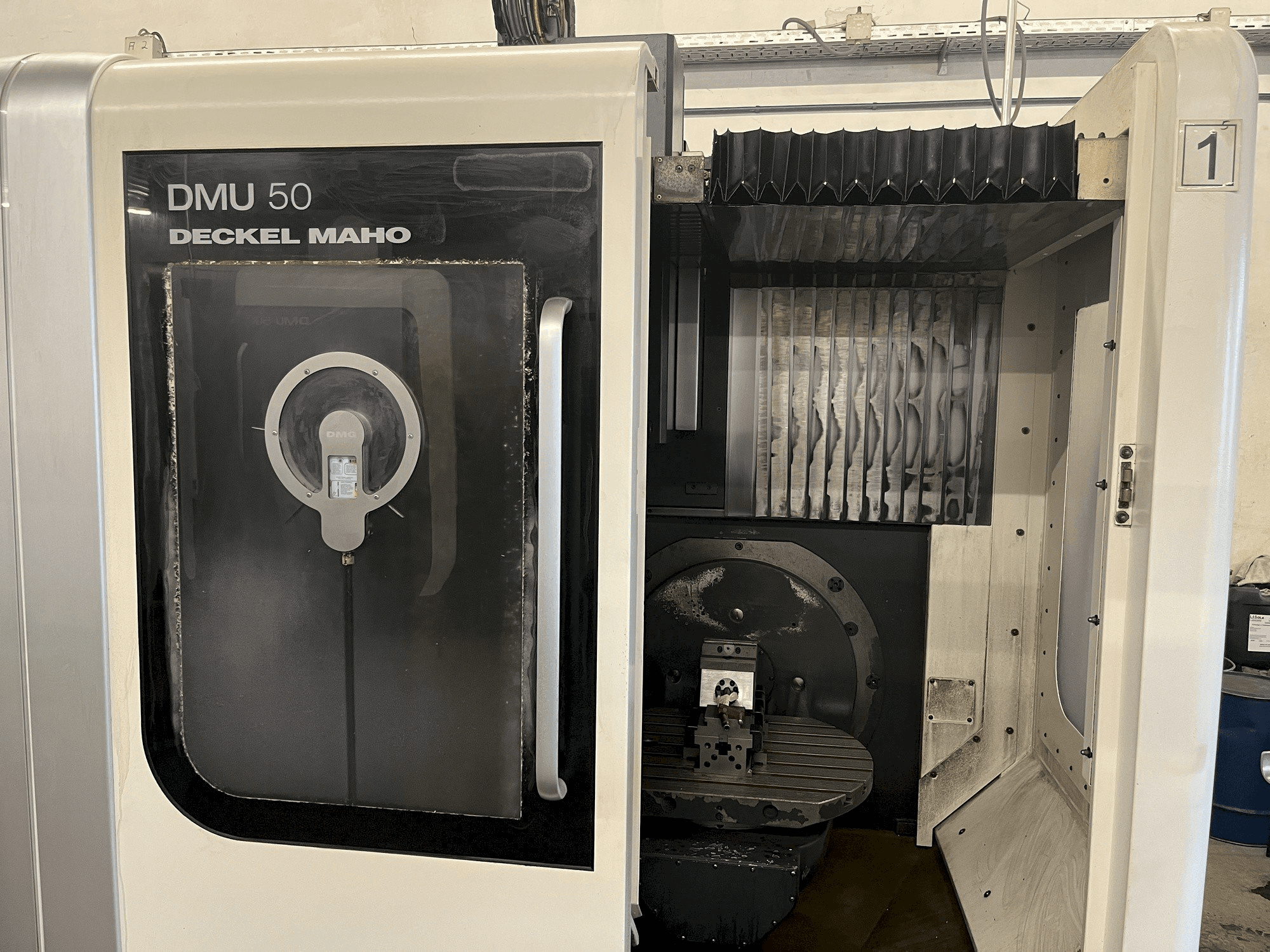

This DECKEL MAHO DMU 50 Vertical Machine Center was made in the year 2011 and has 10914 hours. It is equipped with a 3D Heidenhain iTNC 530 control unit and has 3+2 axis. The machine has a spindle speed of 20 - 10000 rpm.
Overview
- brand: DECKEL MAHO
- year: 2011
- MODEL: DMU 50
- production hours: 10914
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
Technical Information - DECKEL MAHO DMU 50
Control Unit
- Brand: Heidenhain
- Model: iTNC 530
Main drive
- Spindle speed range: 20 - 10000 1/MIN
- Spindle motor power: 13/9 kW (40/100 \ EO)
- Tool taper: SK 40 according to DIN 69871
- Number of axis: 3+2
Movement
- X-AXIS Movement: 500 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 450 mm
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 400 mm
- Z-AXIS Rapid traverse: 24 m/min
Table
- Table load: 200 kg
Additional Information
- Technical Machine Benefits:
- - Tool clamping according to din 69872, semi-cabin
- - Swivel rotary table with digital drives
- - Only positioning operation possible
- - Nc dividing head not possible
- - Inclusive automatic hydraulic clamping, electronic angle
- - Angle display and plane transformation
- - Tool magazine 30 places sk40
- - Vertical chain with double gripper
- - Including set-up aid for tool loading
- - Infrared measuring probe
- Qualitative Machine Benefits:
- - Internal cooling lubricant supply (ikz)
- - Paper belt filter 20bar/40l/min/tank 6001 incl. Cabin
- - Roof, rotary feed-through in spindle, rotating
- - Electronic handwheel
- - Screen text german/english
- - Inspection window
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
