DEMAG - 420/810 - 2300 (2002)CZ-INJ-DEM-2002-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used DEMAG 420/810 - 2300 (2002) For Sale | gindumac.com

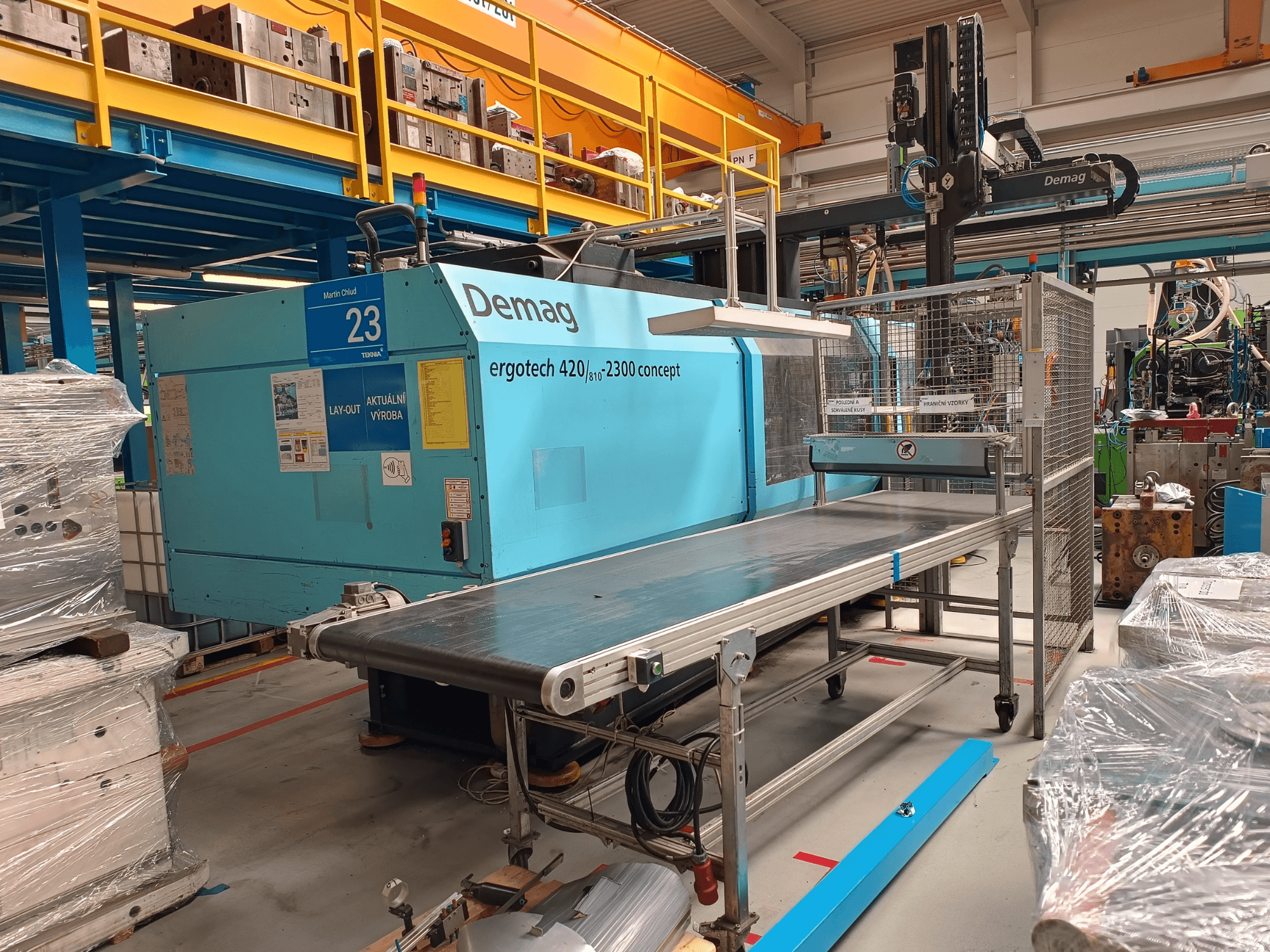

Hydraulic injection moulding machine manufactured in 2002. This DEMAG 420/810 - 2300 features a clamping force of 420 tons and a maximum mold height of 1530 mm. It has a screw diameter of 70 mm and a shot volume of 1090 cm³. If you are looking to get high-quality injection moulding capabilities, consider the DEMAG 420/810 - 2300 machine we have for sale. Contact us for further details.
Overview
- brand: DEMAG
- year: 2002
- MODEL: 420/810 - 2300 (2002)
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
- control unit brand:
Technical Information - DEMAG 420/810 - 2300 (2002)
Technical Specification
- Clamping Force: 4200 kN
- Screw Diameter: 70 mm
Additional Information
Tie bar spacing (W × H): 810 × 710 mm
Magnetic clamping: No
Min. platen size (W × H): 380
Min. mold height: 820 mm
Max. mold height: 1530 mm
Max. distance between platens: 1530
Max. weight of moving mold half: 2200 kg
Centering ring diameter/height: 160 × 15
Sprue bushing radius: R19
Ejector coupling thread diameter: M24
Shot volume: 1090 cm³
Hot runners: 8
Cascades air (number): 6
Cascades hydraulics (number): 6
Hydraulic core pulls: 2
Capacity oil fillings: 730
Power supply: 217 A
Power input: 127.5 kW
Additional equipment
Robot: Demag, year of manufacture 2002
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
