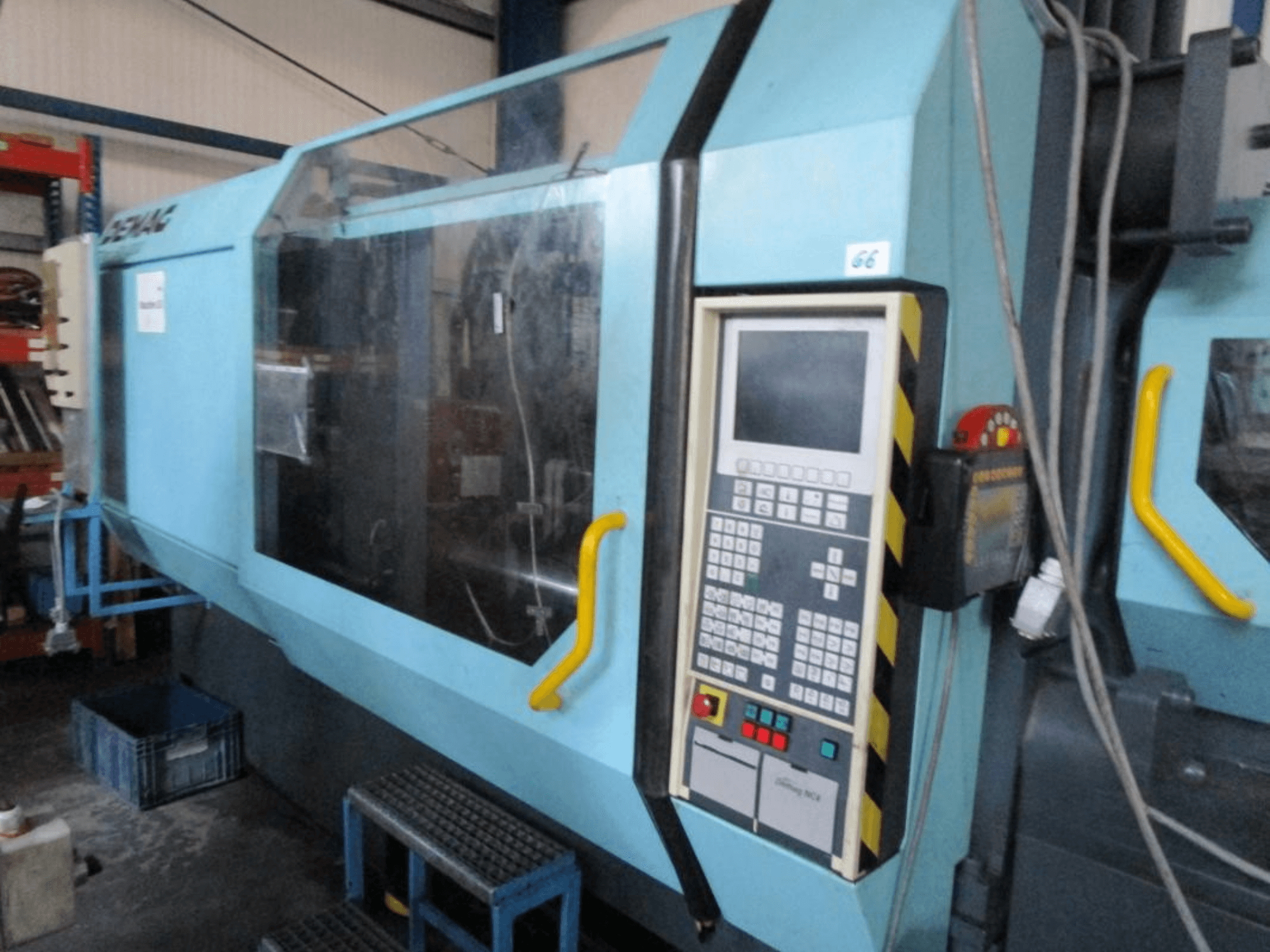

This 3-axis DEMAG Erdotech 500-3300 hydraulic injection moulding machine was manufactured in 2005. It features a screw diameter of 70 mm and a shot weight of 1,230 g. The machine has a maximum daylight of 1,450 mm and includes a handling system with a Wittmann linear robot. If you are looking to get high-quality injection moulding capabilities, consider the DEMAG Erdotech 500-3300 machine we have for sale. Contact us for further details.
Overview
- brand: DEMAG
- year: 2005
- MODEL: Erdotech 500-3300
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - DEMAG Erdotech 500-3300
Technical Specification
- Clamping Force: 5000 kN
- Max. Shot Weight: 1230 g
- Screw Diameter: 70 mm
Additional Information
Distance between tie bars: 900 mm
Min. mould installation height: 400 mm
Max. daylight (distance between platens): 1,450 mm
Centering ring: 160 mm
Core pull: 2-circuit core pull control (plus 1 extra core pull mentioned)
Control system: Demag NC4
Additional equipment
Handling unit: Wittmann linear robot, 3 axes (X/Y/Z linear)
Granule feeder: Wittmann, Typ VITMAX A312-Y (24 V, 1 A)
Hot runner controller: Gammaflux, Typ GM1G030F012S4EJ
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
