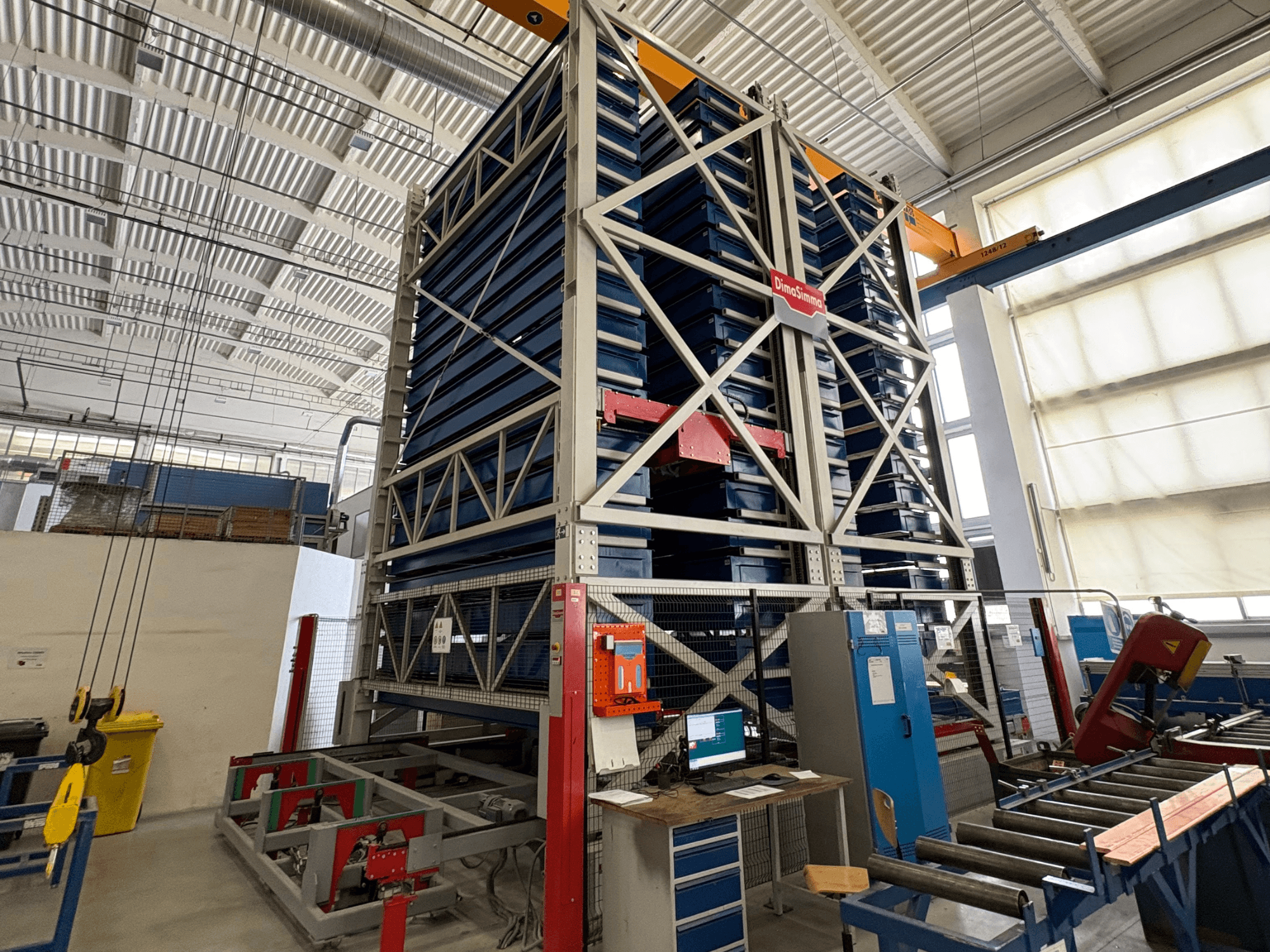

DimaSimma EMS-30 TWIN was manufactured in 2013. It features a maximum lifting weight of 3,350 kg and a vertical movement speed ranging from 3 to 10 m/min. The system includes two towers with racks for 80 containers, each with a maximum load capacity of 3,000 kg. If you are looking to get high-quality material handling capabilities, consider the DimaSimma EMS-30 TWIN machine we have for sale. Contact us for further details.
Overview
- brand: DimaSimma
- year: 2013
- MODEL: EMS-30 TWIN
- application type: Other Sheet Metal Machinery
- Location: Czech Republic
- machine type: Sheet Metal Machine
- control unit brand:
Technical Information - DimaSimma EMS-30 TWIN
Dimensions
- Machine Height: 8500 mm
- Machine Length: 5300 mm
- Machine Width: 6000 mm
- Table Load: 3000 kg
Additional Information
Performance
Max. lifting weight: 3 350 kg
Vertical movement speed: 3–10 m/min
Horizontal movement speed: 3–10 m/min
Electrical supply: 220–400 V / 3F / 50 Hz
Max. power consumption: 30 kW
Containers
Quantity: 80 pieces (on 2 towers)
Usable dimensions: 4 250 × 720 × 250 mm
Design: closed sides, open bottom
Construction
2 towers with racks (total of 80 containers)
A lifting unit (elevating unit) moves along the vertical axis in each tower
Lifting gearbox located at the bottom
Material movement
Vertical movement: up and down
Horizontal movement: container extraction/insertion
Work stations
1 loading and 1 unloading station, opposite each other
Additional equipment
WMS software: Elephant Manager (product identification, inventory and minimum stock management, order-based issue control, material entry date tracking)
PC control: 2 computers for operation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
