➤ Used DMG DMC 635 V For Sale | gindumac.com

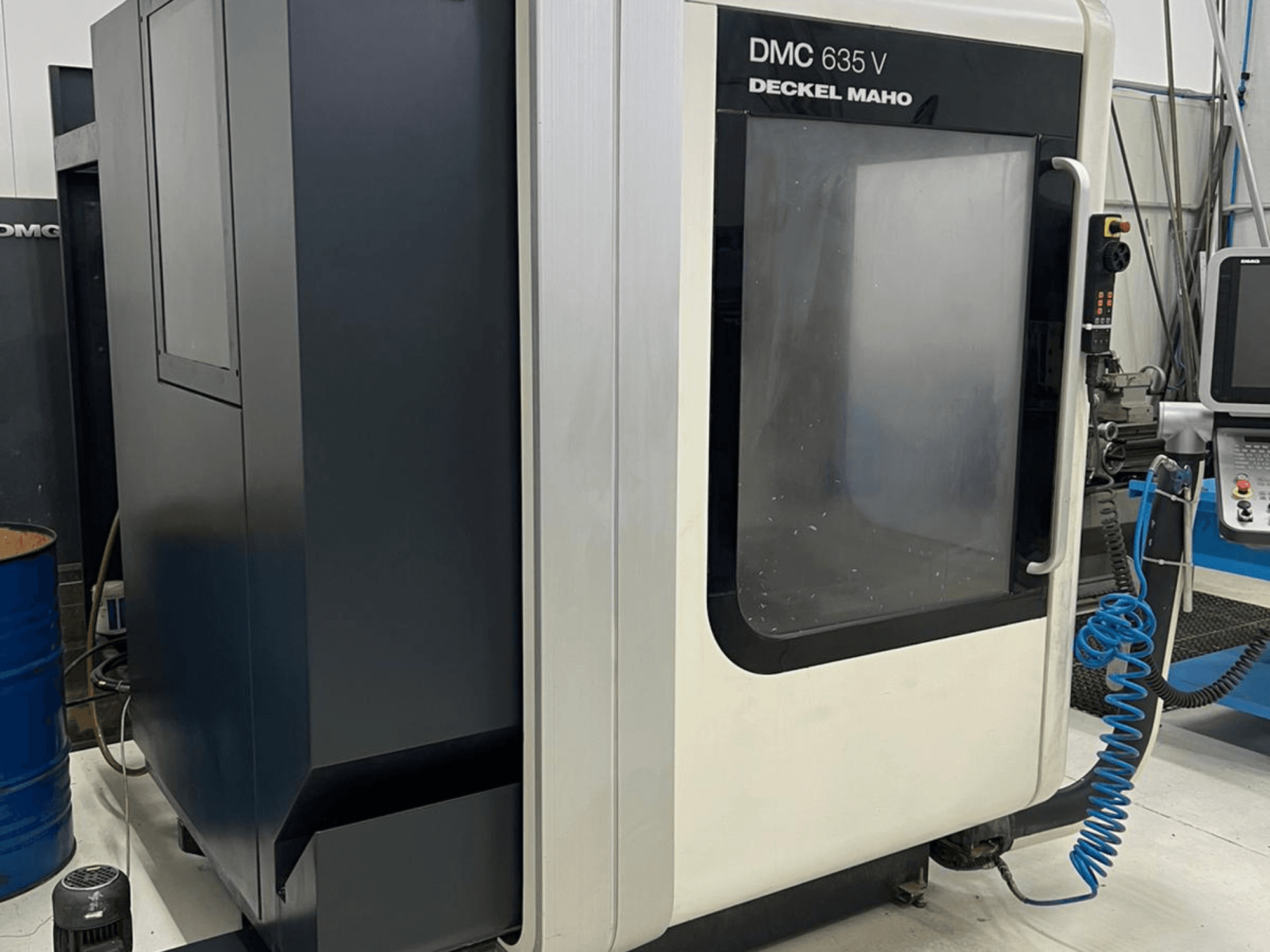

This 3s DMG DMC 635 V vertical machining centre was manufactured in 2008. It features a maximum spindle speed of 14,000 rpm and a powerful spindle with 18.5 kW. The machine has a working area with a table dimension of 560 × 790 mm and can handle workpieces weighing up to 600 kg. If you are looking to get high-quality machining capabilities, consider the DMG DMC 635 V machine we have for sale. Contact us for further details.

Overview

brand: DMG
year: 2008
MODEL: DMC 635 V
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - DMG DMC 635 V

Dimensions

Machine Height: 2670 mm
Machine Length: 2275 mm
Machine Width: 3288 mm

Movement

Number of Axes: 3
X-axis Travel: 635 mm
Y-axis Travel: 510 mm
Z-axis Travel: 460 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 14000 RPM
Taper Size: SK 40

Additional Information

Distance table surface / spindle nose: 720 mm

Working area
- Number of pallets: 1
- Table dimensions: 560 × 790 mm
- Maximum workpiece weight: 600 kg
Spindle
- Maximum torque: 100 / 74 Nm
Tool magazine
- Tool holder: SK40
- Tool magazine positions: 20
- With adjacent tool positions free: 130 mm
- With adjacent tool positions occupied: 80 mm
- Maximum tool length: 300 mm
- Tool change time: 1.6 s
- Chip-to-chip tool change time: 6 s
Equipment / features
- Electronic handwheel
- Air flow through the spindle activated via M function
Working time
- Power on: 34,484 h
- Spindle running: 25,110 h
Rated power: 35 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
