- ➤ Used DMG Sauer Ultrasonic 10 + PH 2 | 120 | Machining

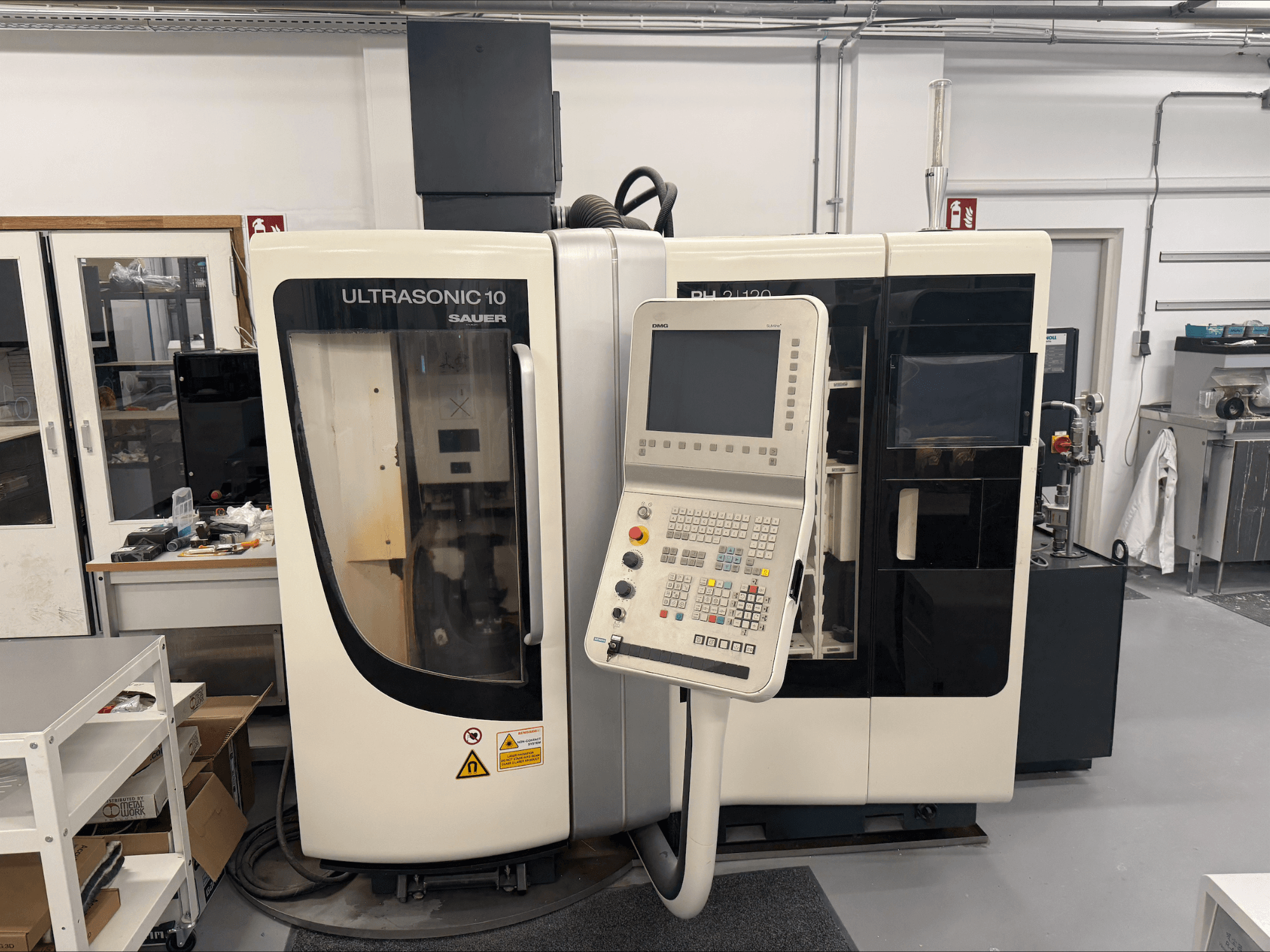

This 5-axis DMG Sauer Ultrasonic 10 + PH 2 | 120 was manufactured in 2009. It features a main drive speed of 40,000 rpm and an output performance of 6 kW. The machine operates efficiently with a cooling system and has a protection type of IP 54. If you are looking to get high-quality ultrasonic machining capabilities, consider the DMG Sauer Ultrasonic 10 + PH 2 | 120 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2009
- MODEL: Sauer Ultrasonic 10 + PH 2 | 120
- production hours: 16616
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
Technical Information - DMG Sauer Ultrasonic 10 + PH 2 | 120
Movement
- Number of Axes: 5
- X-axis Travel: 120 mm
Technical Specification
- Spindle Speed: 36000 RPM
Additional Information
Manufacturer: SAUER GmbH Ultrasonic
Component: Main Drive, 40,000 rpm
Operational mode: S1
Speed 1: 36,000 rpm
Speed 2: 42,000 rpm
Output performance 1: 6 kW
Output performance 2: 6 kW
Torque 1: 1.7 Nm
Torque 2: 1.3 Nm
Voltage 1: 400 V
Voltage 2: 420 V
Current 1: 10 A
Current 2: 9 A
Frequency 1: 1,200 Hz
Frequency 2: 1,400 Hz
Connection: Star
Protection type: IP54
Vibration quality: < 1 mm/s
Cooling: Water
Rotor moment of inertia: 0.000252 kg·m²
Insulation class: F
Connection diagram: 635
Max. ambient temperature: 40 °C
Thermal protection: KTY 84-130 and PTC
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
