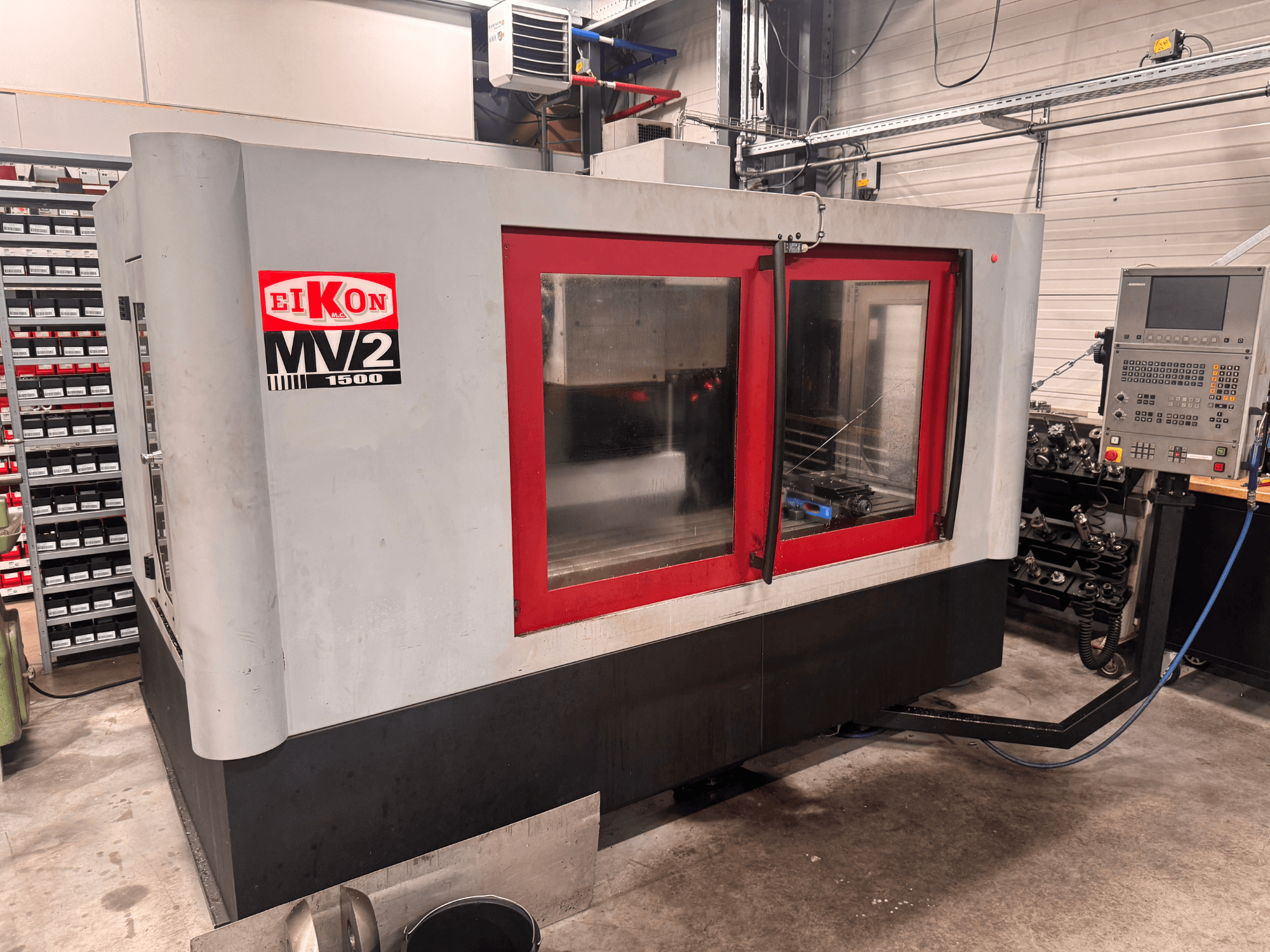

Eikon MV2 vertical machining center in a workshop, front view with red accents and control panel visible on the side.
Eikon MV2 vertical machining center in a workshop, front view with red accents and control panel visible on the side.

Eikon - MV2NL-MIL-EIK-2003-00001

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Eikon MV2 was manufactured in 2003. It features an impressive X-axis travel of 1500 mm, Y-axis travel of 300 mm, and Z-axis travel of 350 mm. The machine is equipped with an automatic tool changer with 20 positions and a maximum tool diameter of 80 mm. If you are looking to get high-quality machining capabilities, consider the Eikon MV2 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Eikon
  • year: 2003
  • MODEL: MV2
  • application type: Milling
  • Location: Netherlands
  • machine type: Vertical Machining Centre
  • Available from: 31/08/2026
  • control unit brand: HEIDENHAIN

Technical Information - Eikon MV2

Control Unit

  • Control Brand: HEIDENHAIN

Dimensions

  • Machine Height: 2300 mm
  • Machine Length: 2900 mm
  • Machine Weight: 3200 kg
  • Machine Width: 3250 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1500 mm
  • Y-axis Travel: 300 mm
  • Z-axis Travel: 350 mm

Technical Specification

  • Spindle Speed: 8000 RPM

Additional Information

  • Number of tool slots: 20 (one is defect)

  • Max tool length: 200 mm

  • Height adjustment: 860 mm

  • Rapid Traverse: 50 m/min

  • Main electronic connection: 380 V / 50 Hz / 3-Phase

  • Power consumption: Approx. 12 kW

  • Air pressure: 6 bar

  • Chip conveyor: Length with chip conveyor: Approx. 3,200 mm

  • Internal cooling: Integrated air cooling system

  • Air supply: Average air consumption: 3 m³/h

  • Spindle nose: DIN 2079-40

  • Optional spindle speeds: 12,000 rpm or 20,000 rpm

  • Electronic spindle orientation

  • Feed rate: 1 – 15,000 mm/min

  • Absolute rotary serial encoders

  • Programming resolution: 1 μm

  • Z-axis equipped with safety brake

  • Maximum tool diameter: 80 mm

  • Maximum tool weight: 3 kg

  • Tool-to-tool change time: 2 seconds

  • Minimum spindle-to-table distance: 145 mm

  • Coolant tank capacity: Approx. 200 litres

  • Coolant pump capacity: 50 l/min

  • Coolant wash gun

  • Length with chip conveyor: Approx. 3,200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
