- ➤ Used FomIndustrie DALI 70 For Sale | gindumac.com

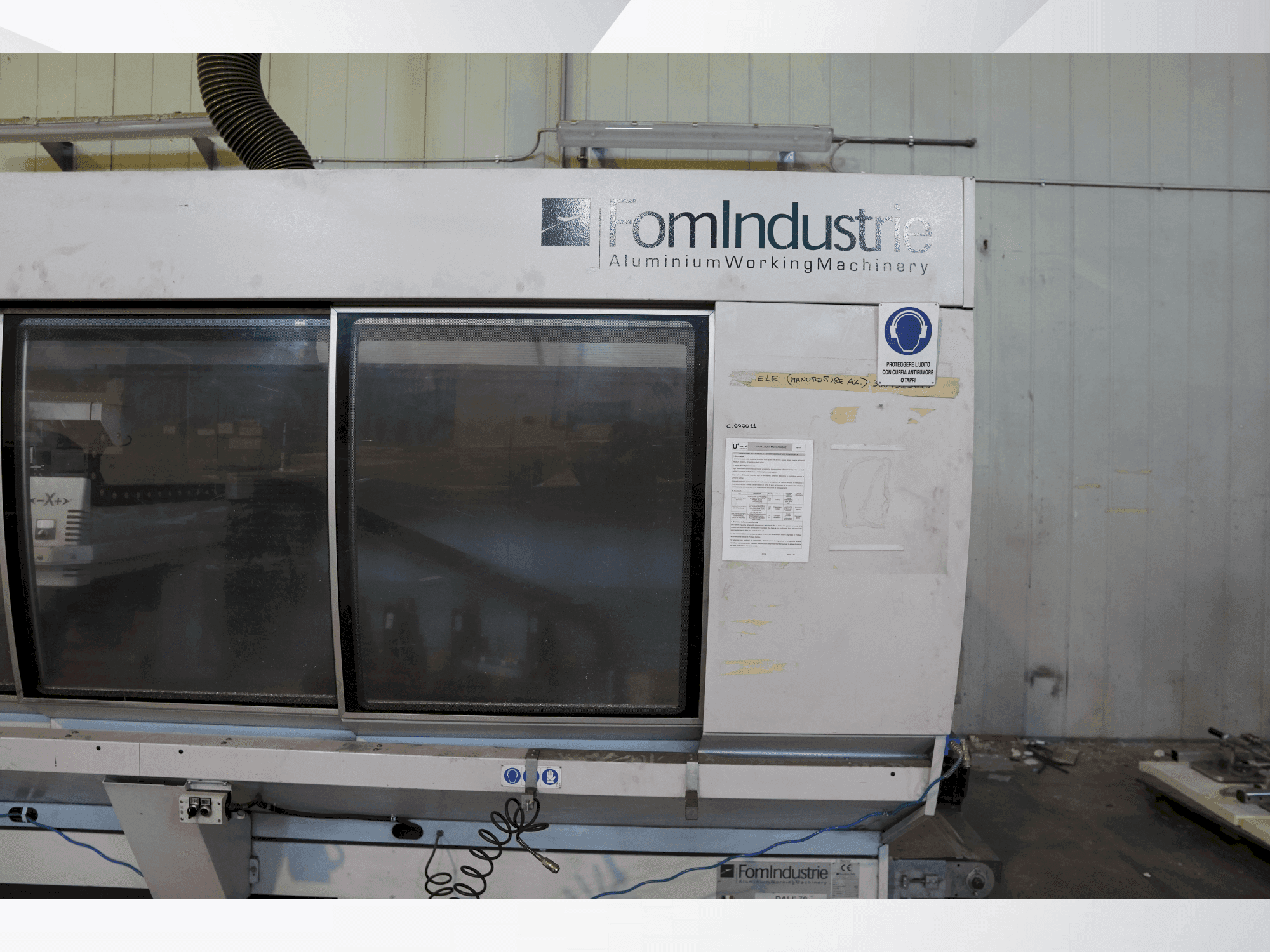

This 4-axis FomIndustrie DALI 70 vertical machining centre was manufactured in 2008. Ideal for intricate machining tasks, it offers precision and versatility in a robust design. Consider the opportunity to buy this FomIndustrie DALI 70 vertical machining centre. Contact us for more information.
Overview
- brand: FomIndustrie
- year: 2008
- MODEL: DALI 70
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- availability: Immediately
Technical Information - FomIndustrie DALI 70
General Data
- Measurements width: 2051 mm
- Measurements depth: 8675 mm
- Measurements height: 2341 mm
- Machine weight: 4200 kg
Movement
- X-AXIS Movement: 7270 MM
- Y-AXIS Movement: 1040 MM
- Z-AXIS Movement: 430 MM
- A-AXIS Movement: -15° / 195° MM
Additional Equipment
- - Number of tools: 7
- - Tool change time (chip to chip): 14 s
- - Max tool weight: 5 kg /Max tool length: 100 mm/ Max tool diameter (cylindrical milling cutter): 50 mm/ Max tool diameter (disk milling cutter): 115 mm
Additional Information
- Technical Machine Benefits:
- - Working capacity: x axis (longitudinal working area): 7000 mm /y axis (transversal working area with electrospindle at 0°): 200 mm/ y axis (transversal working area with electrospindle at 90°/180°): 220 mm/ z axis (vertical working area): 200 mm // axis movement: x axis (rapid traverse): 90 m/min, acceleration: 4 m/s²/ y axis (rapid traverse): 30 m/min, acceleration: 2 m/s²/ z axis (rapid traverse): 13 m/min, acceleration: 0. 6 m/s² /a axis (electrospindle rotation speed): 180°/s
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
