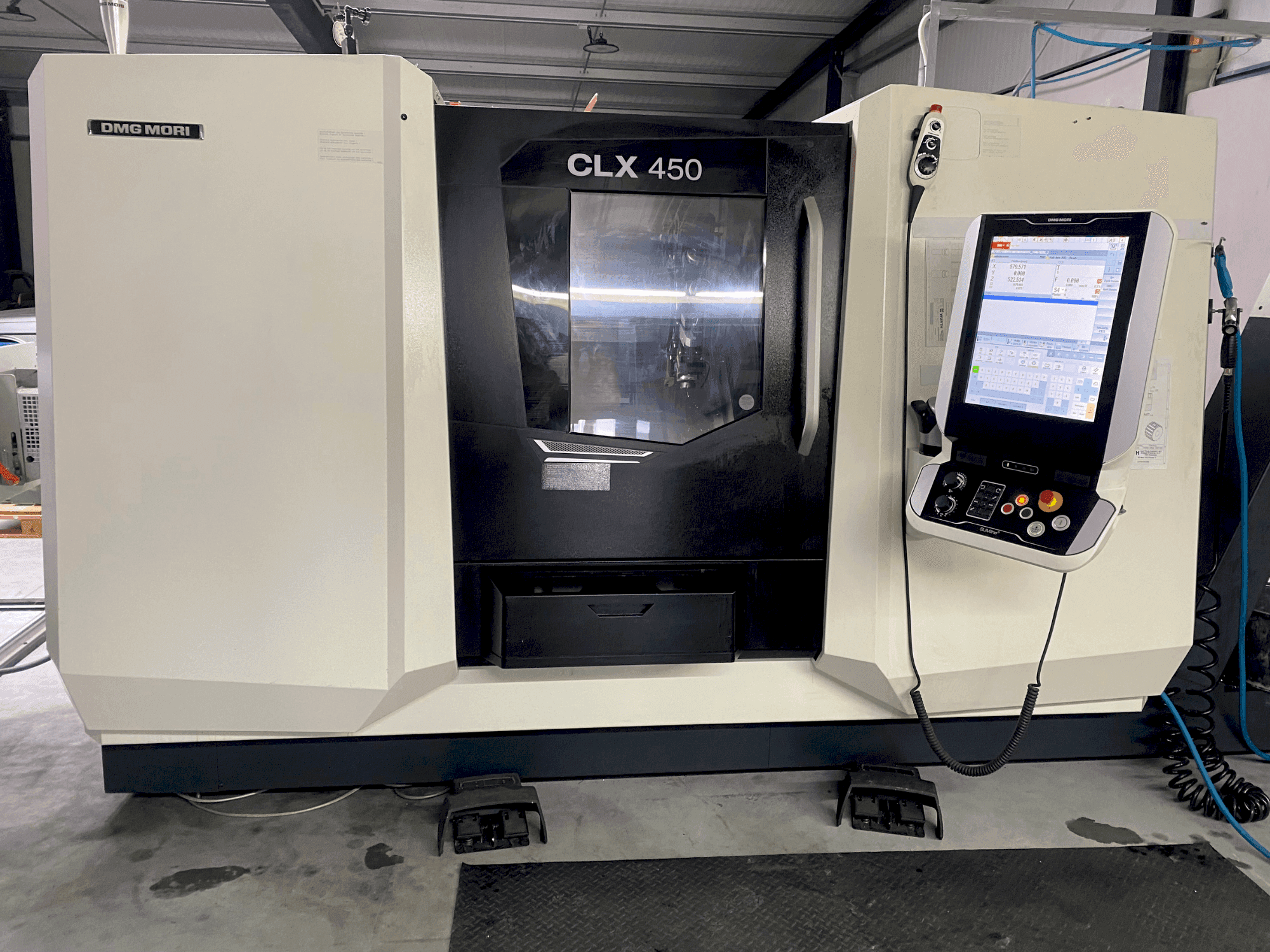

Front view of DMG MORI CLX 450 V6  machine

DMG MORI - CLX 450 V6DE-TUR-DMG-2019-00002

158,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG MORI CLX 450 V6 Lathe was manufactured in the year 2019 and has 3200 spindle hours. The machine disposes of a main spindle and a counter spindle. This machine is equipped with a SIEMENS control.

Overview

  • brand: DMG MORI
  • year: 2019
  • MODEL: CLX 450 V6
  • production hours: 3200
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - DMG MORI CLX 450 V6

Control Unit

  • Brand: SIEMENS

Main drive

  • Number of spindles: 2
  • Spindle speed range: 4000 1/MIN
  • Spindle motor power: 25.5 kW

Movement

  • X-AXIS Movement: 276 MM
  • Y-AXIS Movement: 830 MM
  • Z-AXIS Movement: +/- 60 MM

    Additional Equipment

    • - Optional equipment available: Driven tools / Driven tool holders
    • - Turning inserts for all positions and designs
    • - some indexable insert drills, solid carbide drills and other consumables.
    • - Hainbuch clamping head chuck, Spanntop MINI Axzug SK65 plus matching clamping heads

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle: a2-8" with ac motor, chuck flushing for the main spindle, highly dynamic spindle drive with 25. 5 kw, 426 nm (at 40% ed) and 4000 rpm, 3200 spindle hours
        • - Counter spindle a2-6", designed as motor spindle ism 52 14 kw(at 40% ed) and 5000 rpm, external chuck flushing for the counter spindle, tailstock function, adjustable thrust force during cycle: 1. 5-6. 0 kn
        • - Optional y-axis +/- 60mm and counter spindle for excellent turning / milling, chip tray
        • - Hollow clamping device, bar passage diameter 80mm as standard and turret with 12 tool stations vdi40 + 6 bt stations, workpiece pick-up device for parts up to d80x200mm and a max. Weight of 4kg
        • - 12 bar / coolant system: high-pressure pump 12 bar, double cartridge filter for cooling lubricant, coolant spray gun 5 bar, mechanical oil mist separator type afs 600
        • - Manual tool measuring device in the work area, make marposs
        • - Alternating speed technology cycle
        • - Digitalization products dmg mori connectivity: digital manufacturing package iotconnector, machine data connector (mdc), netservice please note: bar feeder included, optional: jaws, hainbuch clamping system main spindle, driven tools, tool holders
        • - Spindle speed: counter spindle: 5. 000 rpm, main spindle 4. 000 rpm
      • Qualitative Machine Benefits:
        • - 3d control technology with dmg mori multi-touch 19" control panel for siemens 840d and shop turn or fanuc i-series cnc with 19" screen and manual guide
        • - The machine currently has 2789 spindle hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
