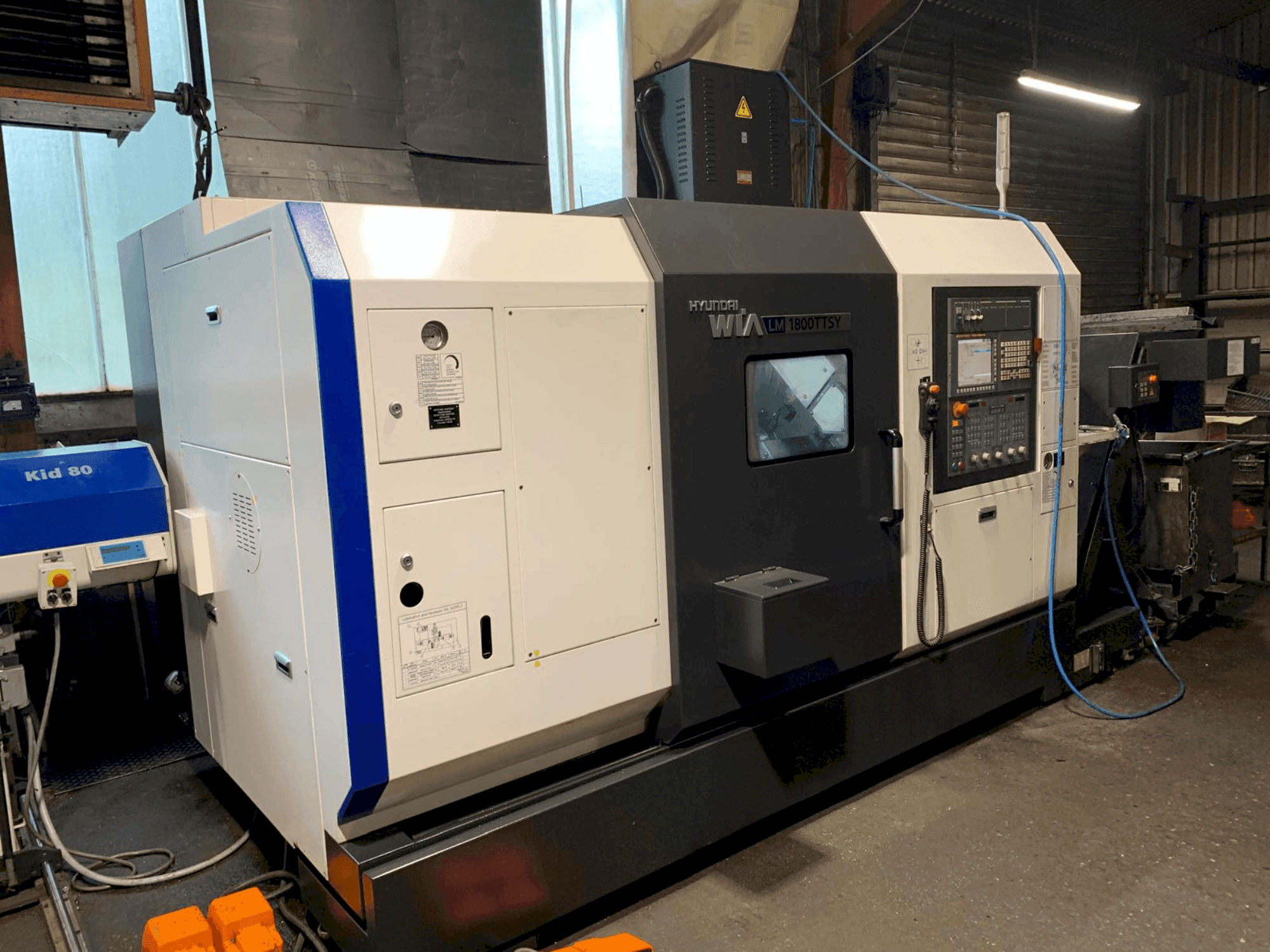

Hyundai Wia - LM 1800TTSYDE-TUR-HYU-2021-00001

Additional Equipment

• - USB interface
• - Three-colour signal light
• - 1 set of soft jaws
• - CHIP CONVEYOR HS with lateral ejection
• - Transformer incl. cable
• - Manual compressed air gun
• - Bar feeder interface // Bar loader interface
• - Parts catcher main spindle
• - Parts unloader: Parts unloading system for the counter spindle incl. parts conveyor belt
• - Workpiece ejector / Workpiece drm: 230 mm / Workpiece X: 673 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Linear (z) and flat-guided (x/y) 45 degree
  • - Turning Ø: 230 mm // turning length: 673 mm
  • - Chuck size both spindles: 8 inch (~210 mm)
  • - Turret c-axis, 0. 001° // turret y-axis, +- 50 mm - upper turret
  • - Driven tools: 5000 rpm, 5. 5 kw
  • - 1 x axially driven tools // 1 x radial driven tools
  • - Automatic tool probe
  • - Coolant tank 270 litres // standard coolant nozzle
  • - Internal cooling 30 bar
  • - 30 bar coolant pump (60hz)

Extra information

• - Strongly reduced interference contour Better workpiece accessibility Workpiece stabilization through axial pull against workpiece stop Chuck Type: SPANNTOP mini Chuck Model: Axzug Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Short Taper Size: Size 6 Length of Clamping Device: 155.00 mm Frontal Diameter: 111.00 mm Maximum Outer Diameter: 165.00 mm Clamping Position: 65.00 mm Clamping Device Thread: M102x1.5 Basic Stop Design: Clamped Actuation Type: Power-actuated Additional Chuck Options: Yes Front Stop Mounting: Yes Balance Quality: 4.0 Pull Tube Adapter according to Drawing For Clamping Device [ZCHN]: A054288.0009C Connection [of Clamping Device]: Internal Thread Clamping Device Thread Designation: M102x1.5 Clamping Device Thread Length: 17.00 mm Thread Position Clamping Device: 65.00 mm Maximum Actuation Force: 65.00 kN Machine Manufacturer: Hyundai WIA Machine Designation: LM1800TTSY-HSP Connection [of Pull Tube]: External Thread Thread Designation: M74x1.5 Thread Length: 40.00 mm Front Position Pull Tube: 57.50 mm Stroke of Clamping Cylinder: 17.50 mm Spindle Bore Diameter: 76.00 mm Pull Tube Inner Diameter: 66.00 mm SPANNTOP mini Axfix 65 KK6 Chuck Type: SPANNTOP mini Chuck Model: Axfix Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Short Taper Size: Size 6 huck Type: SPANNTOP mini Chuck Model: Axfix Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Short Taper Size: Size 6 Length of Clamping Device: 138.00 mm Frontal Diameter: 119.00 mm Maximum Outer Diameter: 167.00 mm Clamping Position: 50.00 mm Clamping Device Thread: M94x1.5 Basic Stop Design: Clamped Actuation Type: Power-actuated Additional Chuck Options: Yes Front Stop Mounting: Yes Balance Quality: 4.0 Pull Tube Adapter according to Drawing For Clamping Device [ZCHN]: A071618.0004C Connection [of Clamping Device]: Internal Thread Clamping Device Thread Designation: M94x1.5 Clamping Device Thread Length: 17.00 mm Thread Position Clamping Device: 50.00 mm Maximum Actuation Force: 45.00 kN Machine Manufacturer: Hyundai WIA Machine Designation: LM1800TTSY-GSP Connection [of Pull Tube]: External Thread Thread Designation: M74x1.5 Thread Length: 40.00 mm Front Position Pull Tube: 57.50 mm Stroke of Clamping Cylinder: 17.50 mm Spindle Bore Diameter: 76.00 mm Pull Tube Inner Diameter: 66.00 mm
